Clutch Start Switch - Modification

90lexus05 TRANSMISSION & CLUTCH 010 12-21-90 ES250
Title CLUTCH START SWITCH

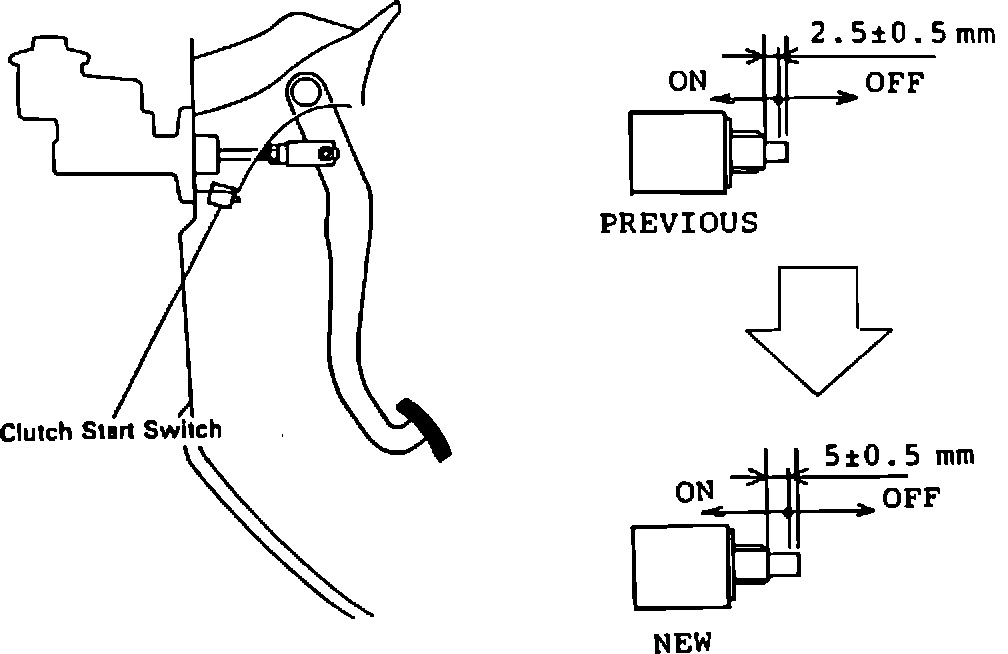

To reduce the length of travel required of the clutch pedal to engage the clutch start switch for engine starting, the clutch start switch has been modified as shown below:
PRODUCTION EFFECTIVE:

Starting VIN P/D
JT8VV2 # E # L0117263 4/90
JT8VV2 # e # L3012126 4/90


PART NUMBER INFORMATION:

PREV. Part No. NEW Part No. Part Name Models
84520-32020 84520-32021 Switch Assy., ES250

Clutch Start
