Home >> Lexus >> 1990 >> ES 250 V6-2.5L (2VZ-FE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Testing and Inspection >> Wheel Speed Sensor On-Board Diagnostics >> Diagnostic Codes Identification Charts

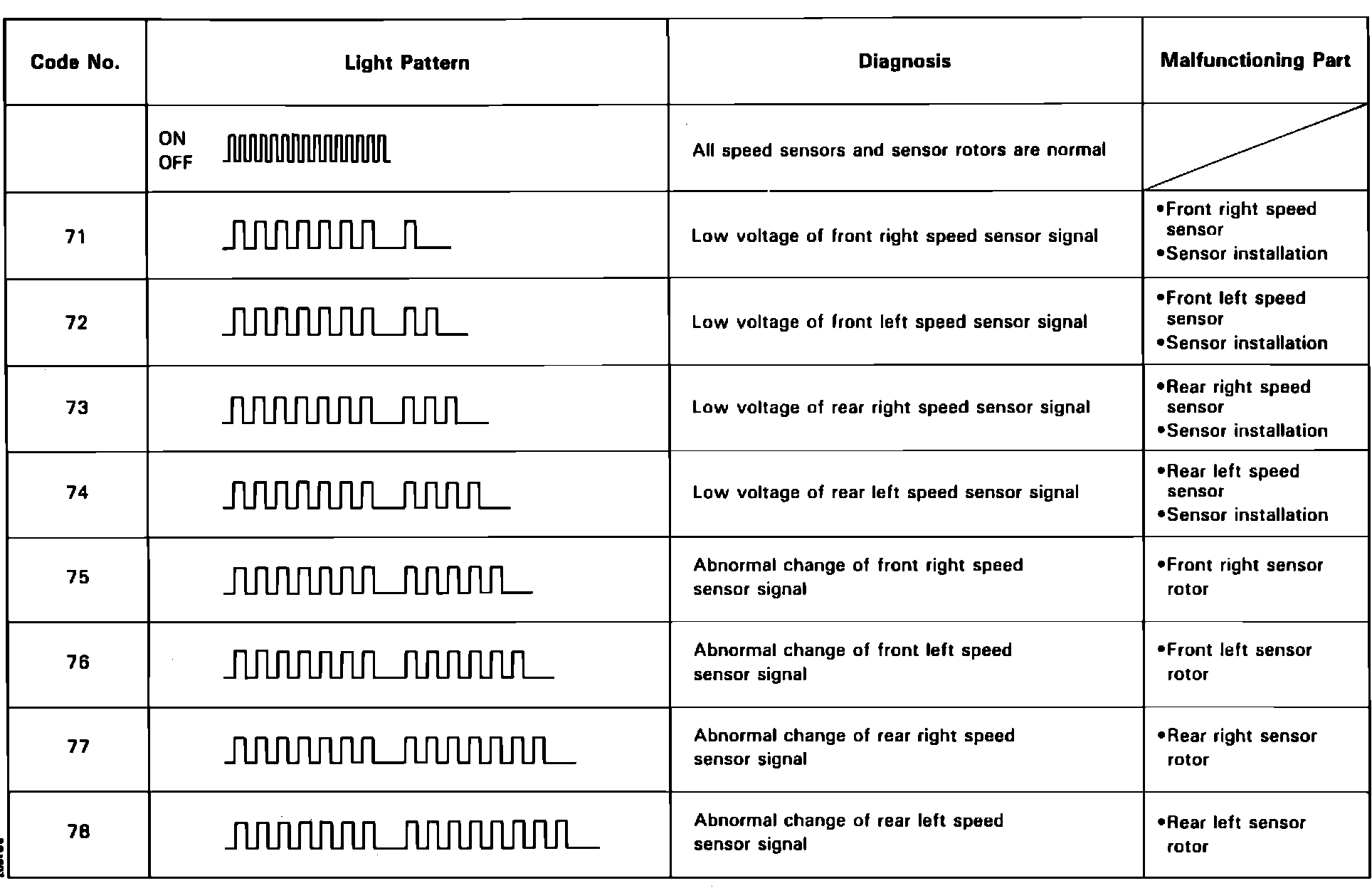

Diagnostic Codes Identification Charts

Diagnostic Code:
