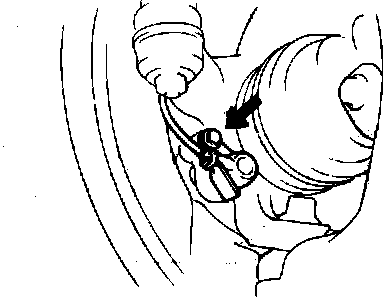

Speed Sensor, Front

Speed Sensor Bolt:

REMOVAL

1. Disconnect the wheel speed sensor from the wiring harness.
2. Remove the wiring holders from sensor wiring lead.
3. Remove the sensor bolt and remove sensor from steering knuckle.


INSTALLATION

1. Install sensor in steering knuckle and install and tighten the sensor bolt. See SPECIFICATIONS.
2. Reinstall the sensor lead in the wiring holders.
3. Connect the wheel speed sensor to the wiring harness.
