Lexus
>>
1990
>>
ES 250 V6-2.5L (2VZ-FE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Brakes and Traction Control
>>
Wheel Speed Sensor
>>
Description and Operation
>>
System Components
System Components

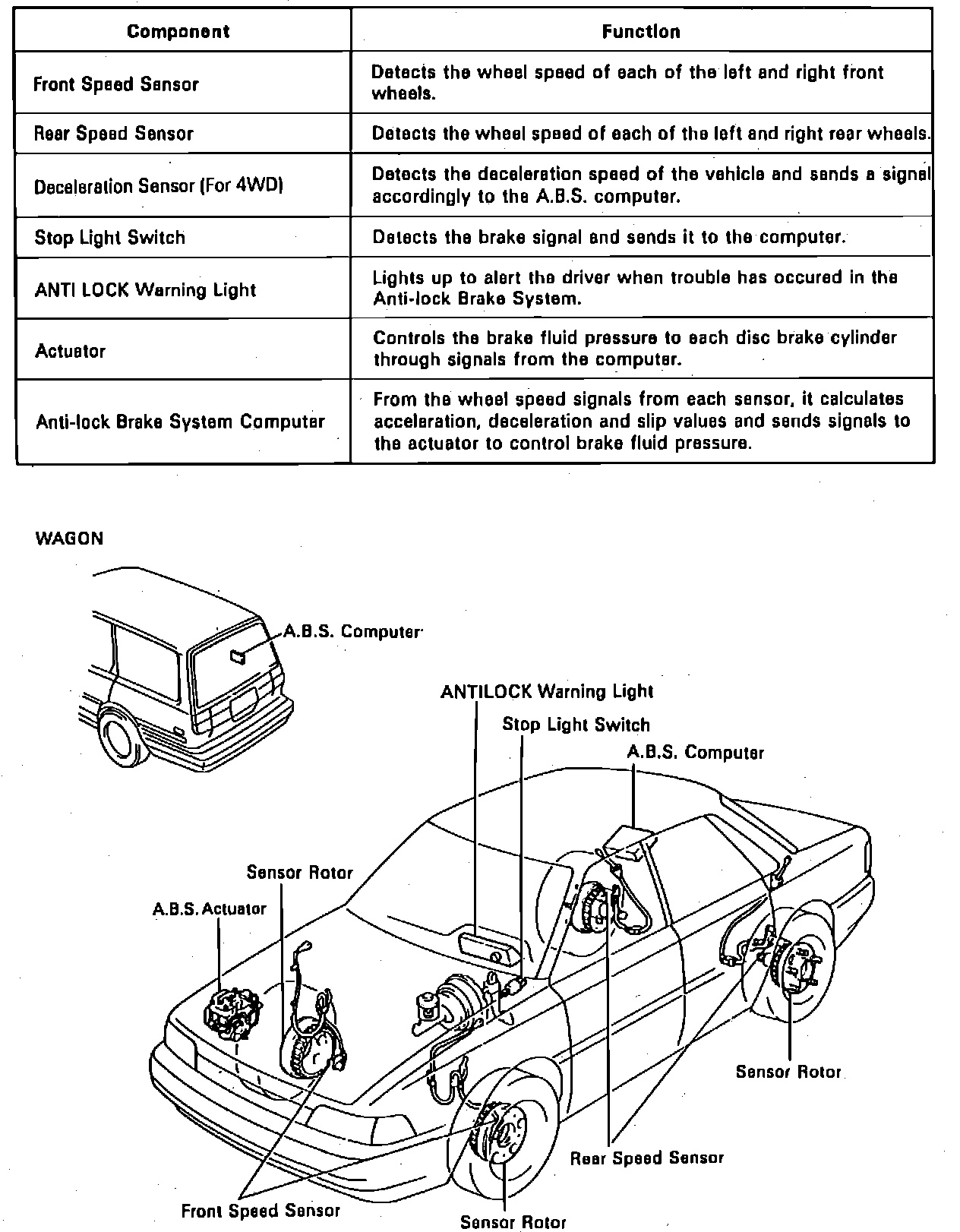

Fig. 5 Component Location & Function (Part 1 Of 2).:

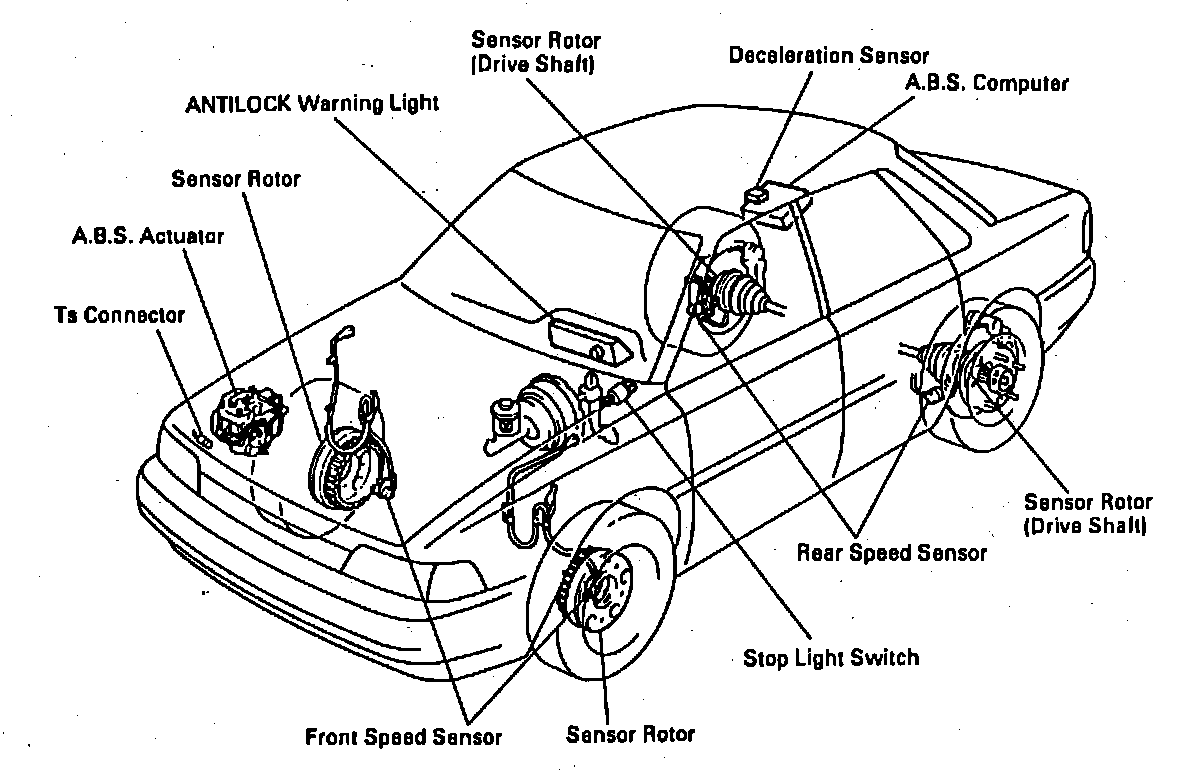

Fig. 5 Component Location & Function (Part 2 Of 2).:
