Blower Motor Relay: Testing and Inspection

BLOWER SPEED CONTROL RELAY
Inspection of Blower Speed Control Relay.

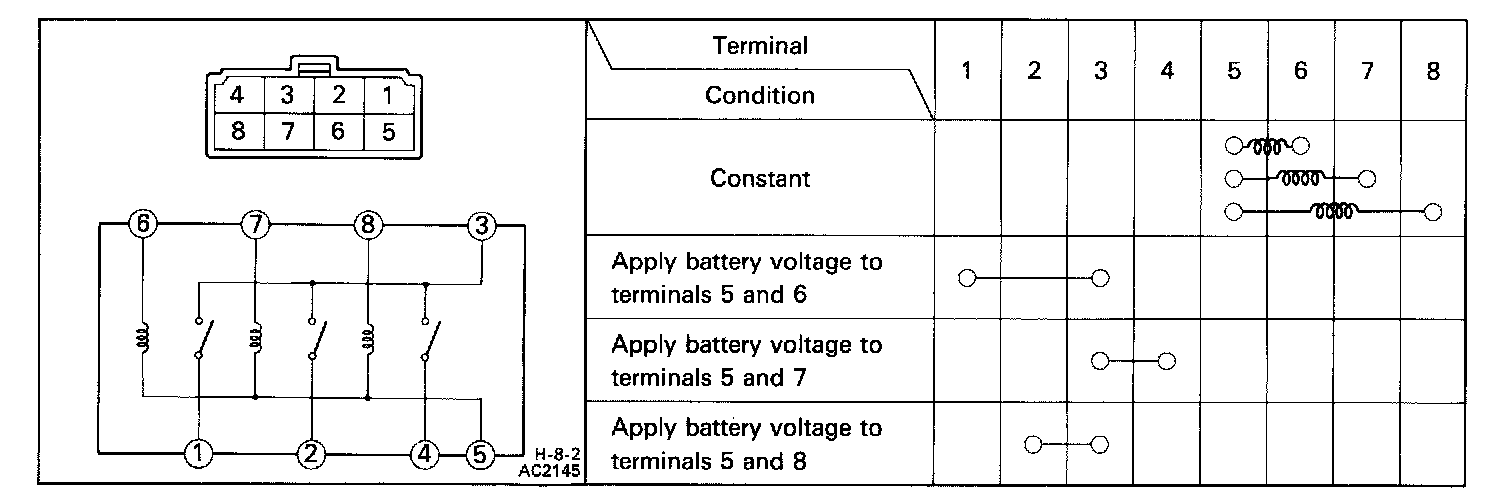

INSPECT BLOWER SPEED CONTROL RELAY CONTINUITY
It the continuity is not as specified, replace the relay.
