Home >> Lexus >> 1990 >> ES 250 V6-2.5L (2VZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams >> Ignition System Schematic

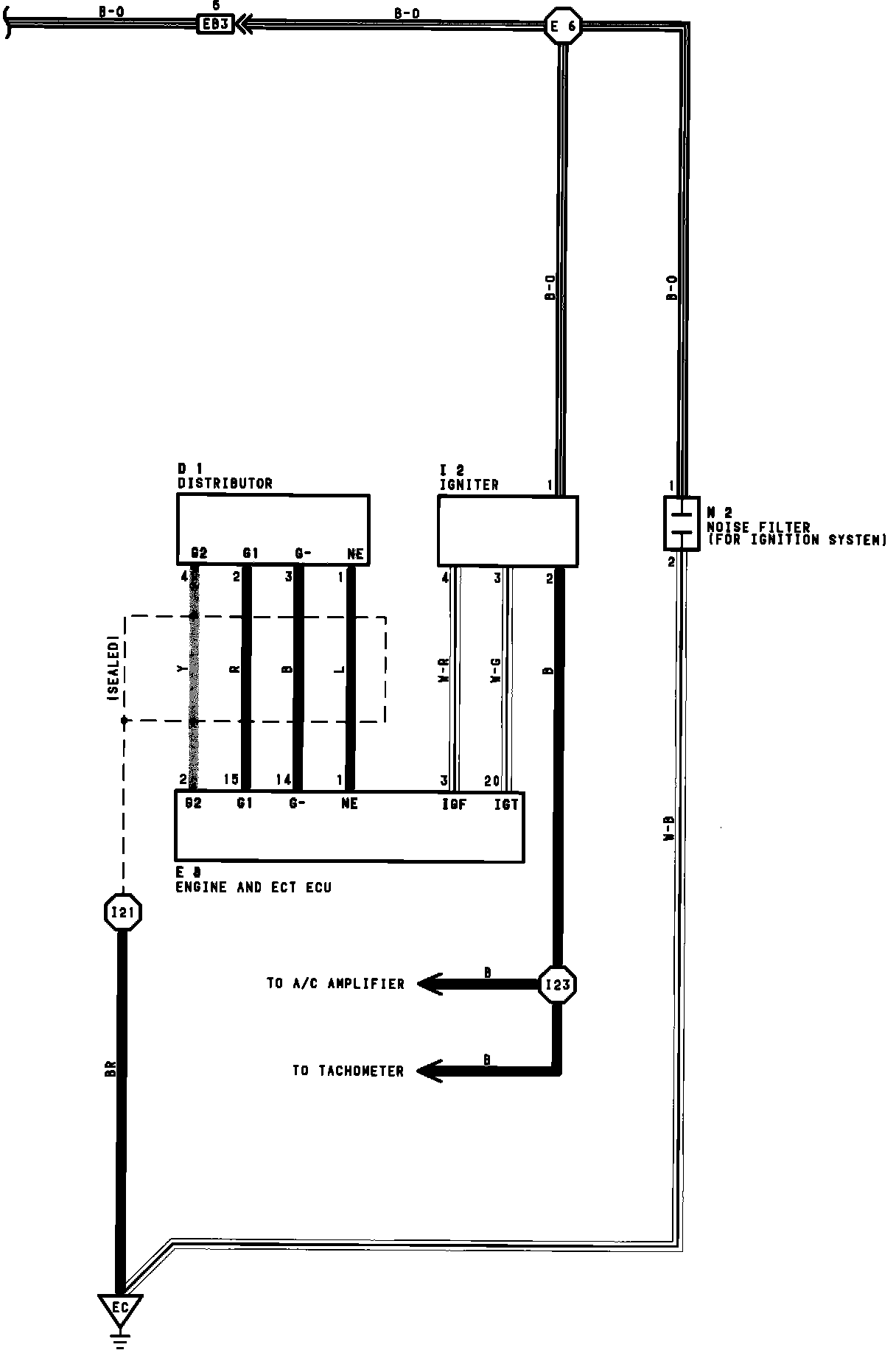

Ignition System Schematic

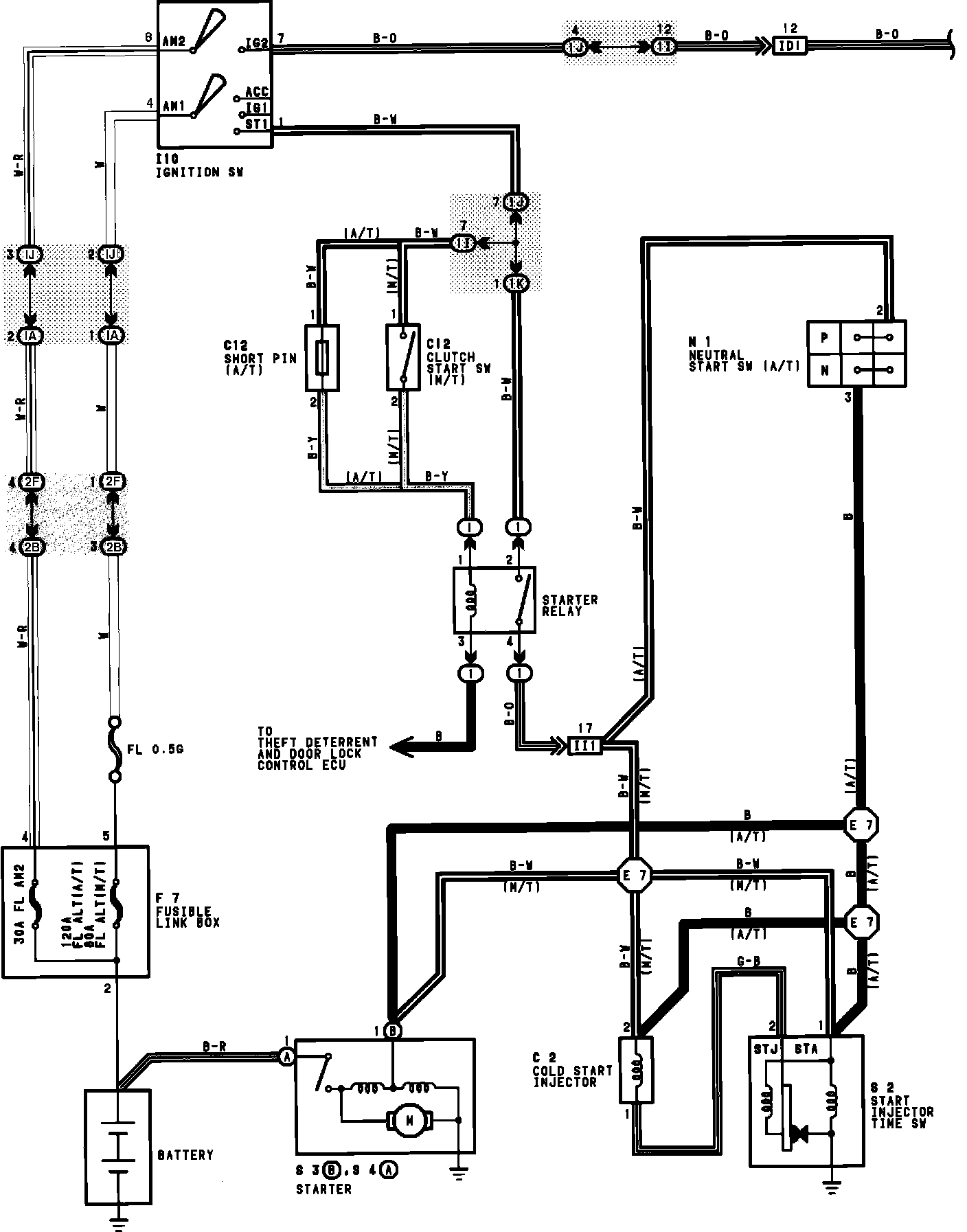

Starting and Ignition System:



Starting and Ignition System:
