Throttle Body: Service and Repair

Air Cleaner And Hose:

- Disconnect negative battery terminal.
- Drain coolant into an approved container.
- Remove air cleaner cover, air flow meter and air hose as an assembly.
- Disconnect cables from throttle body.
- Disconnect throttle position sensor electrical connector.

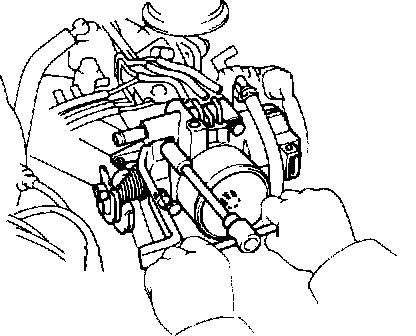

Throttle Body:

- Remove throttle body.
- Reverse procedure to install, using a new gasket.

Torque value - 9 ft.lb (13 Nm)
