Home >> Lexus >> 1990 >> ES 250 V6-2.5L (2VZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> A/C Signal >> Testing and Inspection

A/C Signal: Testing and Inspection

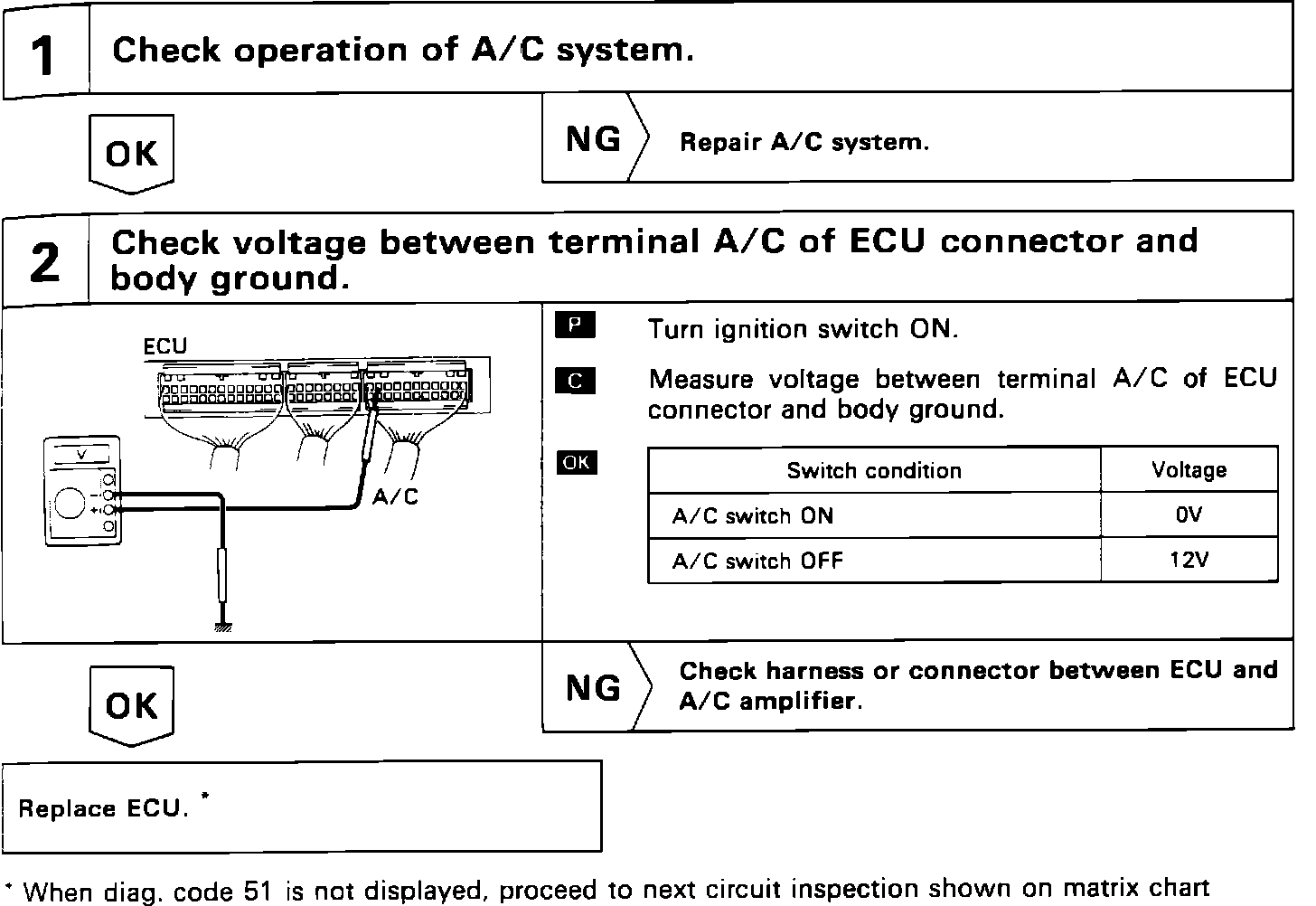

Fig. 23 Air Conditioner Switch Signal Diagnosis:
