Step 3 New Camber Adjusting Bolts





STEP 3

NEW CAMBER ADJUSTING BOLTS

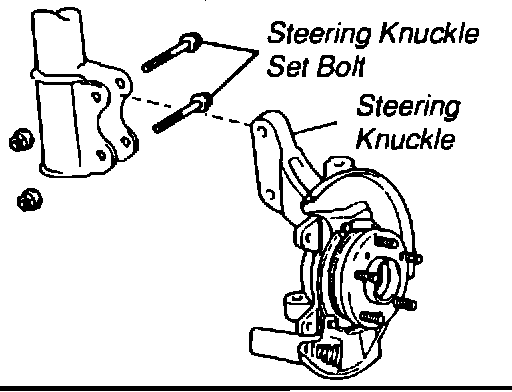

To provide camber adjustment capability, the steering knuckle set bolts can be replaced with the new style camber adjusting bolts.

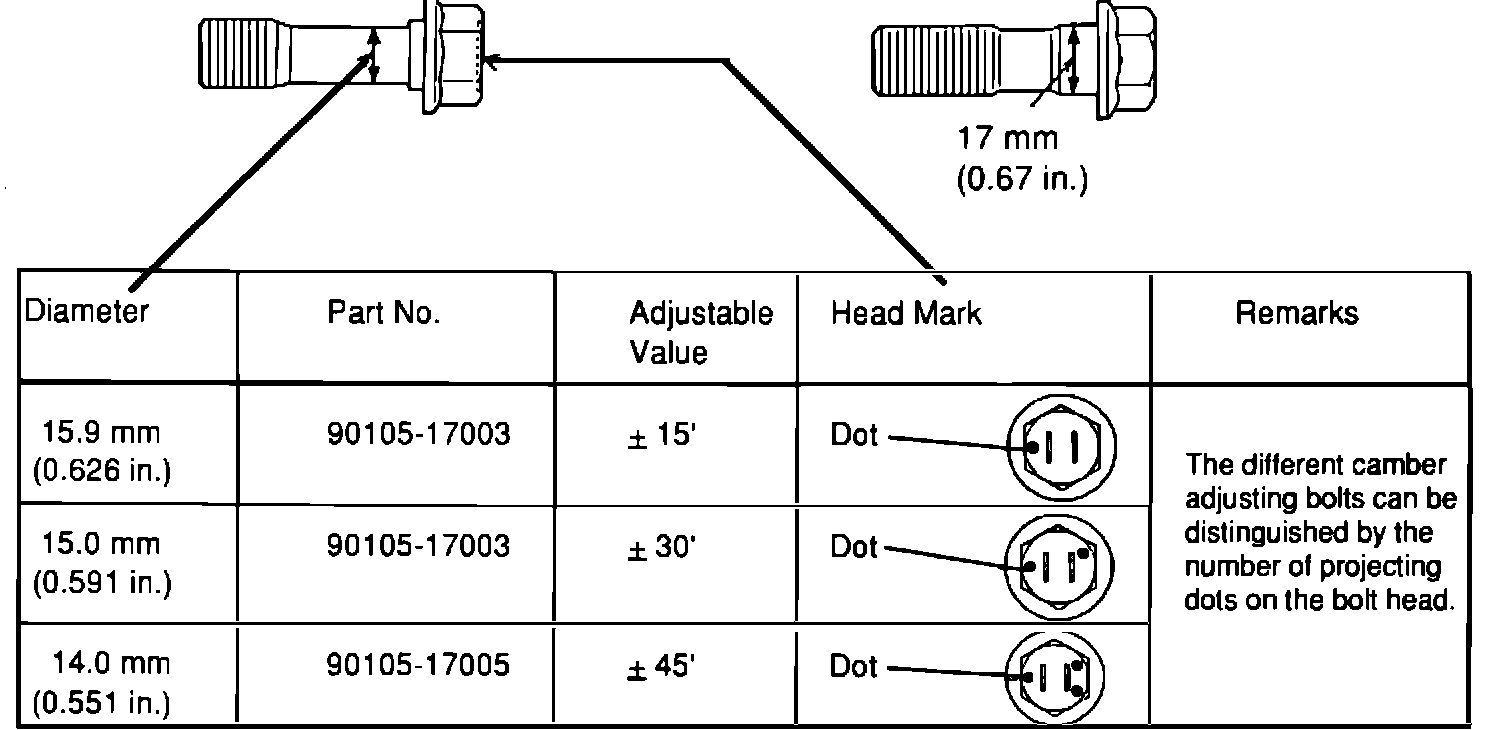

DESCRIPTION AND PART NO. INFORMATION

The camber adjustment bolt has a smaller shank diameter then the original steering knuckle set bolt. This creates a gap between the bolt hole in the steering knuckle and the set bolt. Camber adjustment is performed by reducing the gap on either the positive or the negative side of the hole in the knuckle assembly. If the alignment is within specification and vehicle still pulls, change front camber settings by using new style camber adjustment bolts.
