Piston Pin: Service and Repair

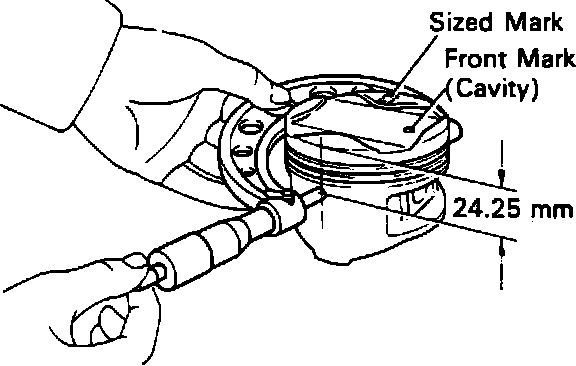

Fig. 30 Piston Check Locations:

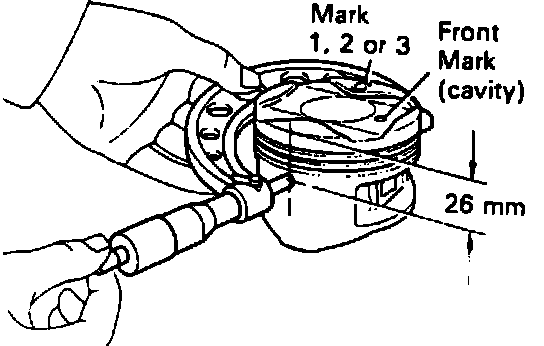

Fig. 31 Piston Check Locations:

When installed, the piston front mark should face the front of the engine. Pistons come in three standard sizes located on top of the piston, 1, 2, or 3. They are also available .50 inch oversized, Figs. 30 and 31.
