Water Pump: Service and Repair

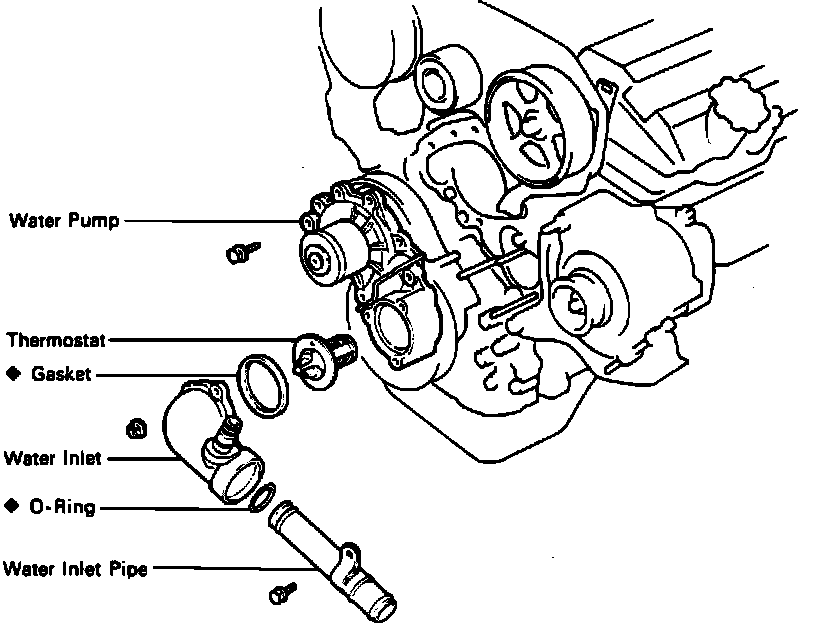

Fig. 36 Water Pump Removal:

Refer to Fig. 36 when replacing the water pump.
1. Disable airbag system as described under MAINTENANCE PROCEDURE/AIRBAG SYSTEM DISARMING.
2. Drain coolant, then disconnect lower radiator hose from water inlet pipe.
3. Disconnect timing belt from water pump pulley as previously described.
4. Remove water inlet pipe, then the water inlet and thermostat.
5. Remove water pump.
6. Reverse procedure to install. Rearm airbag system as previously described.
