Home >> Lexus >> 1990 >> ES 250 V6-2.5L (2VZ-FE) >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Antilock Brakes / Traction Control Systems

Antilock Brakes / Traction Control Systems

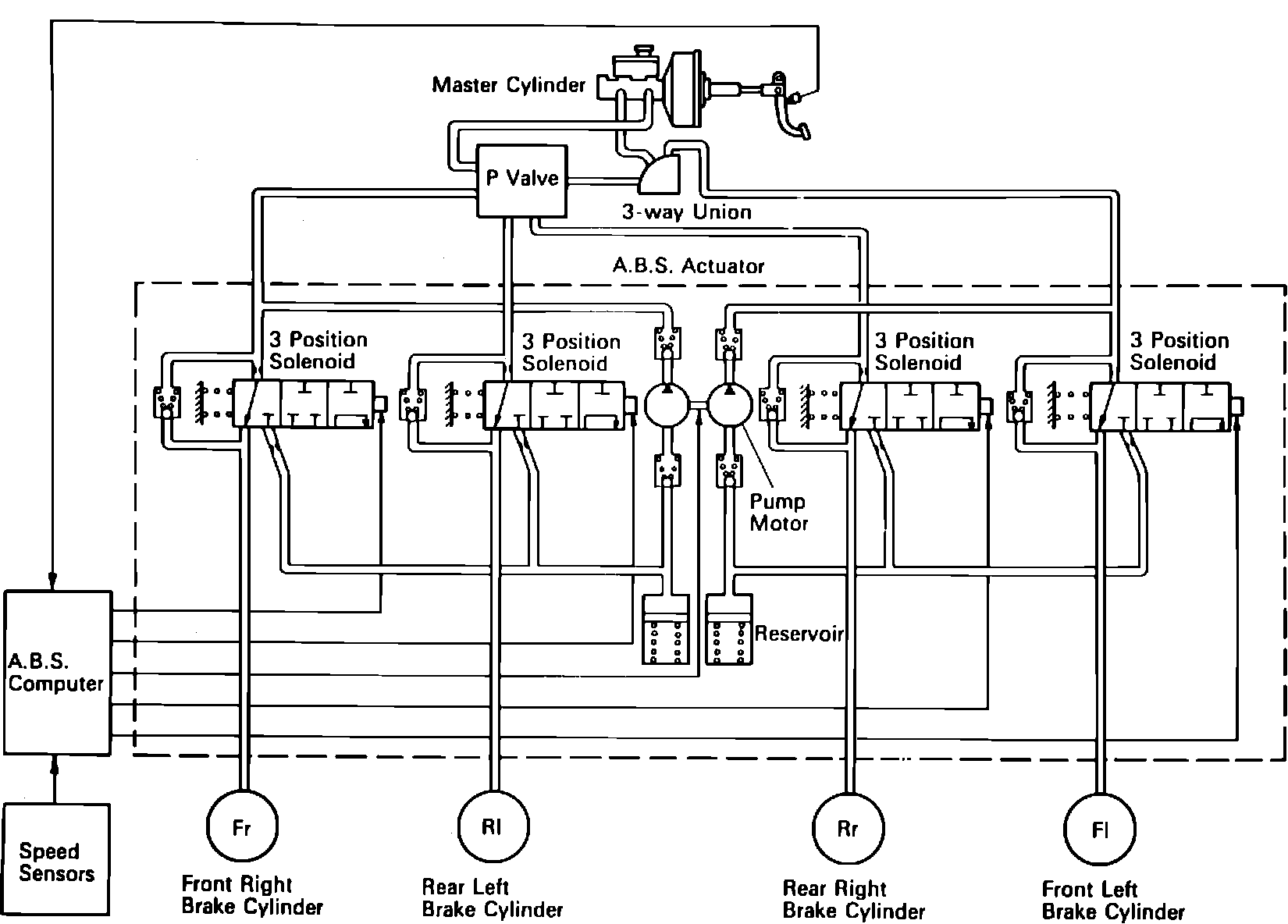

ABS Hydraulic Schematic:

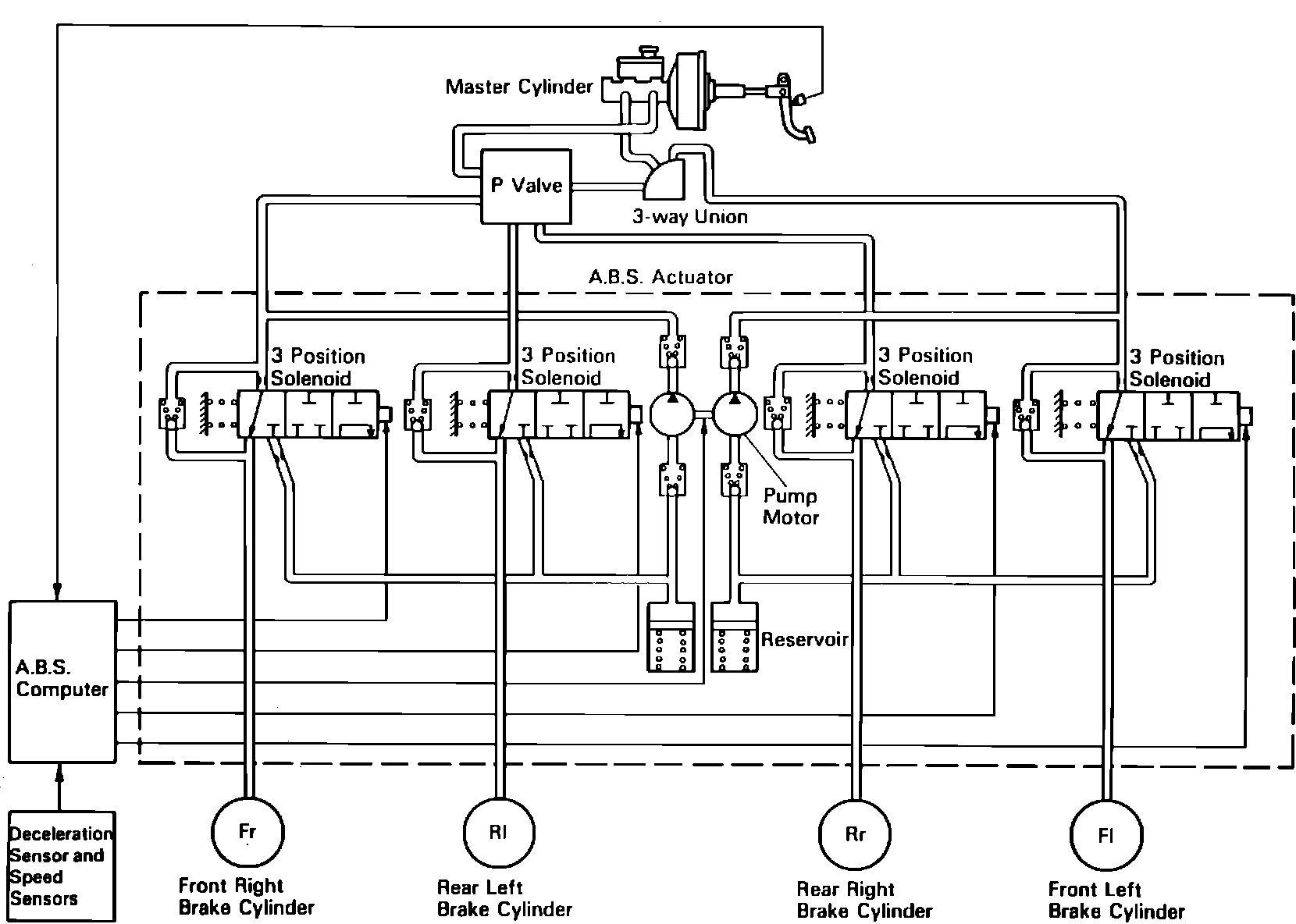

ABS Hydraulic Schematic:

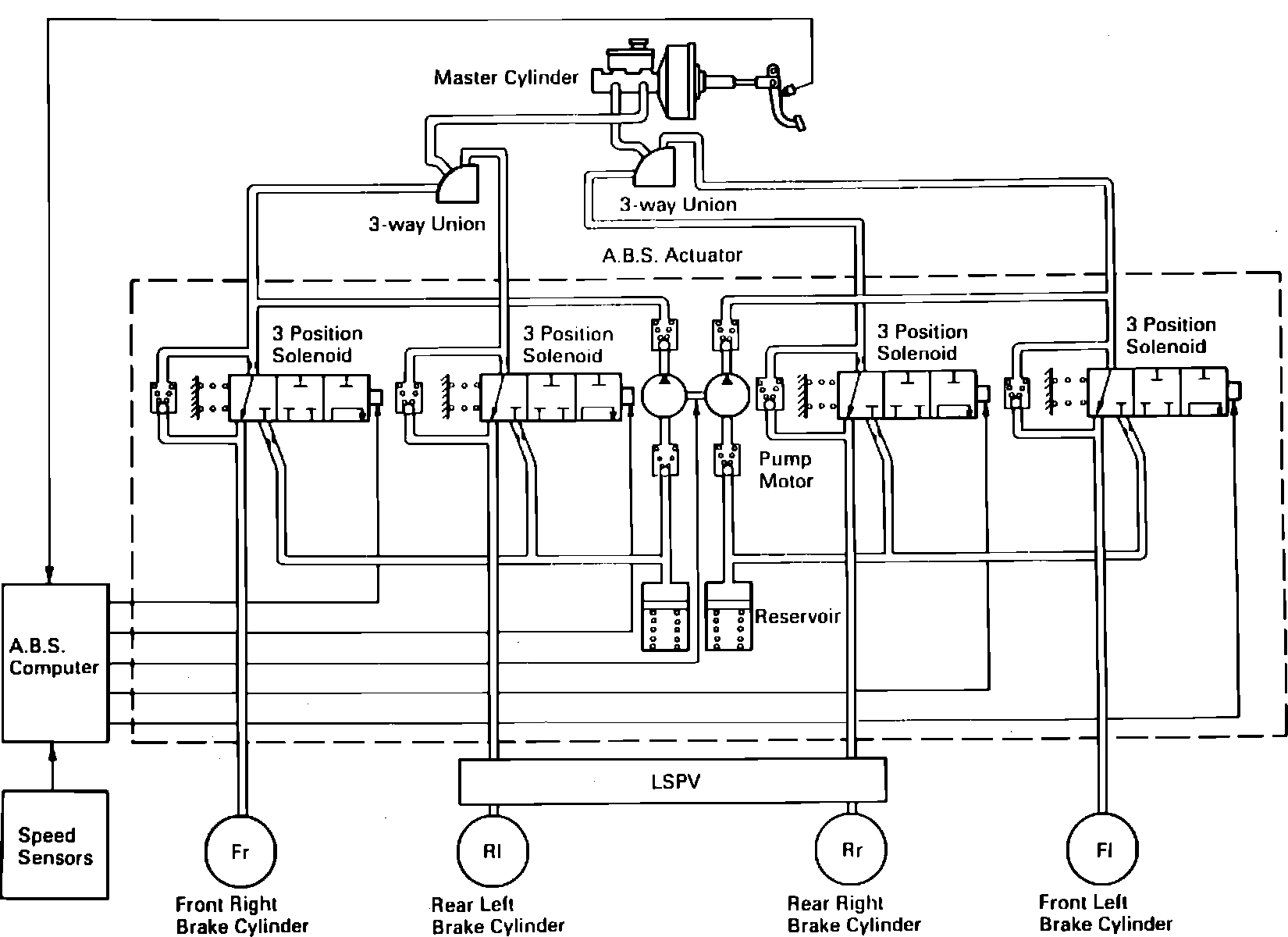

ABS Hydraulic Schematic:
