Sensor Rotors

Sensor Rotor:

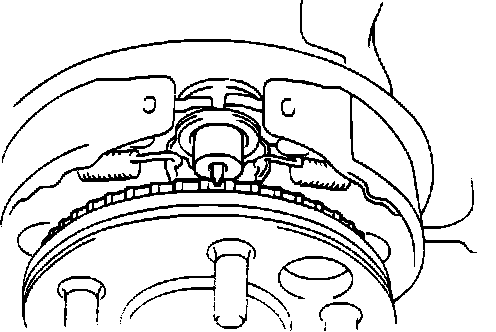

Speed Sensor And Rotor Serrations:

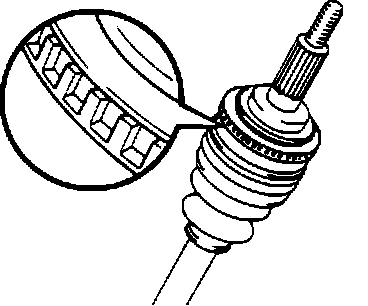

Sensor Rotor Serrations:

The front sensor rotor is located on the front axle hub under the brake rotor. The rear sensor rotors for the 2WD model are located on the back of the rear axle hub, the 4WD model has the sensor rotors on the outer constant velocity joint housing.
