Rear Wheel Speed Sensors

Speed Sensor And Rotor Serrations:

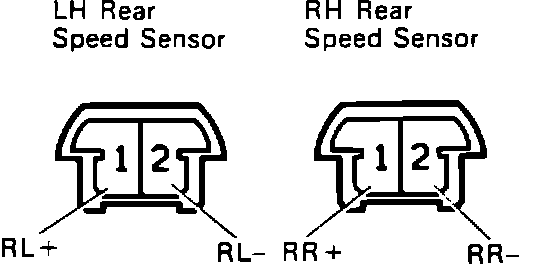

Speed Sensor Connector:

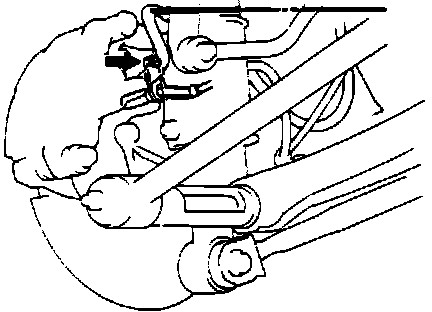

Speed Sensor Bolt:

1. Inspect wheel speed sensor.
a. Remove the rear seat cushion.
b. Disconnect the speed sensor connector.
c. Measure the resistance between terminals. Refer to SPECIFICATIONS for resistance values. If resistance value is not as specified, replace the sensor.
d. Check for no continuity between each terminal and sensor body. If there is continuity, replace sensor.
e. Connect the speed sensor connector.
