Disassembly and Assembly

DISASSEMBLY OF MOON ROOF

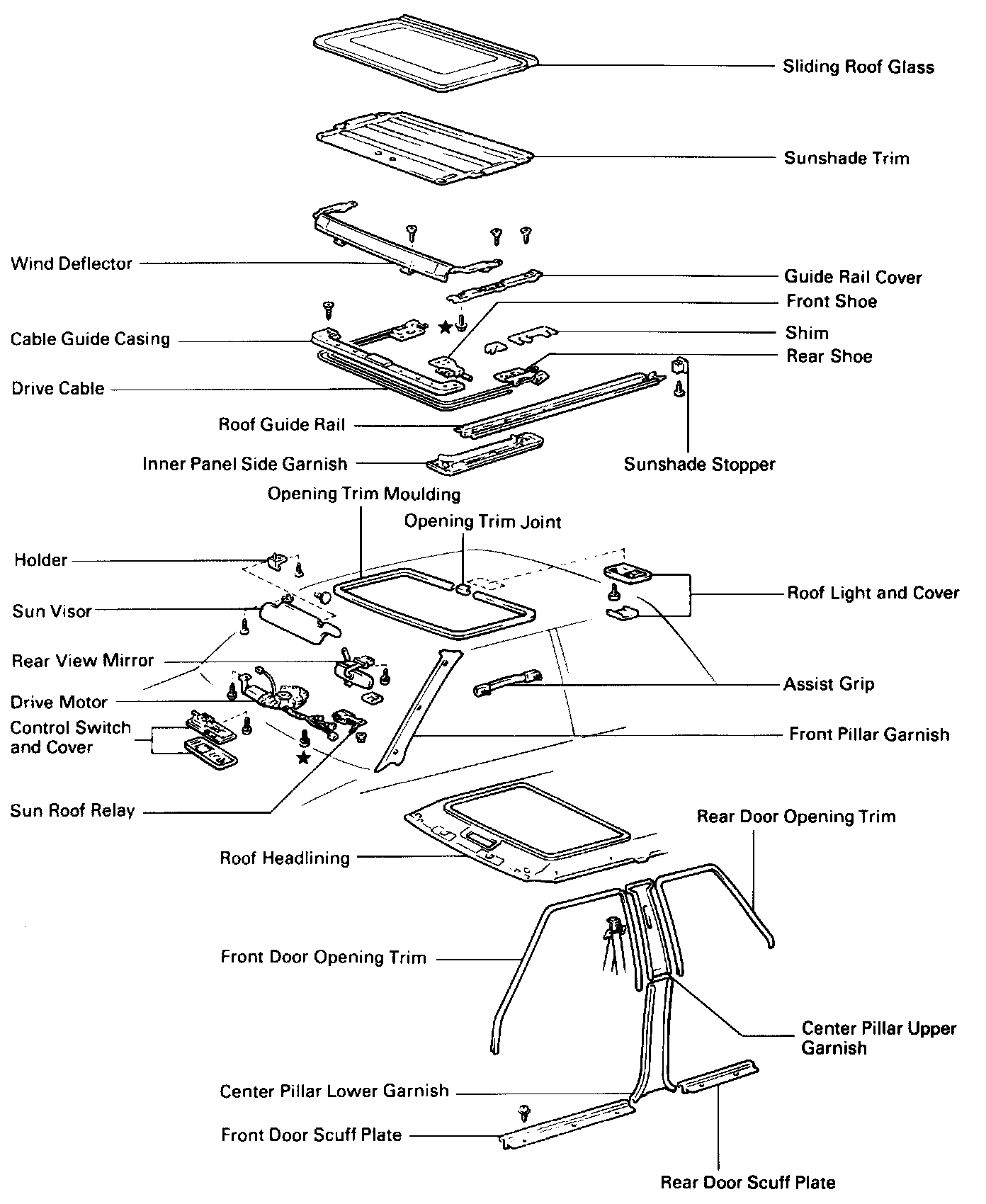

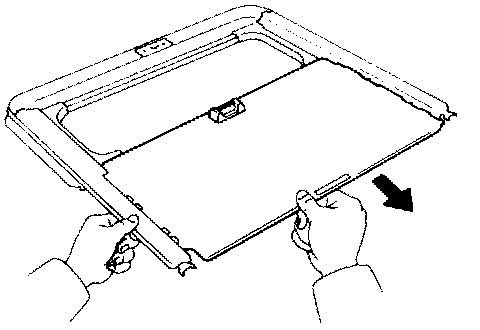

1. REMOVE SUNSHADE TRIM
(a) Remove the screw and sunshade stopper.
(b) Pull the sunshade trim rearward to remove.

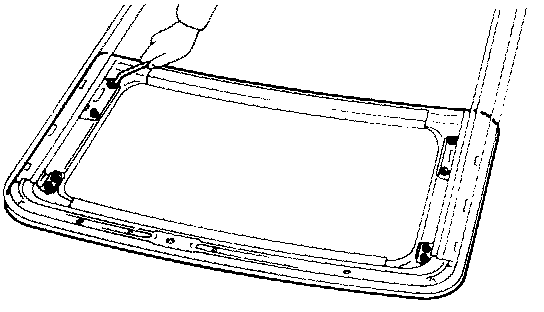

2. REMOVE INNER PANEL SIDE GARNISH

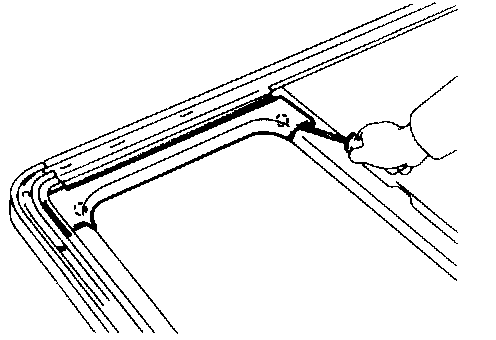

Using a screwdriver, remove the side garnish.

HINT: Tape the screwdriver tip before use.





3. REMOVE SLIDING ROOF GLASS
Remove the eight nuts and sliding roof glass with the front and rear shims.

HINT: Note the number of shims in the front and rear shoes.

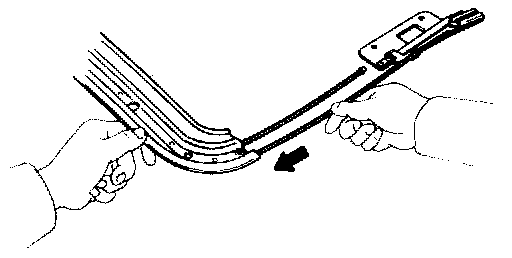

4. REMOVE CABLE GUIDE CASING FROM ROOF GUIDE RAIL
(a) Remove the screw and weatherstrip.
(b) Pull the cable guide casing forward to remove.





5. REMOVE DRIVE CABLE FROM CABLE GUIDE CASING
Pull the drive cable from the cable guide casing.

ASSEMBLY OF MOON ROOF





1. APPLY MP GREASE TO DRIVE CABLE

2. PLACE DRIVE CABLES INTO CABLE GUIDE CASING

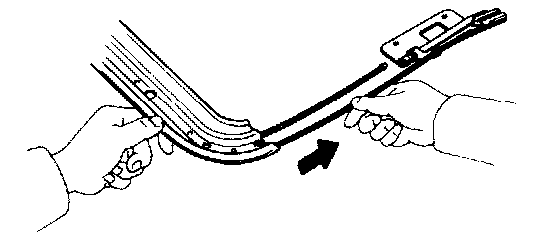

3. INSTALL CABLE GUIDE CASING TO ROOF GUIDE RAIL

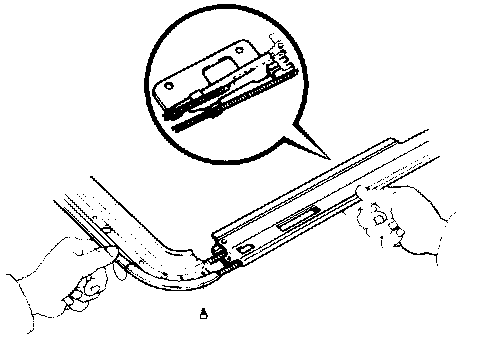

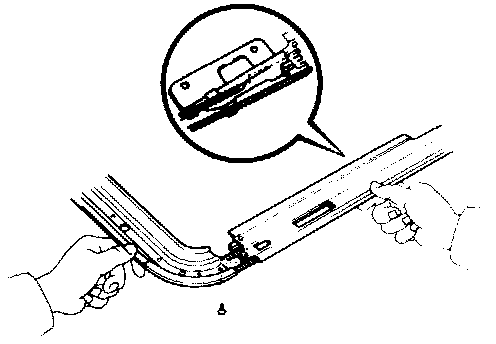

(a) Insert the drive cable into the rail, and align it with the guide casing.
(b) Install the guide rail and guide casing with the screw.

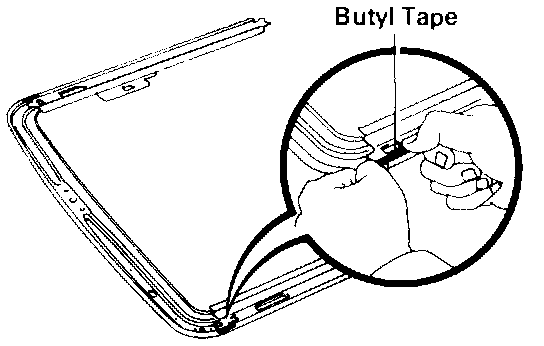

(c) Use butyl tape to cover the cut portion of the weatherstrip at the connection between the guide casing and guide rail.





4. ASSEMBLE SLIDING ROOF GLASS
Install the sliding roof glass, shims and shoes with the eight nuts.

HINT: Install the same number of shims that were disassembled.

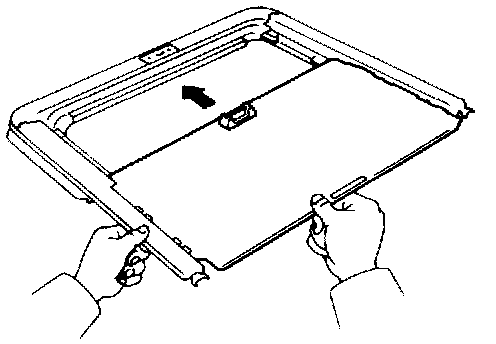

5. INSTALL SUNSHADE TRIM
(a) Run the sunshade trim through the guide rail.

HINT: Secure the headlining for adjustment after assembly.

(b) Install the sunshade stopper with the screw.

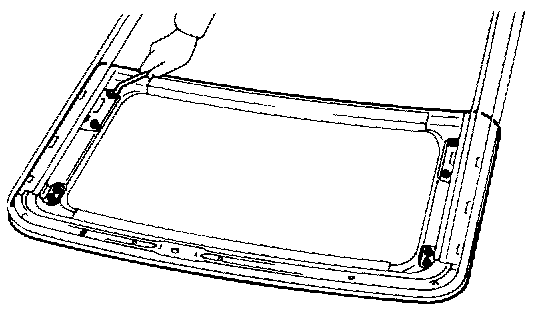

6. INSTALL INNER PANEL SIDE GARNISH
