Rear Door Lock Assembly - Change

91lexus02

BODY 021
MAY 31, 1991
ES250

Title REAR DOOR LOCK ASSEMBLY





To standardize parts used in production, the rear door lock assembly has been changed as follows:


PRODUCTION EFFECTIVE.


VIN P/D
JT8VV22T # L0100577 10/90


PART NUMBER INFORMATION:

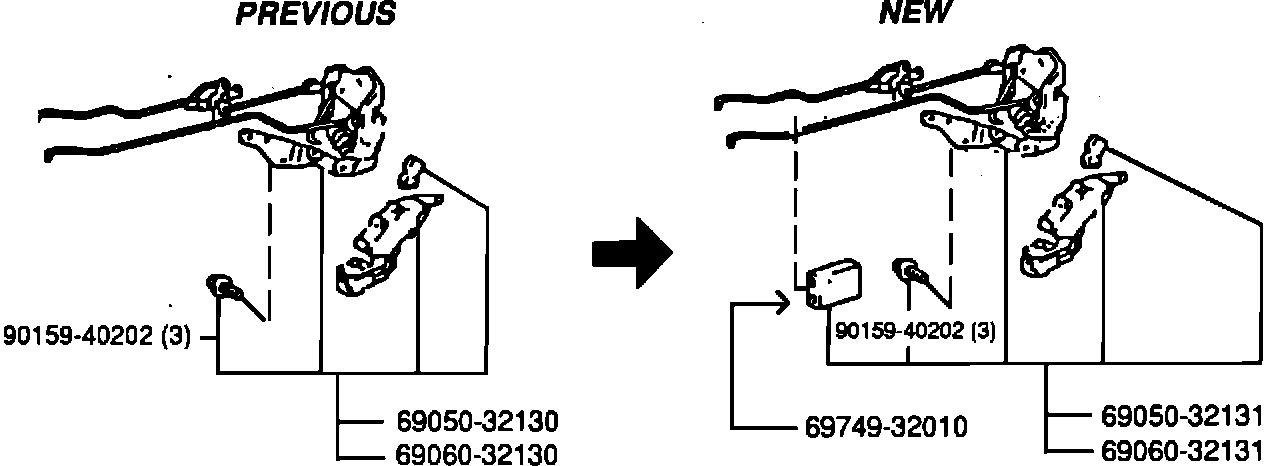

Previous Part Number New Part Number Description
69050-32130 69050-32131 Lock Assy, Rear Door, RH

69060-32130 69060-32131 Lock Assy, Rear Door, LH

Note: Previous and new parts are interchangeable.
