DTC 52
DTC 52

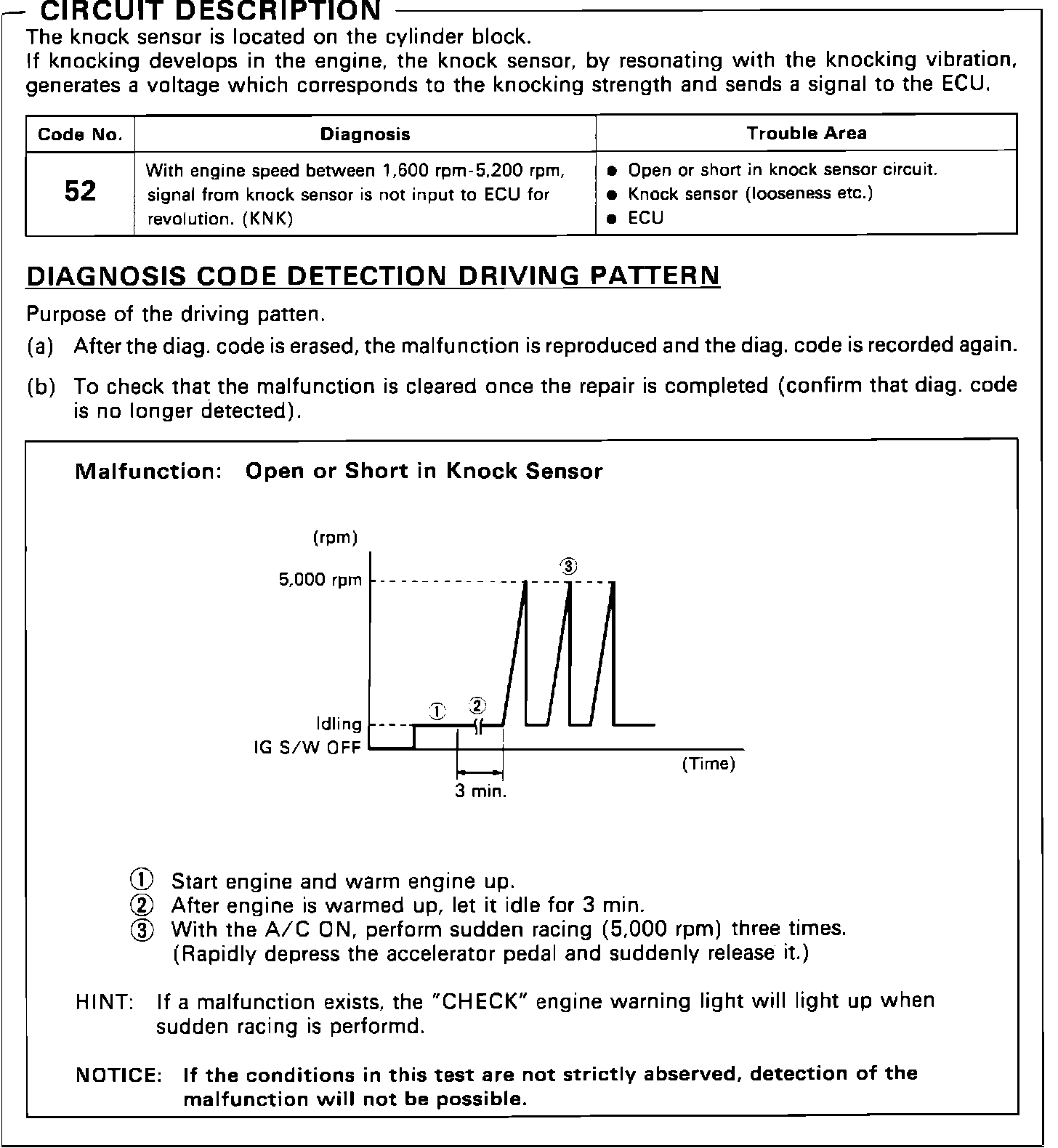

Fig. 18 Diagnostic Code 52 (Knock Sensor Signal, Part 1 Of 3):

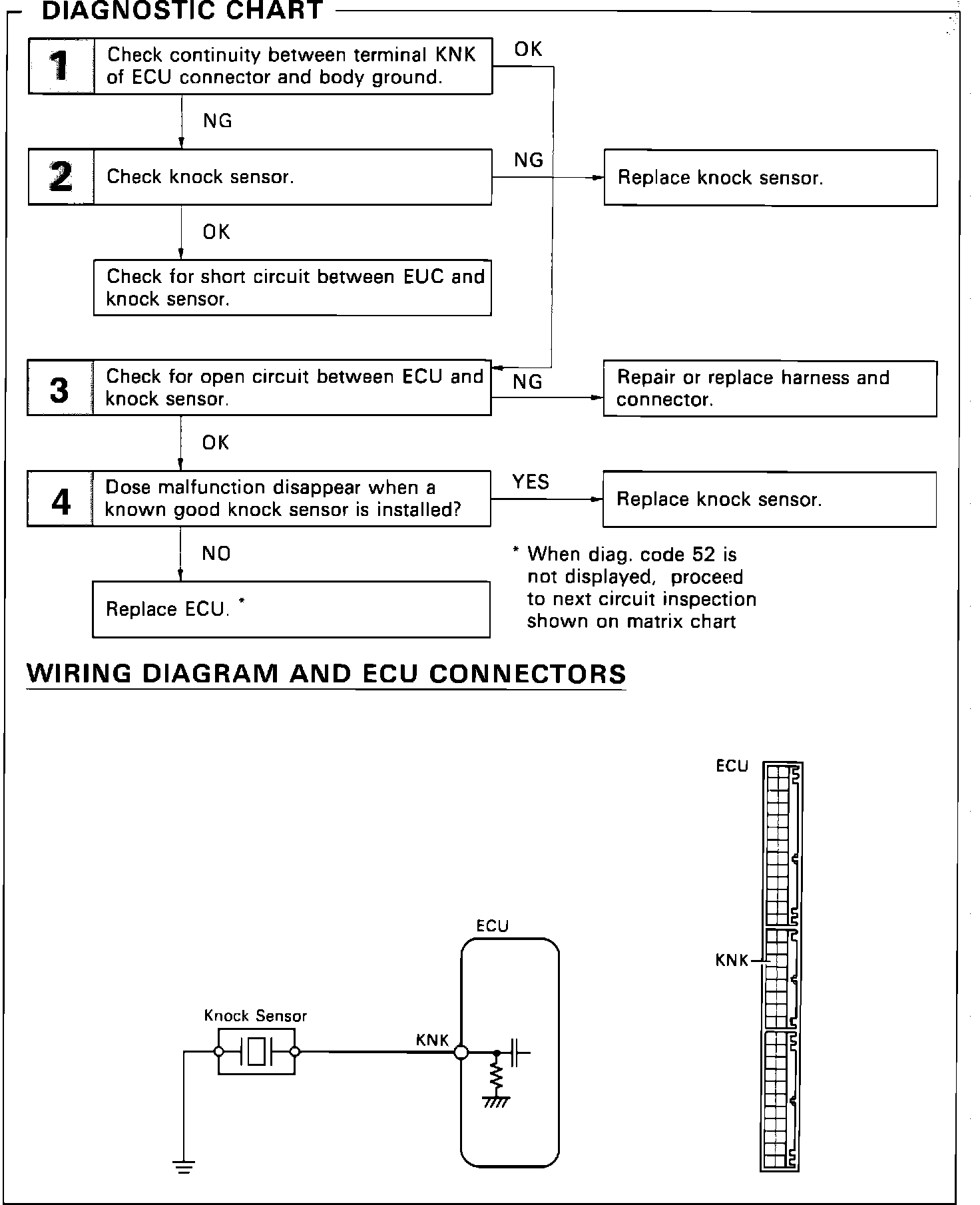

Fig. 18 Diagnostic Code 52 (Knock Sensor Signal, Part 2 Of 3):

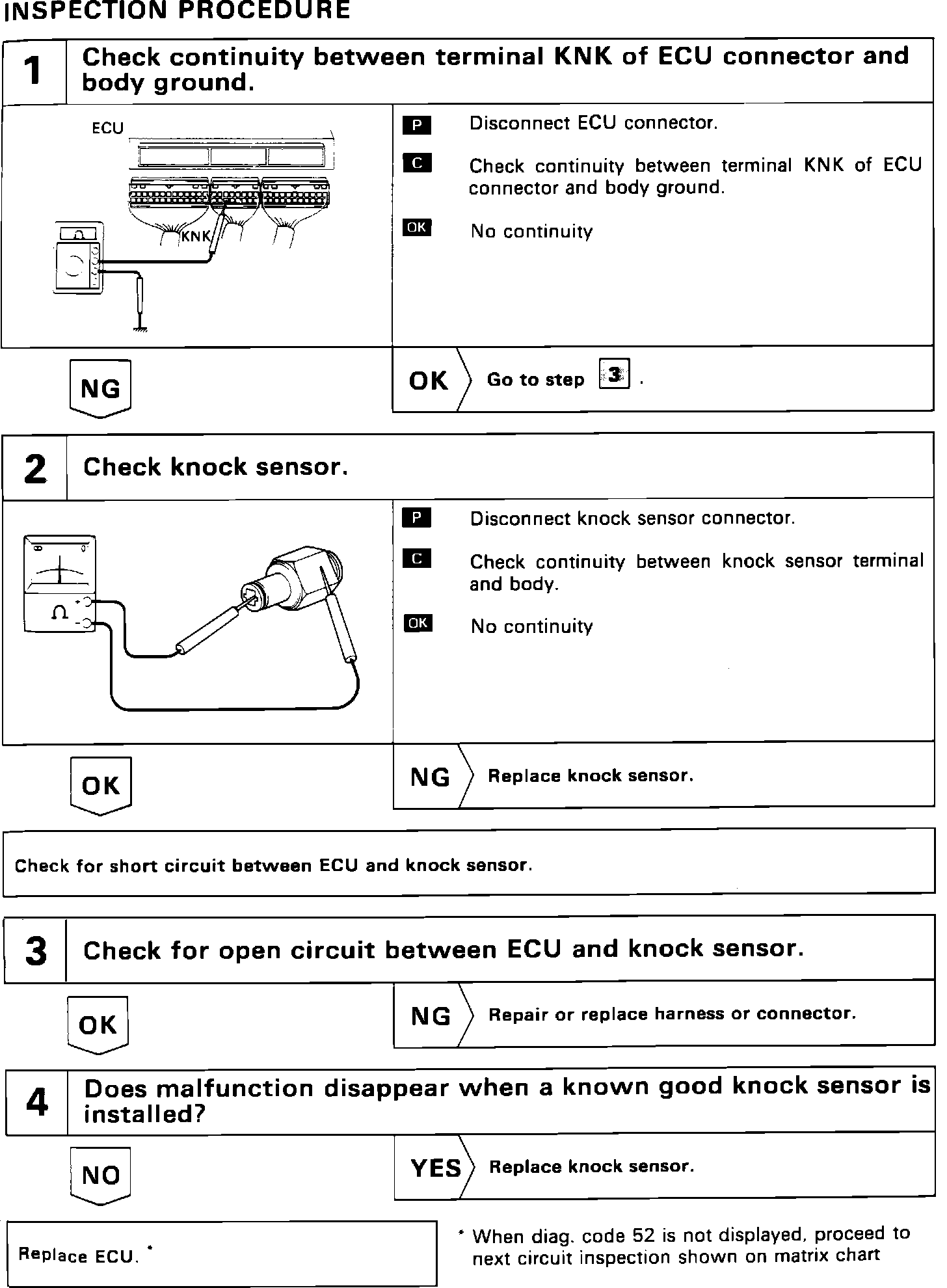

Fig. 18 Diagnostic Code 52 (Knock Sensor Signal, Part 3 Of 3):
