DTC 41

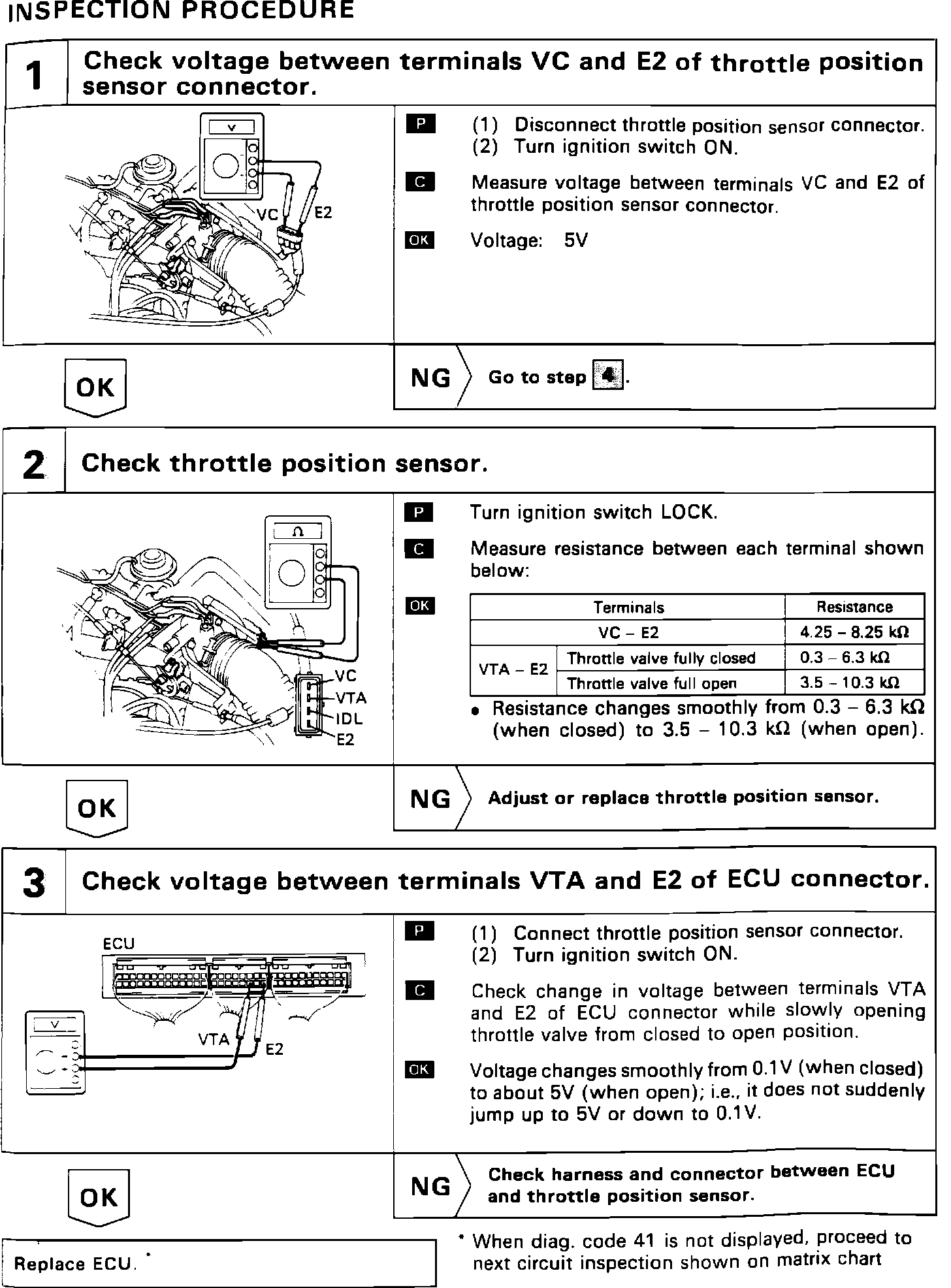

Fig. 15 Diagnostic Code 41 (Throttle Position Sensor Signal, Part 1 Of 4):

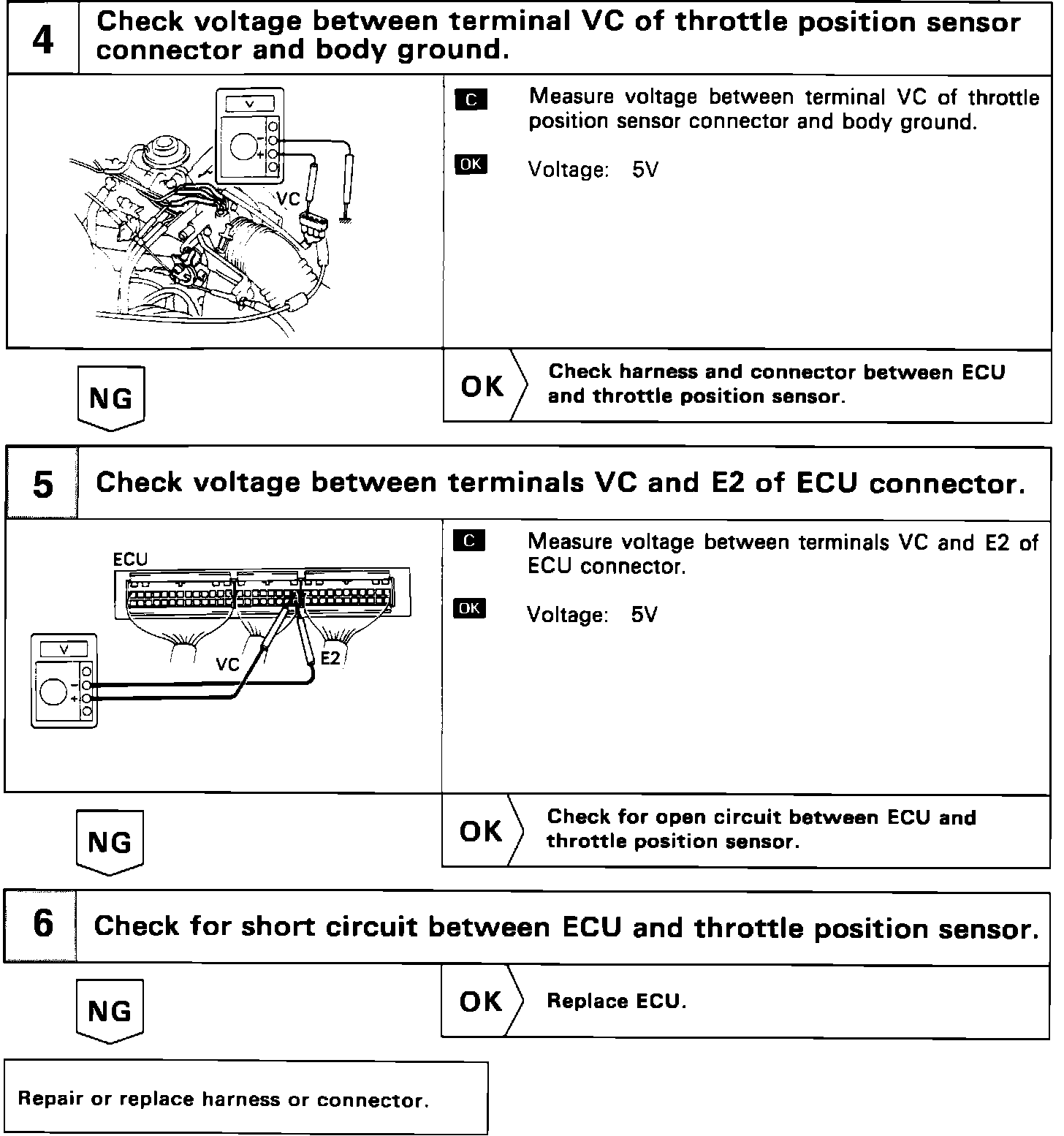

Fig. 15 Diagnostic Code 41 (Throttle Position Sensor Signal, Part 2 Of 4):

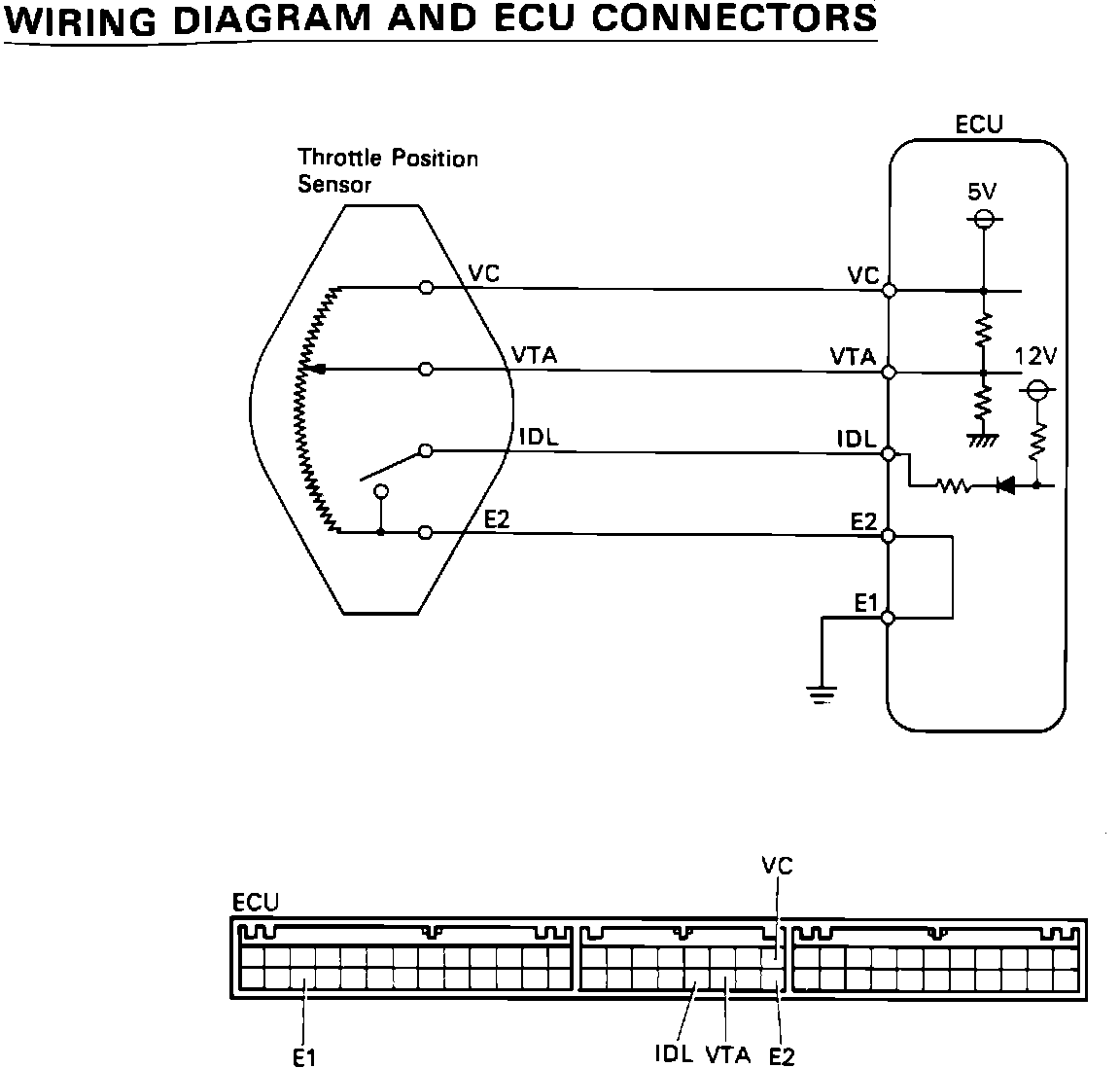

Fig. 15 Diagnostic Code 41 (Throttle Position Sensor Signal, Part 3 Of 4):

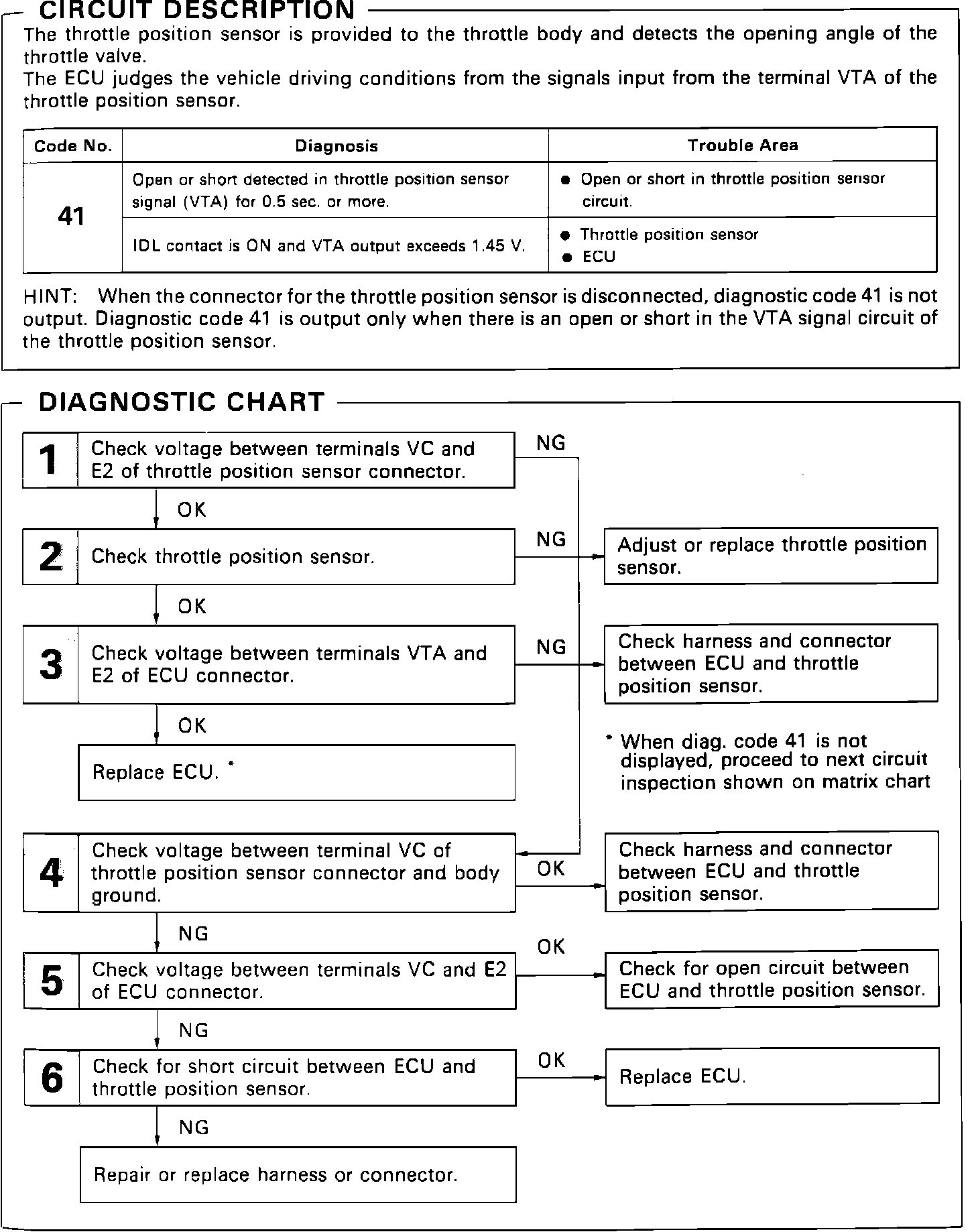

Fig. 15 Diagnostic Code 41 (Throttle Position Sensor Signal, Part 4 Of 4):
