DTC 32

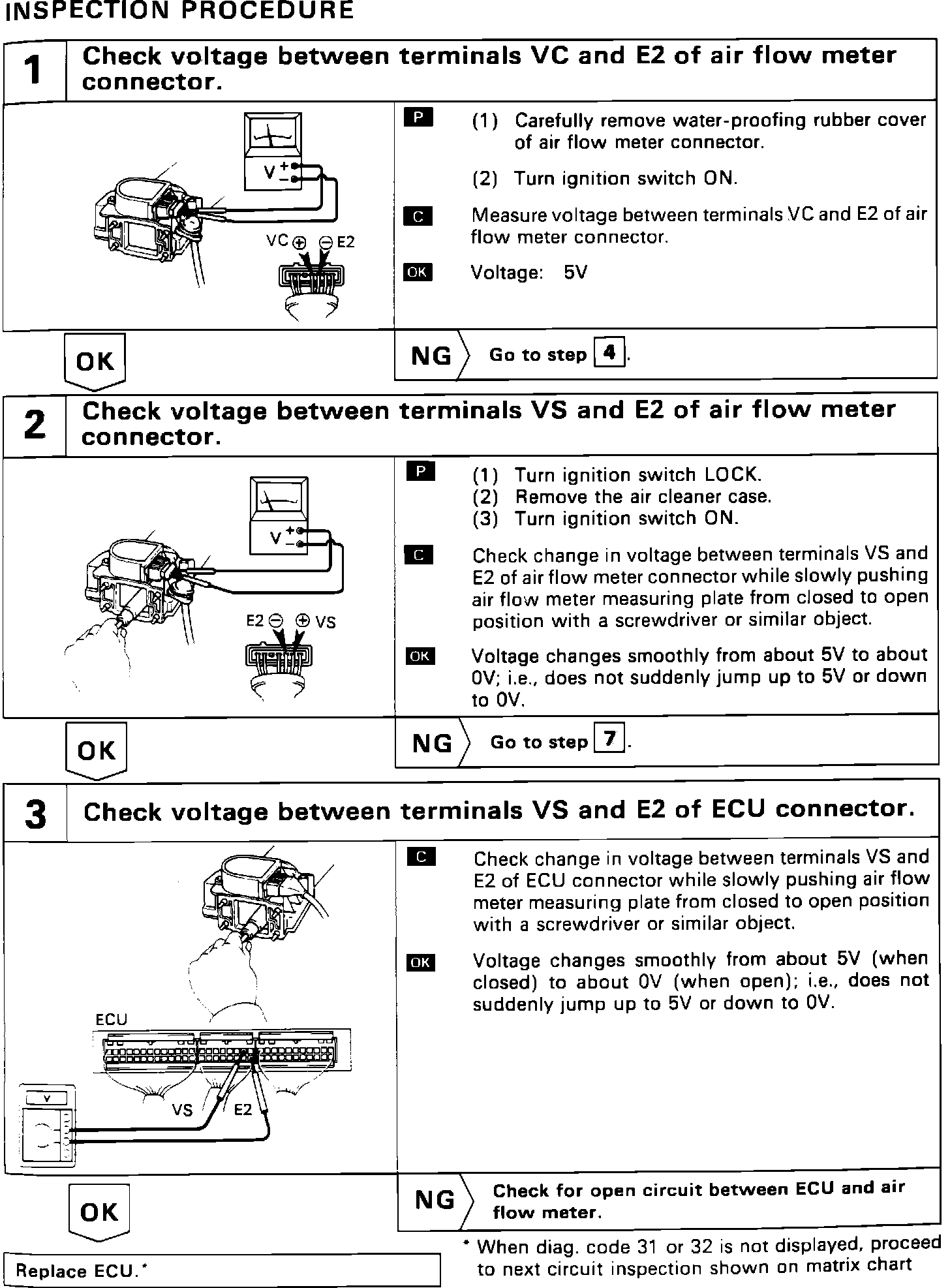

Fig. 14 Diagnostic Codes 31 & 32 (Air Flow Meter Signal, Part 1 Of 4):

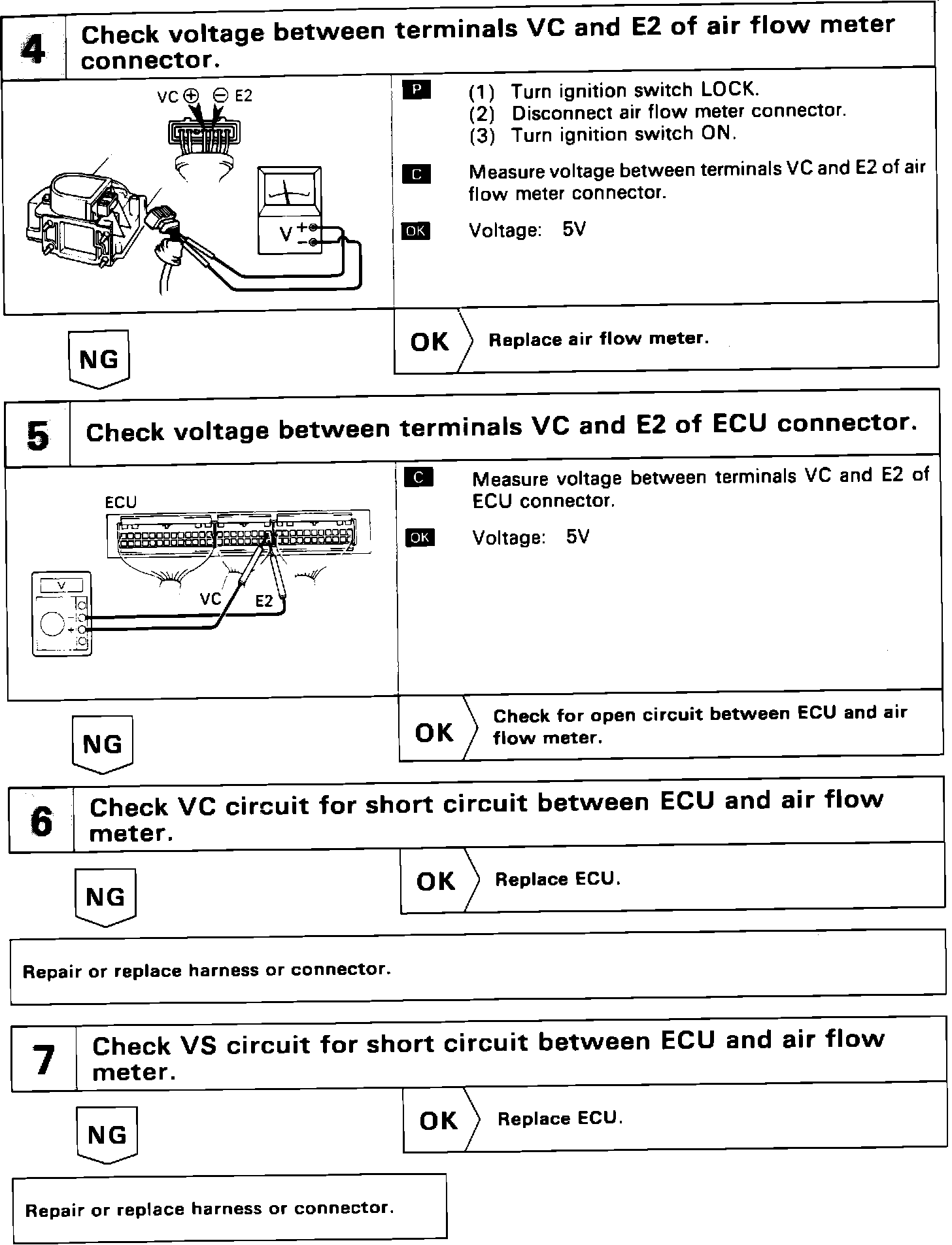

Fig. 14 Diagnostic Codes 31 & 32 (Air Flow Meter Signal, Part 2 Of 4):

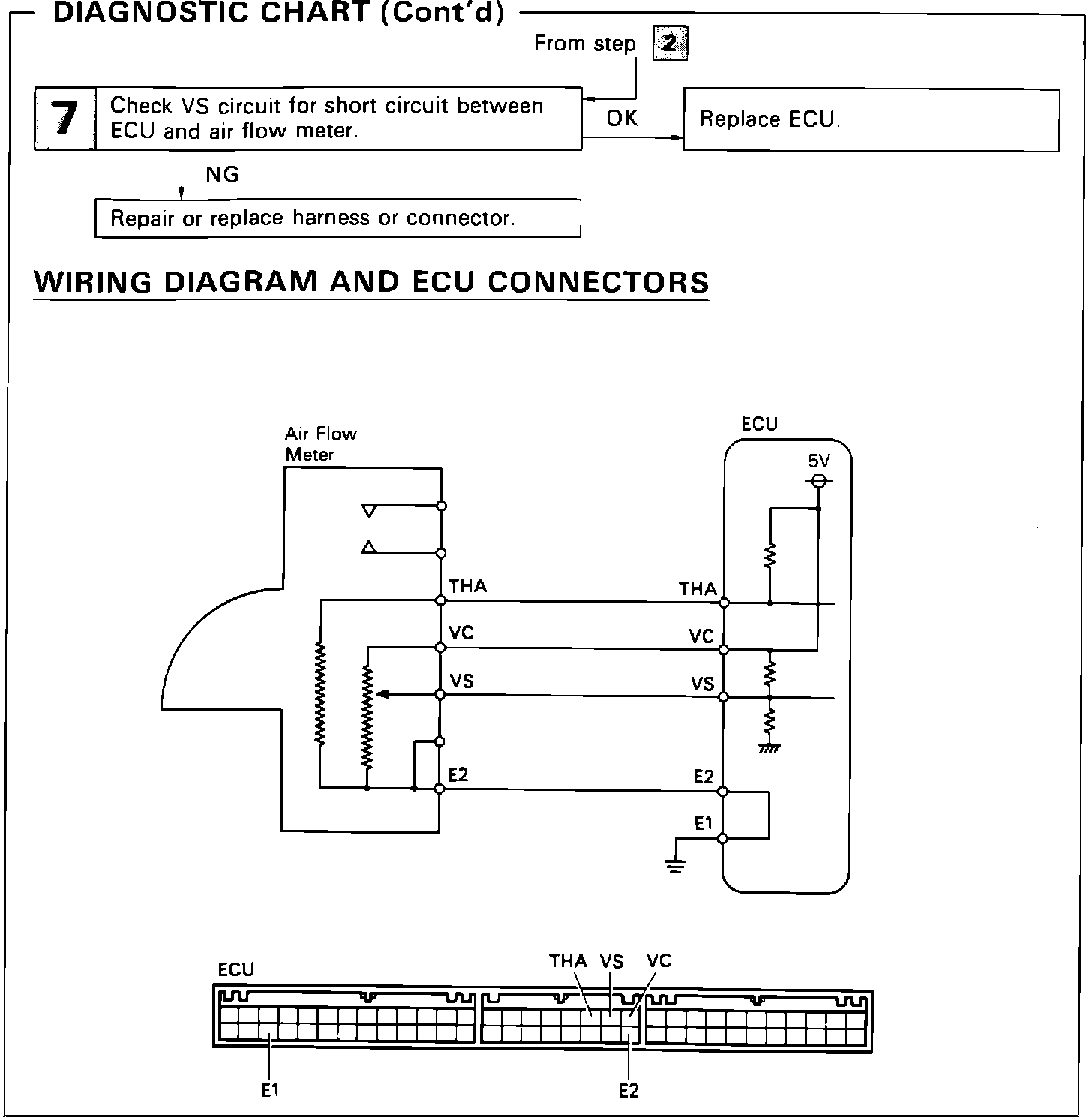

Fig. 14 Diagnostic Codes 31 & 32 (Air Flow Meter Signal, Part 3 Of 4):

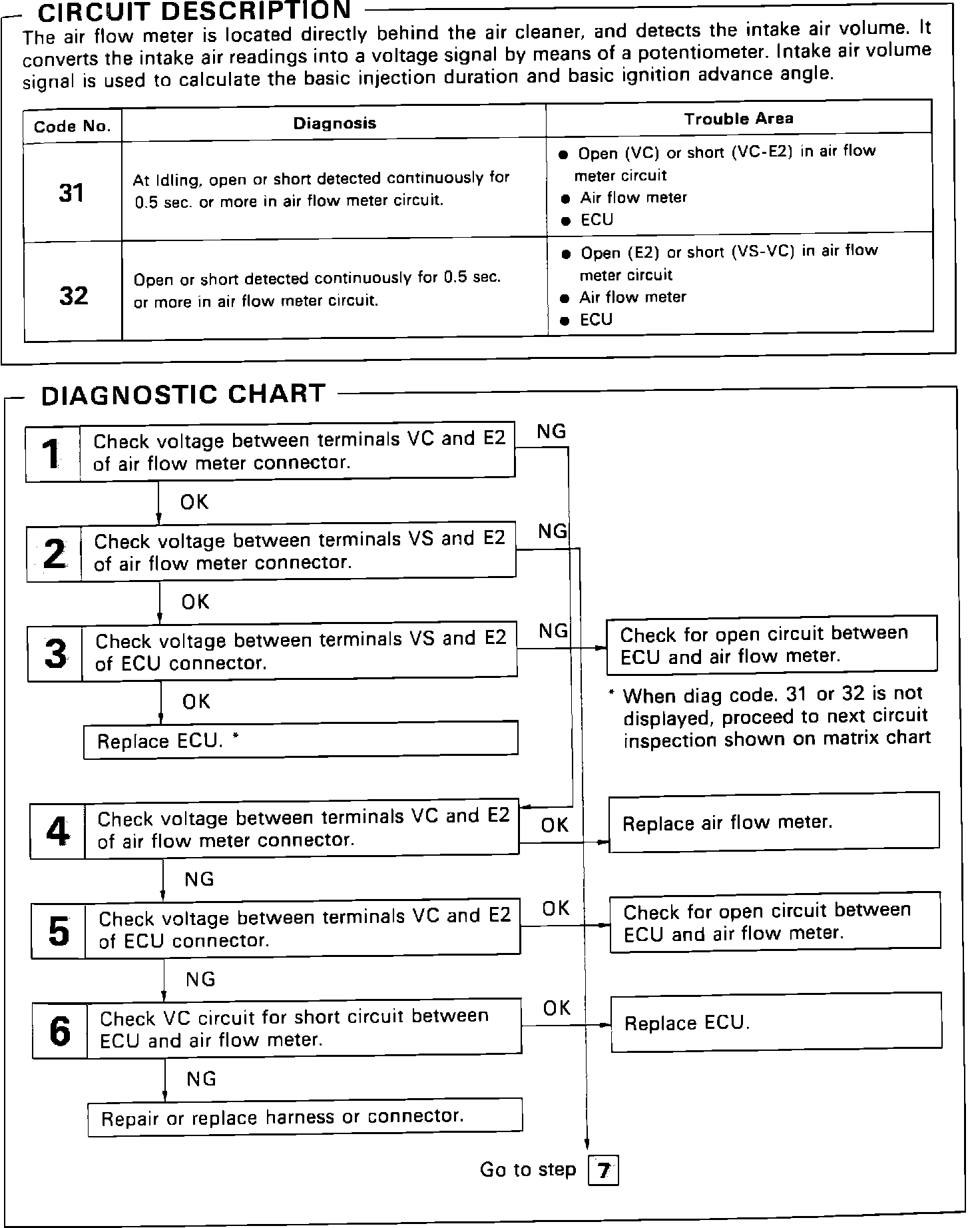

Fig. 14 Diagnostic Codes 31 & 32 (Air Flow Meter Signal, Part 4 Of 4):
