DTC 22

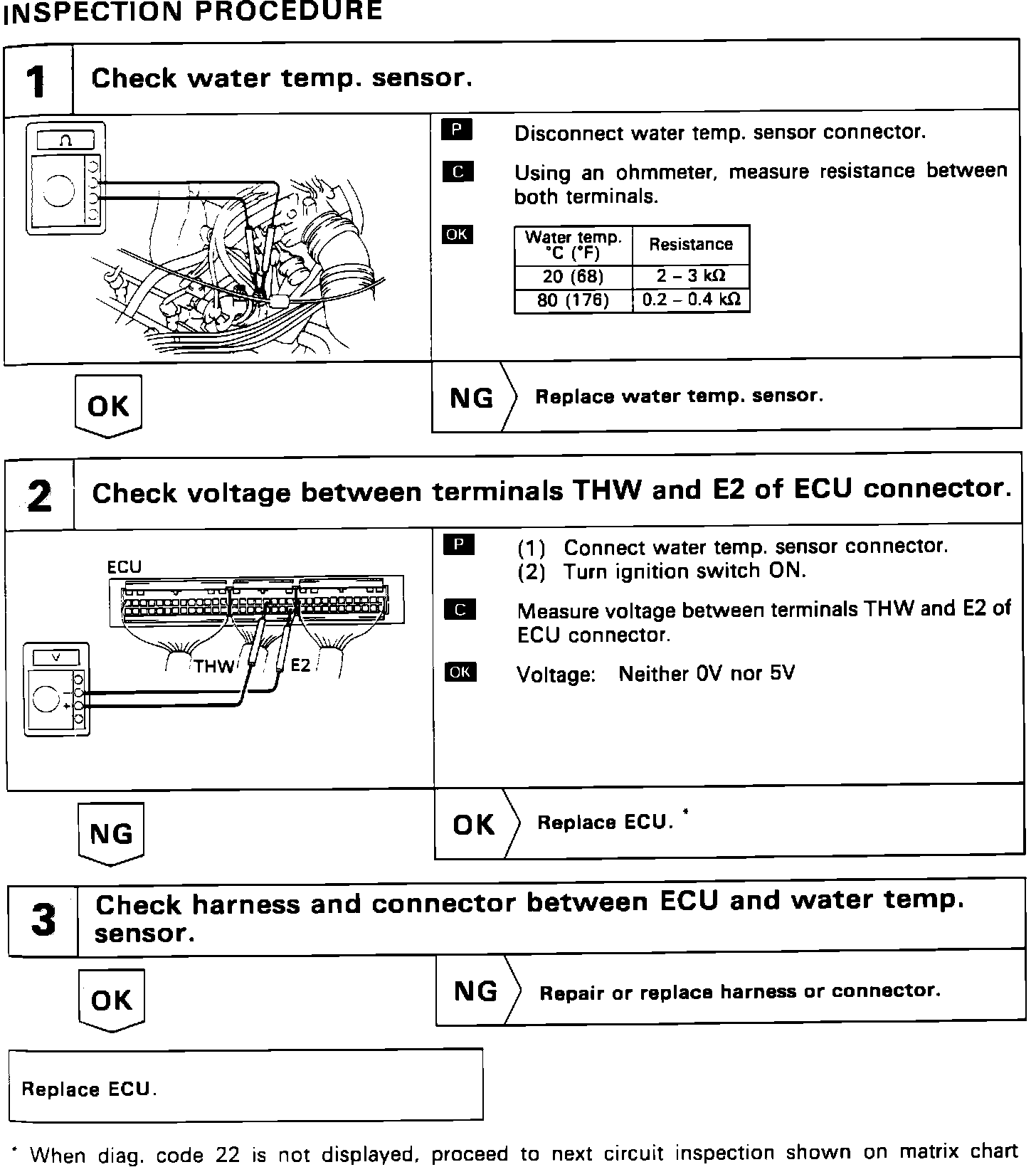

Fig. 10 Diagnostic Code 22 (Water Temperature Sensor Signal, Part 1 Of 2):



Fig. 10 Diagnostic Code 22 (Water Temperature Sensor Signal, Part 2 Of 2):
