DTC 12
DTC 12

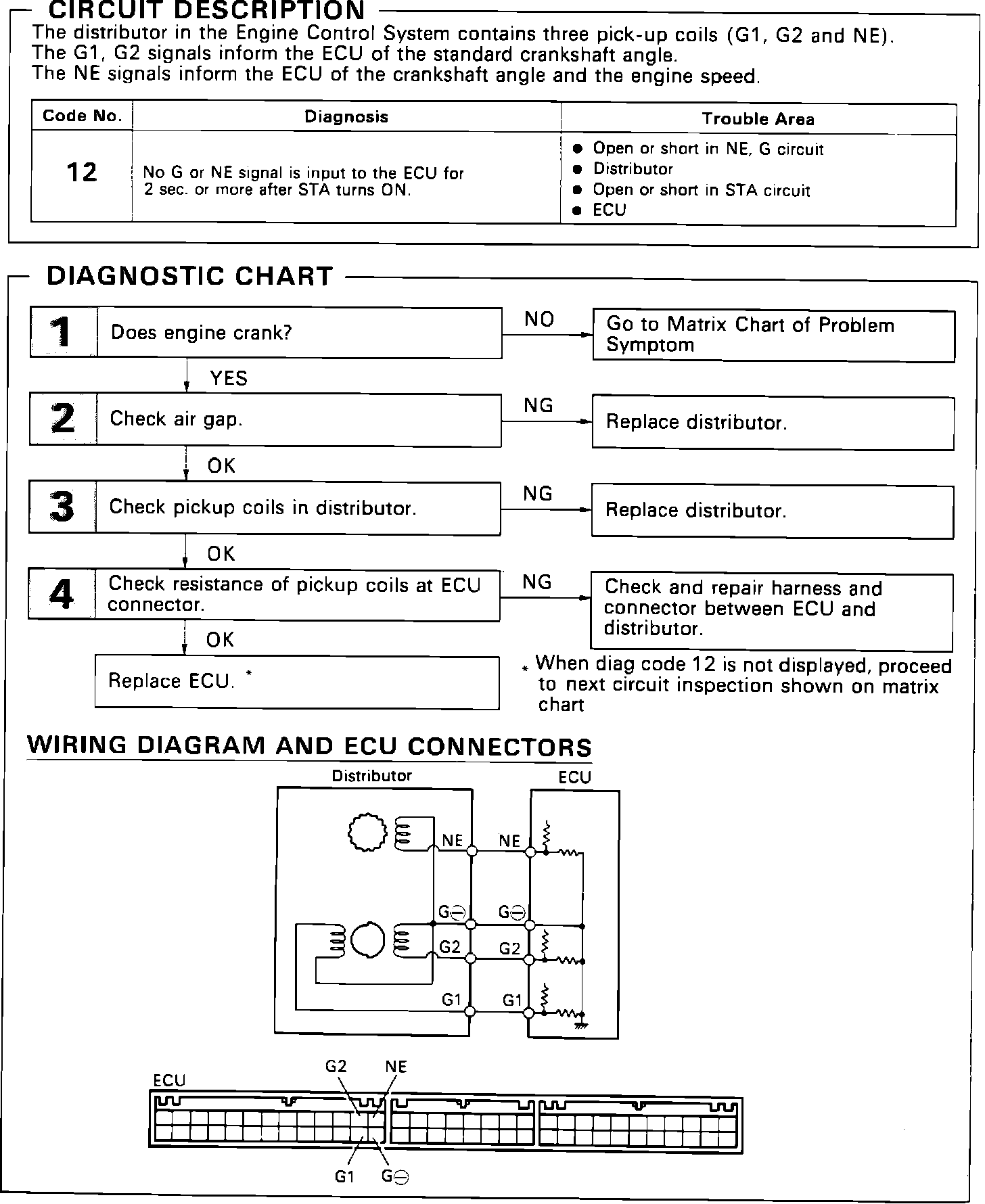

Fig. 5 Diagnostic Code 12 (RPM Signal, Part 1 Of 2):

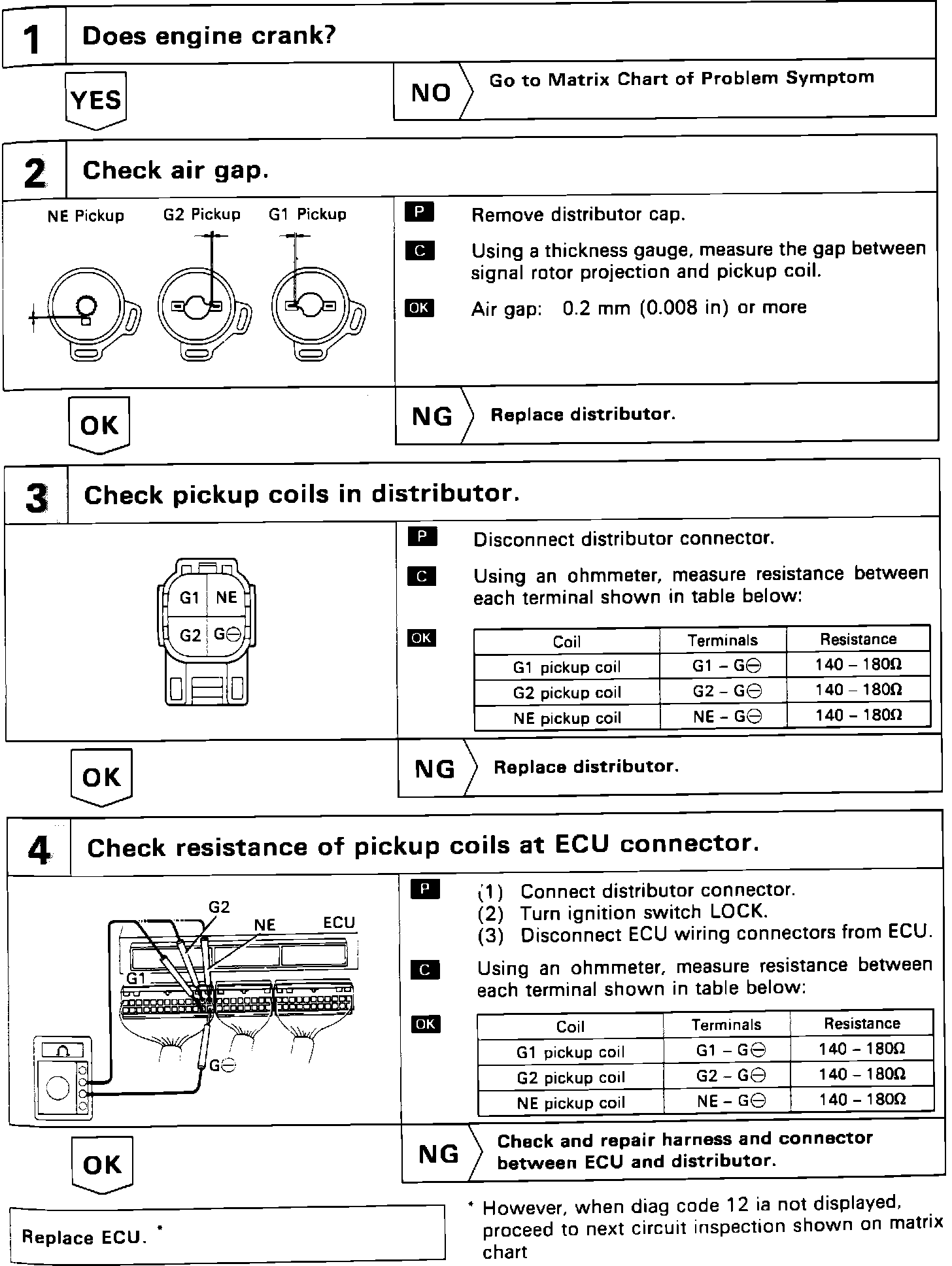

Fig. 5 Diagnostic Code 12 (RPM Signal, Part 2 Of 2):
