Home
>>
Lexus
>>
1990
>>
ES 250 V6-2.5L (2VZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
ABS (Antilock Brake System)
>>
ABS Diagnosis System
ABS Diagnosis System

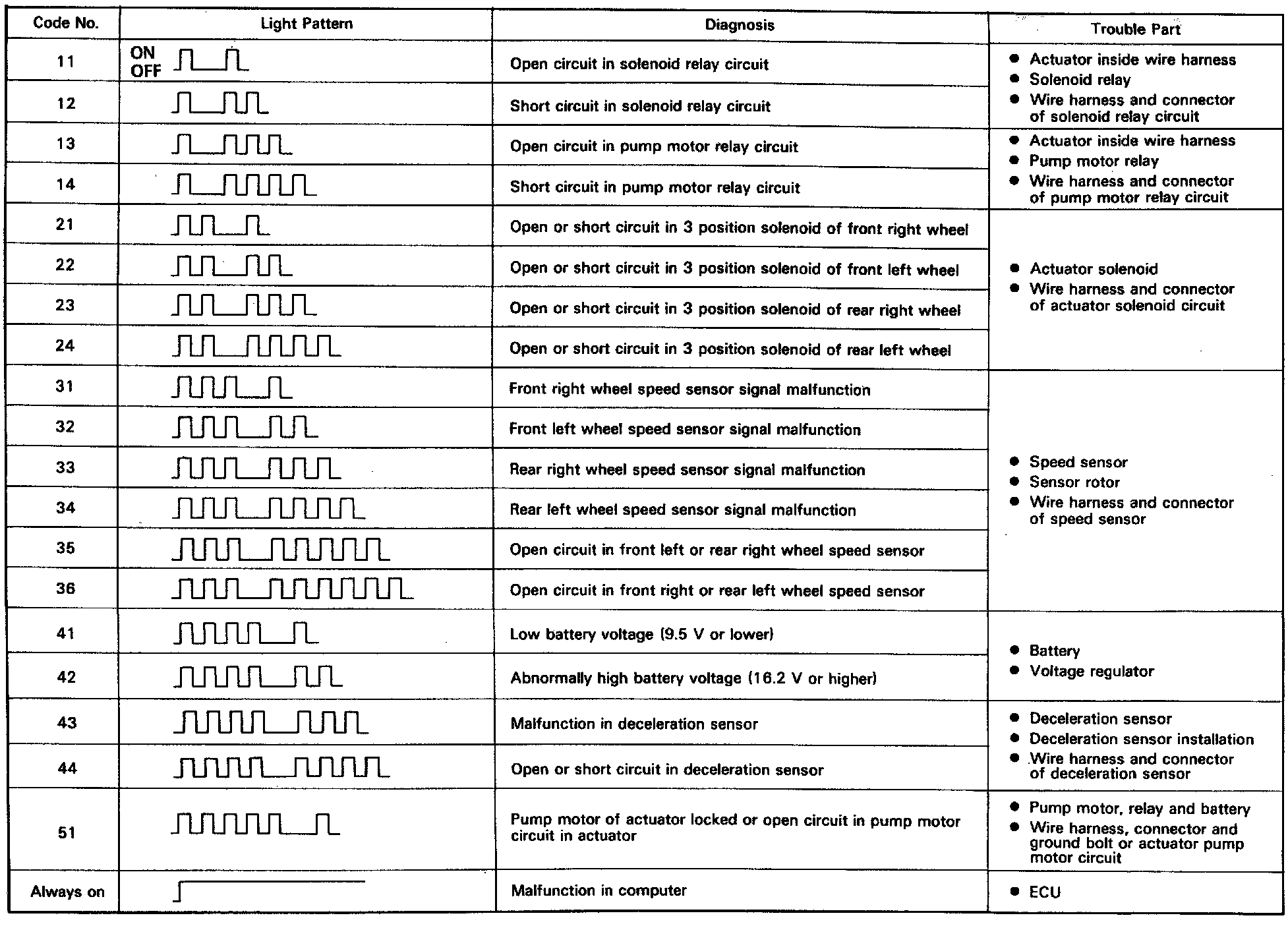

Diagnostic Codes:
