Locations
>>
U151F Automatic Transaxle System
U151F Automatic Transaxle System

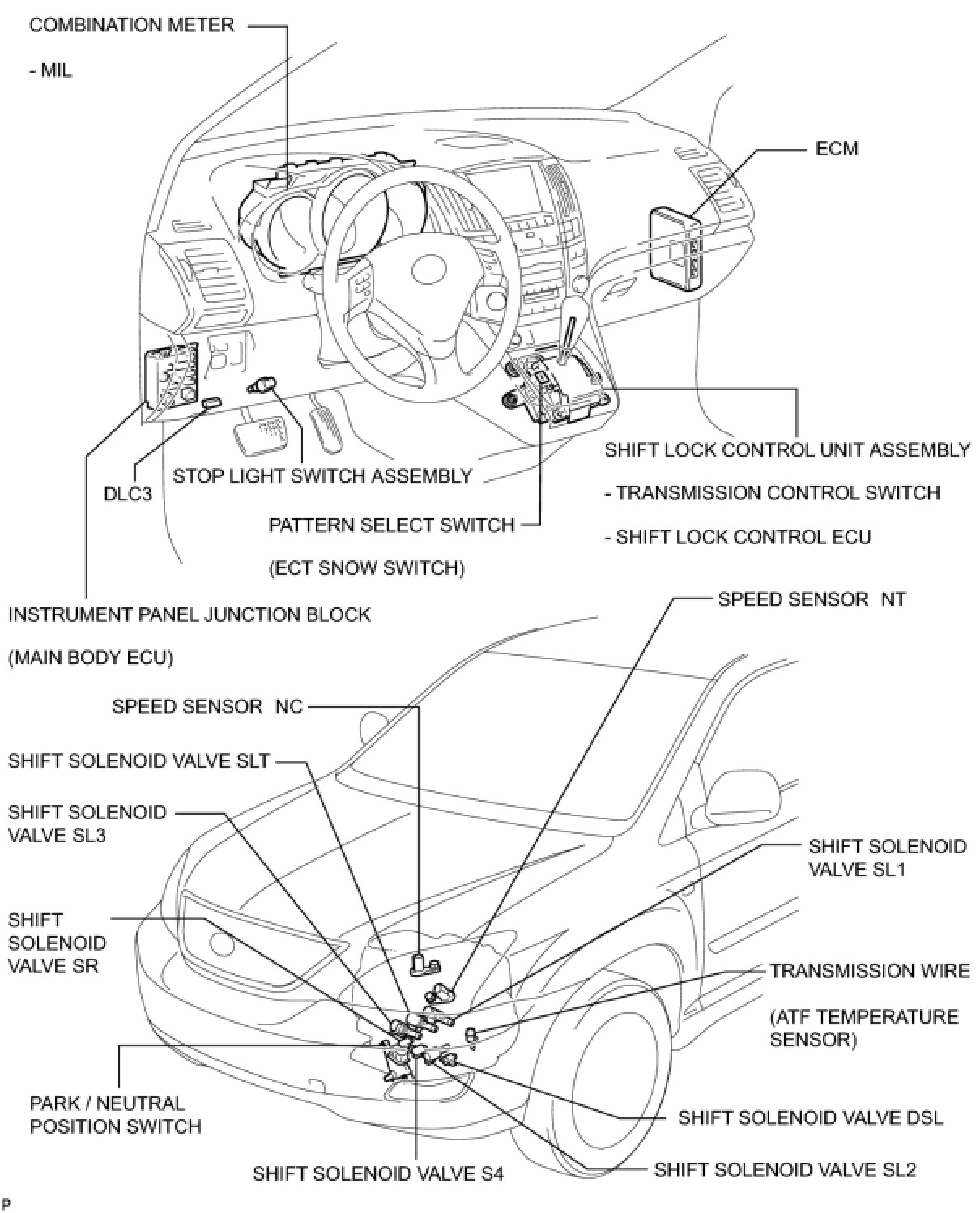

U151F AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION
PARTS LOCATION
