Disassembly and Assembly
DISASSEMBLY
REMOVE COIL SPRING

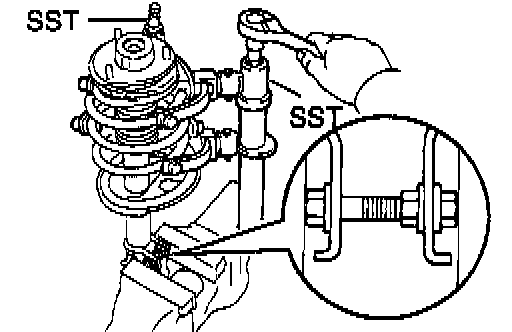

a. Install 2 nuts and a bolt to the bracket at the lower side of the shock absorber and secure it in a vise.

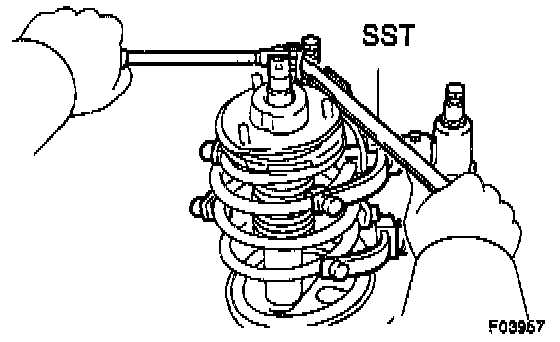

b. Using SST, compress the coil spring.
SST 09727-30021
NOTICE: Do not use an impact wrench. It will damage the SST.
HINT: Use 2 of the same type of SST.
c. Using SST to hold the spring upper seat, remove the nut.
SST 09729-22031
d. Remove the suspension support, ball bearing, spring upper seat and upper insulator.
e. Remove the coil spring, spring bumper and lower insulator.
INSPECTION
INSPECT SHOCK ABSORBER
Compress and extend the shock absorber rod and check that there is no abnormal resistance or unusual operation sound.
If there is any abnormality, replace the shock absorber with a new one.
NOTICE: When disposing of the shock absorber, see DISPOSAL.
DISPOSAL
1. FULLY EXTEND SHOCK ABSORBER ROD
2. DRILL HOLE TO DISCHARGE GAS FROM CYLINDER
Using a drill, make a hole in the cylinder, as shown in the illustration to discharge the gas inside.
CAUTION: The discharging gas is harmless, but be careful of chips which may fly up when drilling.
REASSEMBLY
1. INSTALL LOWER INSULATOR ONTO SHOCK ABSORBER
2. INSTALL SPRING BUMPER TO PISTON ROD
3. INSTALL COIL SPRING
a. Using SST, compress the coil spring.
SST 09727-30021
NOTICE: Do not use an impact wrench. It will damage the SST.
HINT: Use 2 of the same type of SST.
b. Install the coil spring to the shock absorber.
HINT: Fit the lower end of the coil spring into the gap of the spring lower seat.

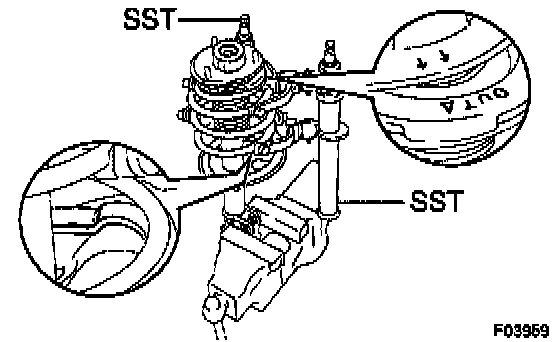

4. INSTALL UPPER INSULATOR, SPRING UPPER SEAT, BEARING AND SUSPENSION SUPPORT
a. Install the upper insulator.
b. Install the spring upper seat to the shock absorber with the mark facing to the outside of the vehicle.
c. Install the ball bearing.
d. Install the suspension support with the mark facing to the outside of the vehicle.
e. Using SST to hold the spring upper seat, install a new nut.
SST 09729-22031
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
f. Remove the SST from the coil spring.
SST 09727-30021
