Electrical Diagrams

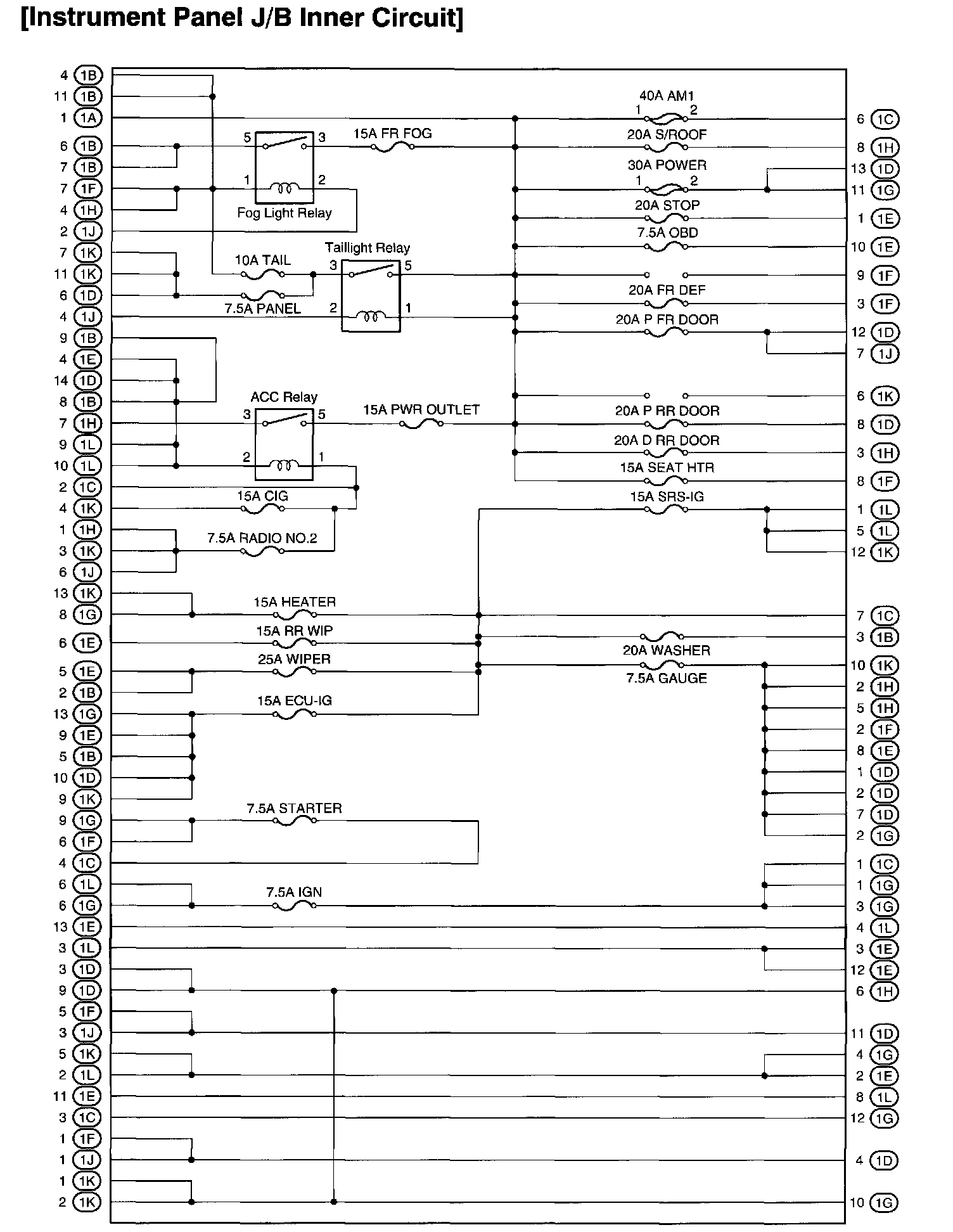

Instrument Panel J/B Inner Circuit:

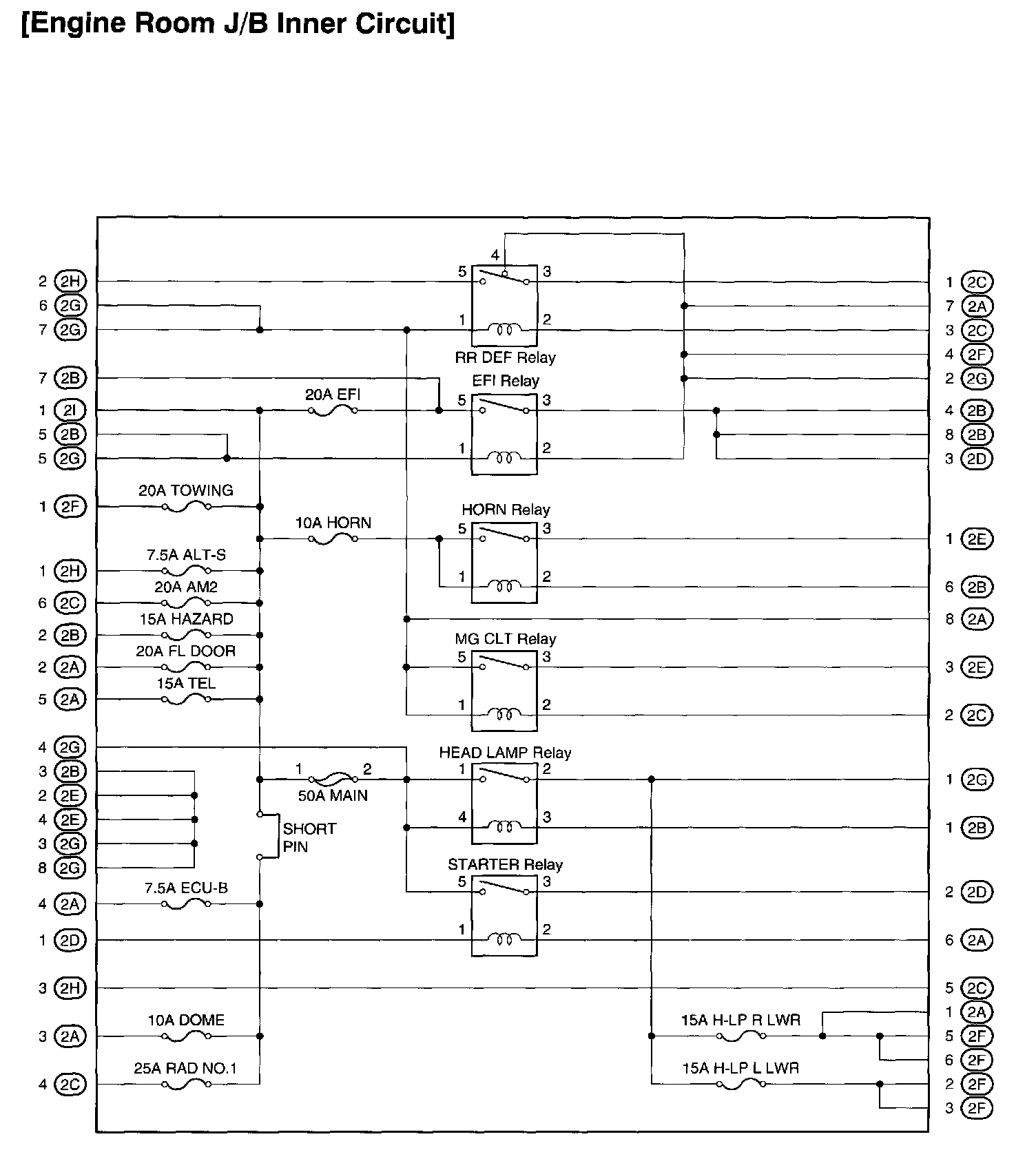

Engine Room J/B Inner Circuit:

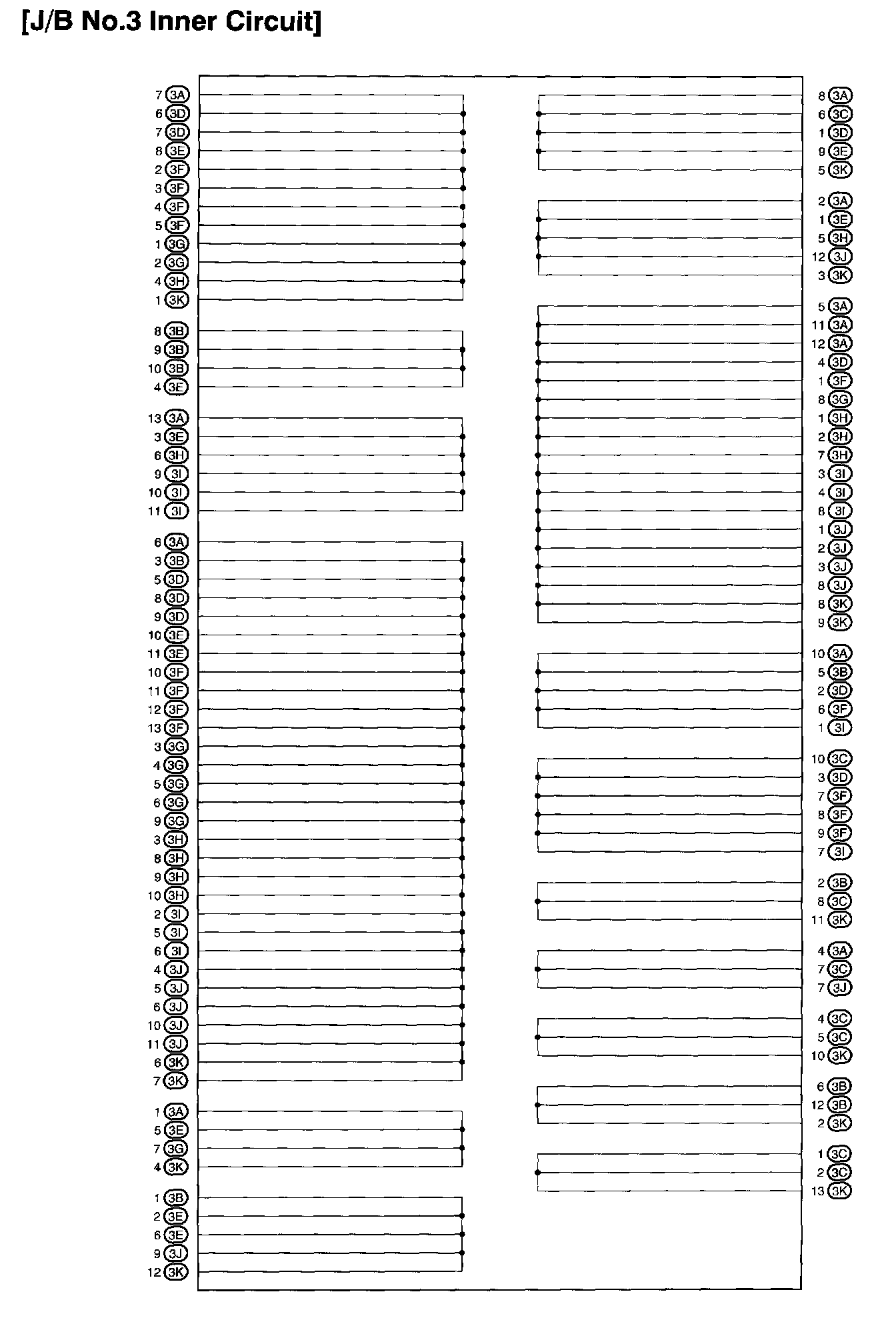

J/B No.3 Inner Circuit:

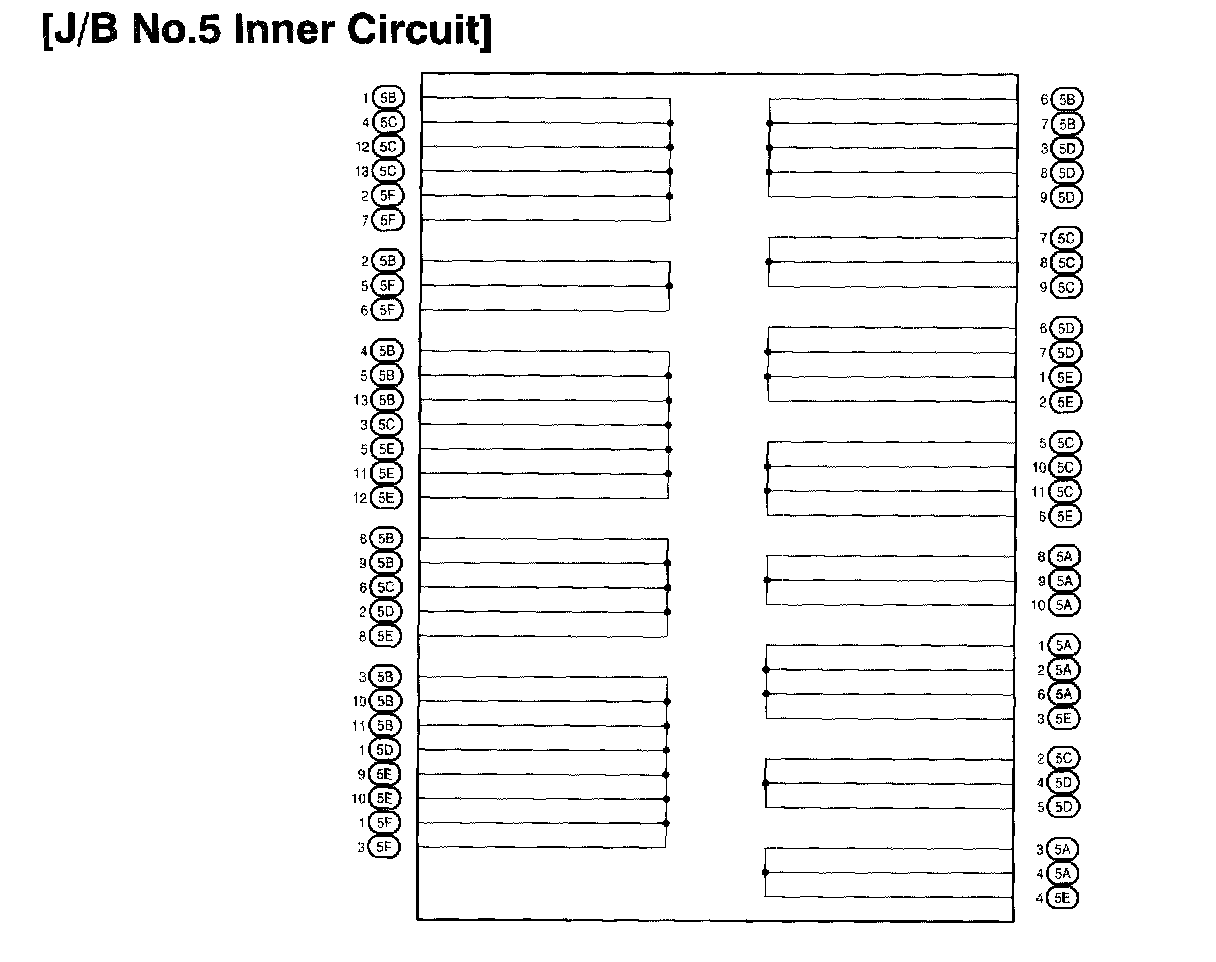

J/B No.5 Inner Circuit:
