Multiple Junction Connector: Locations

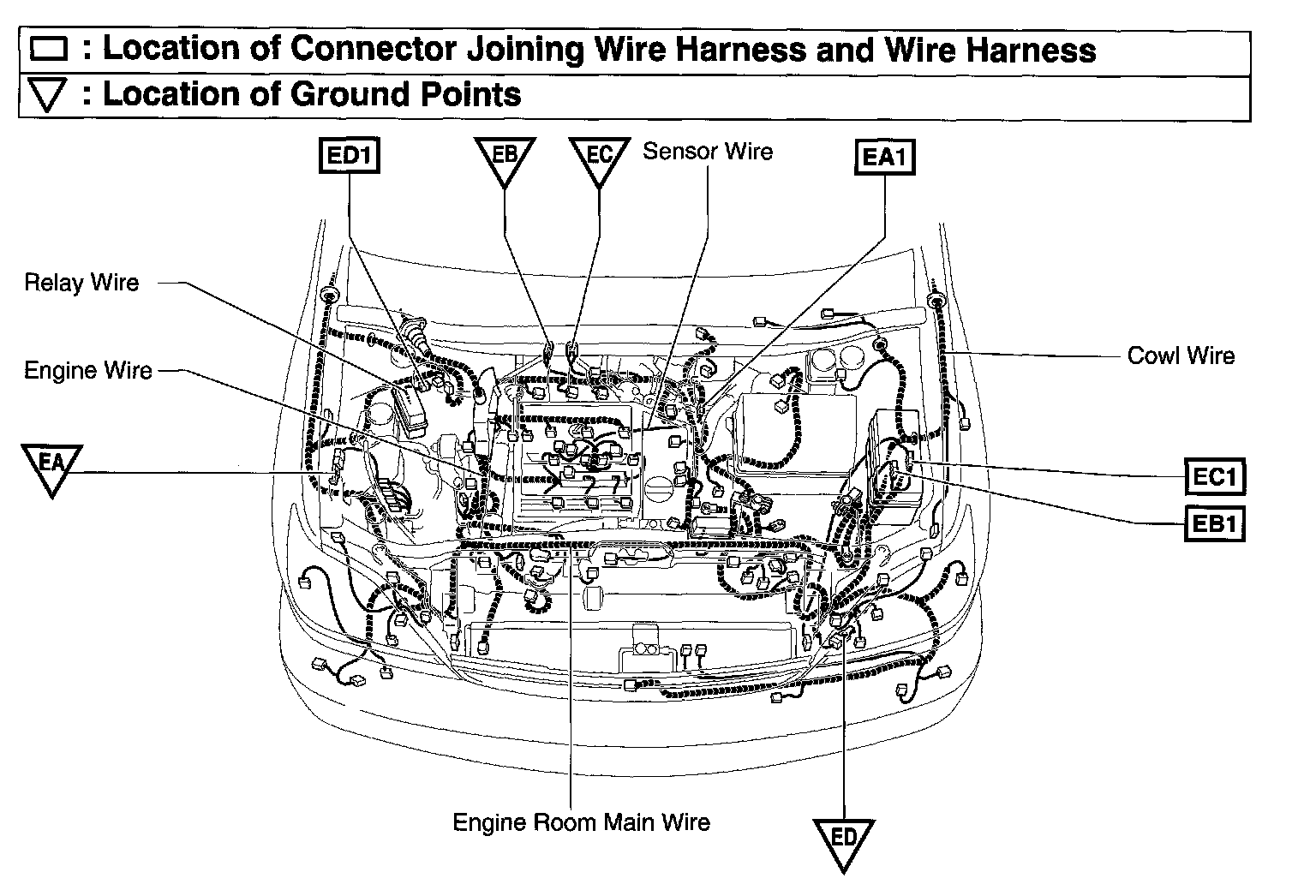

EA1 - ED1, EA - ED:

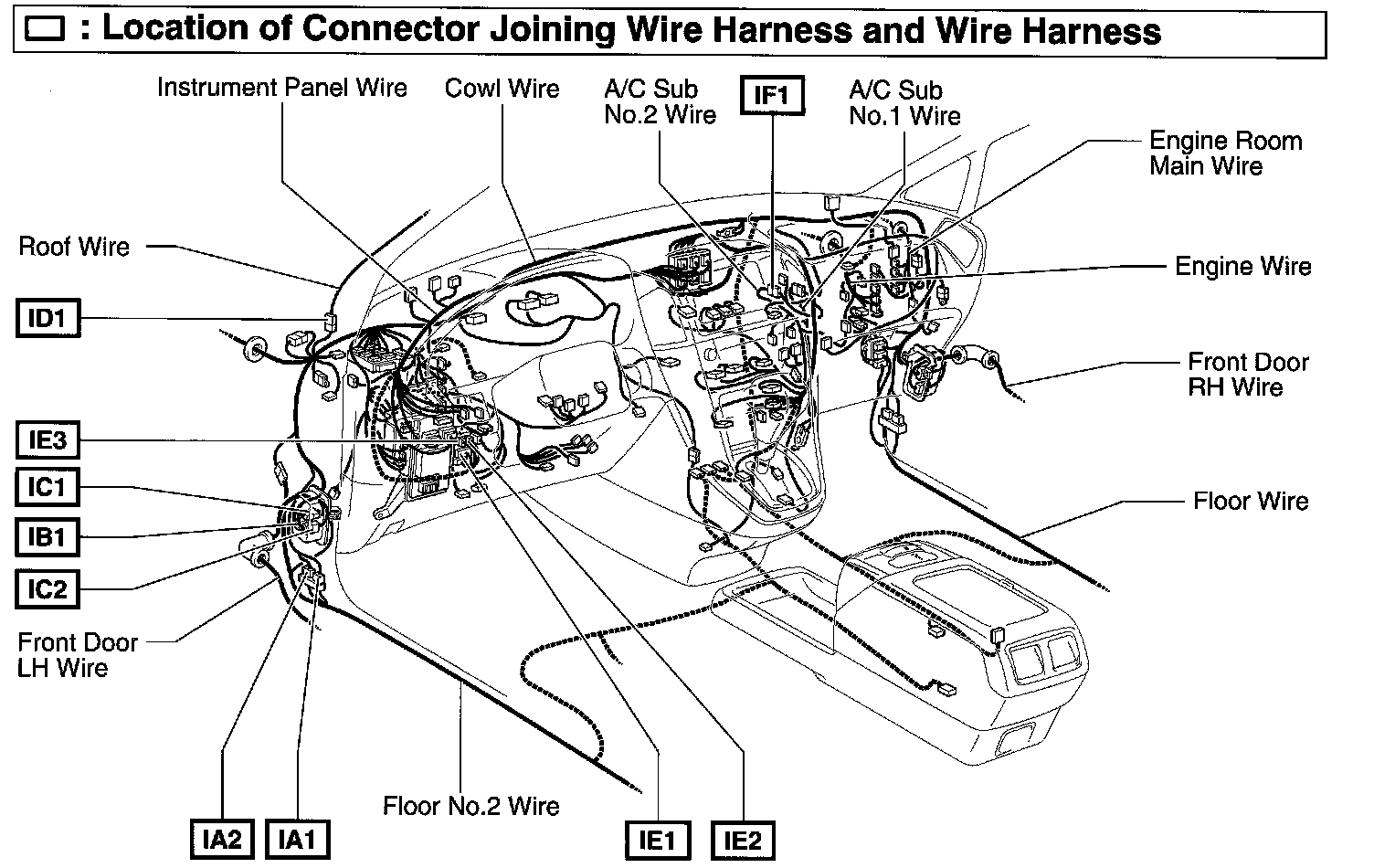

IA1 - IF1:

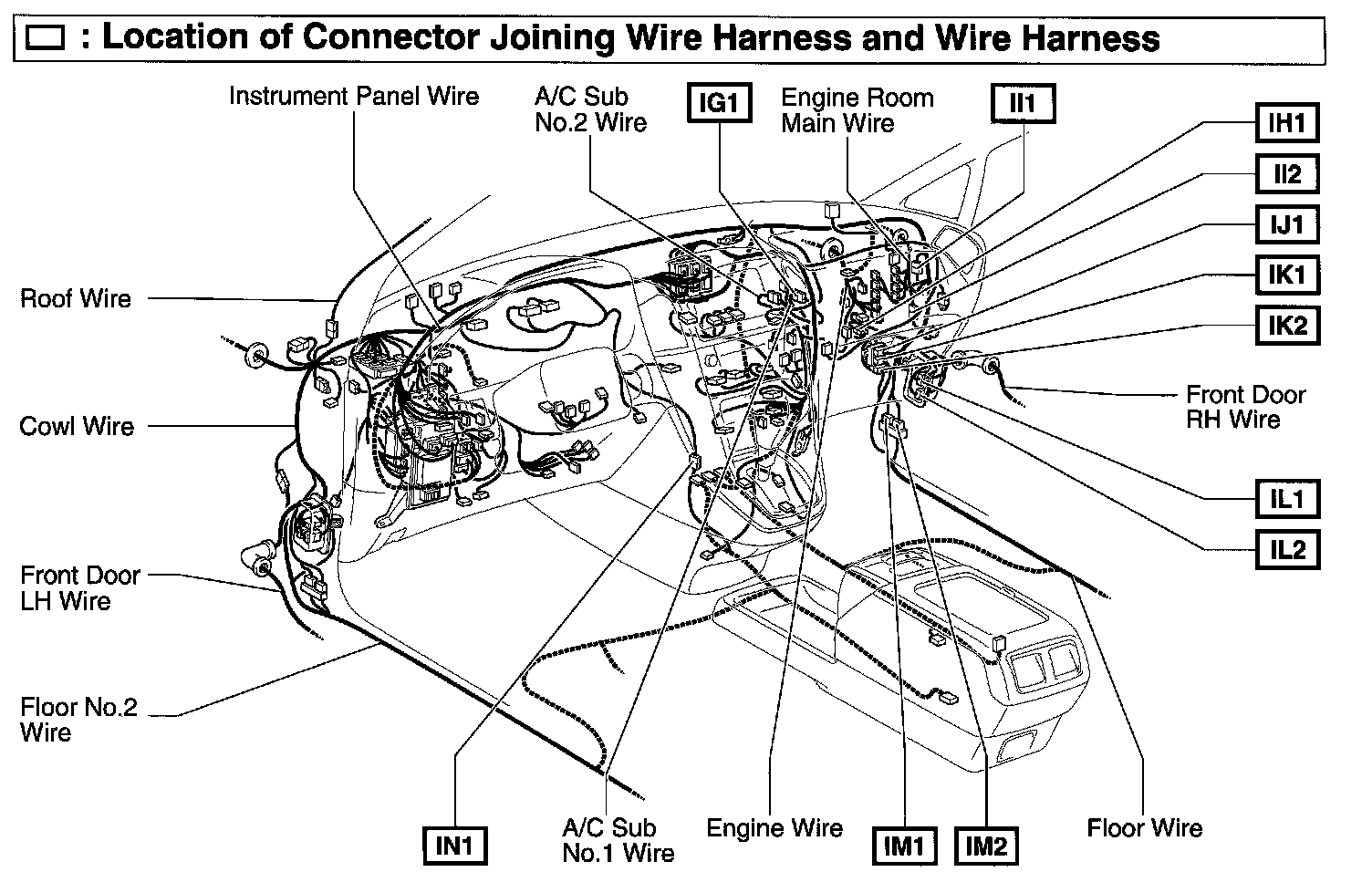

IG1 - IN1:

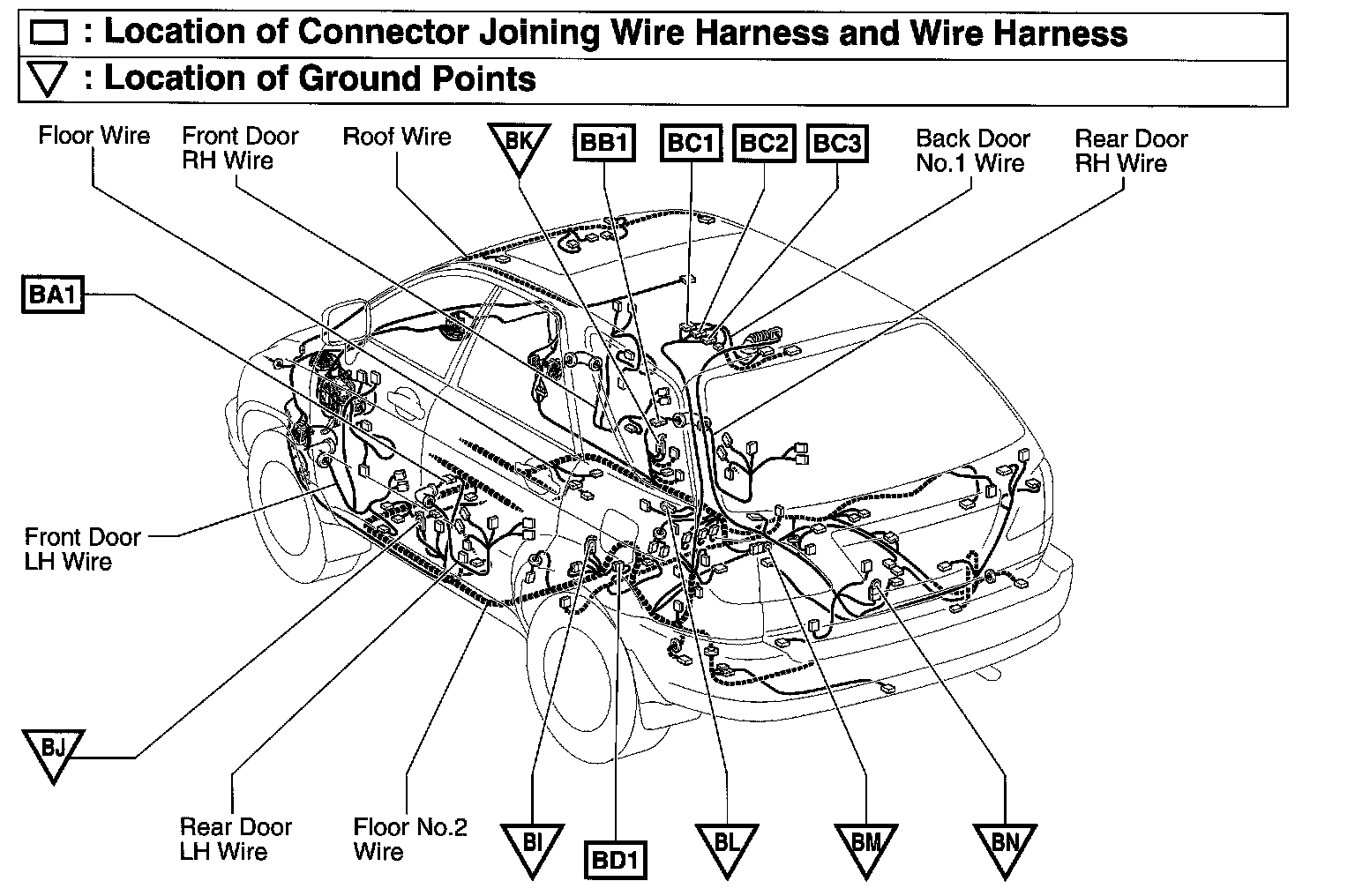

BA1 - BD1, BI - BN:

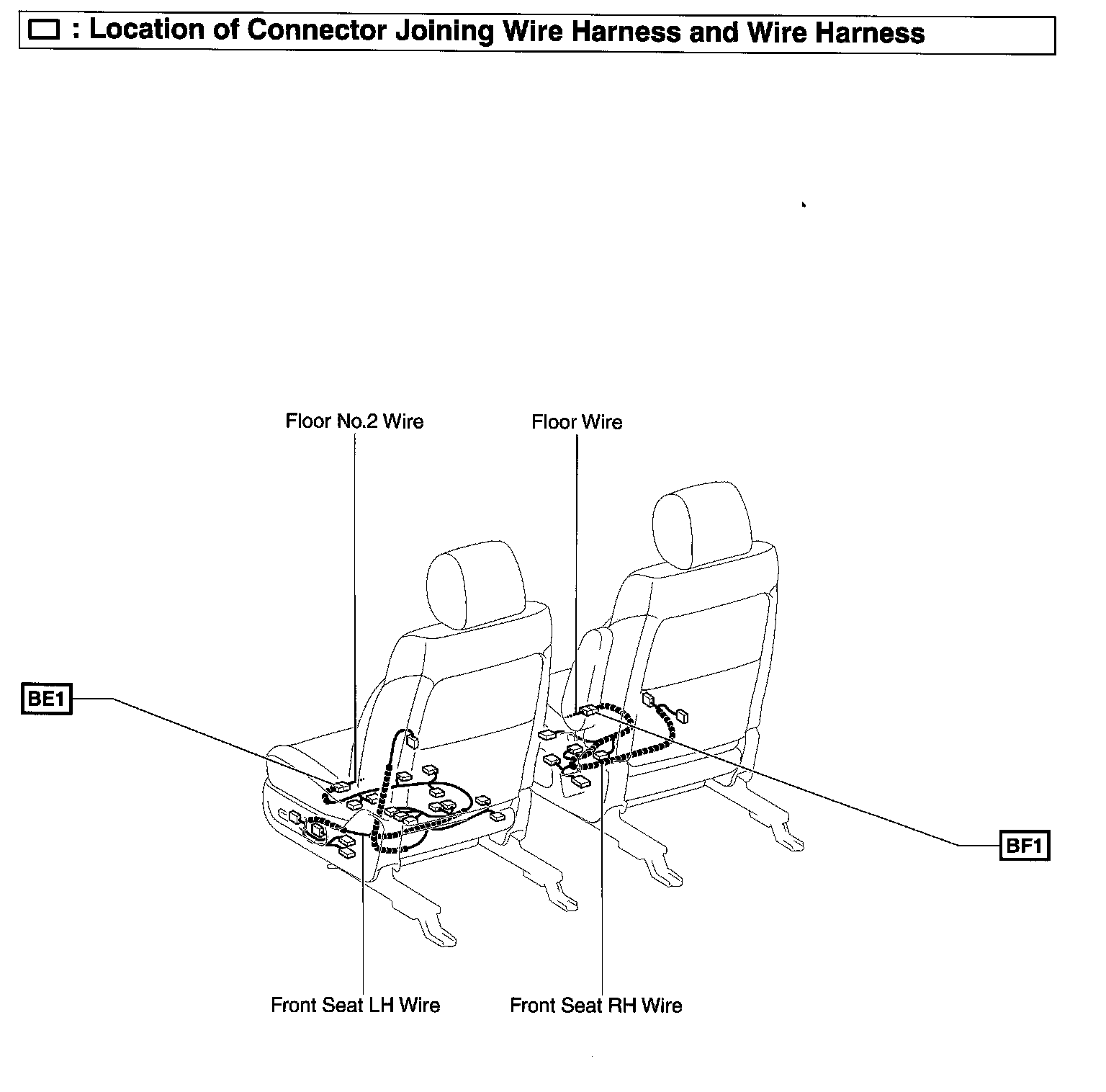

BE1 - BF1:
