Lexus Truck
>>
2003
>>
RX 300 AWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Instrument Panel J/B

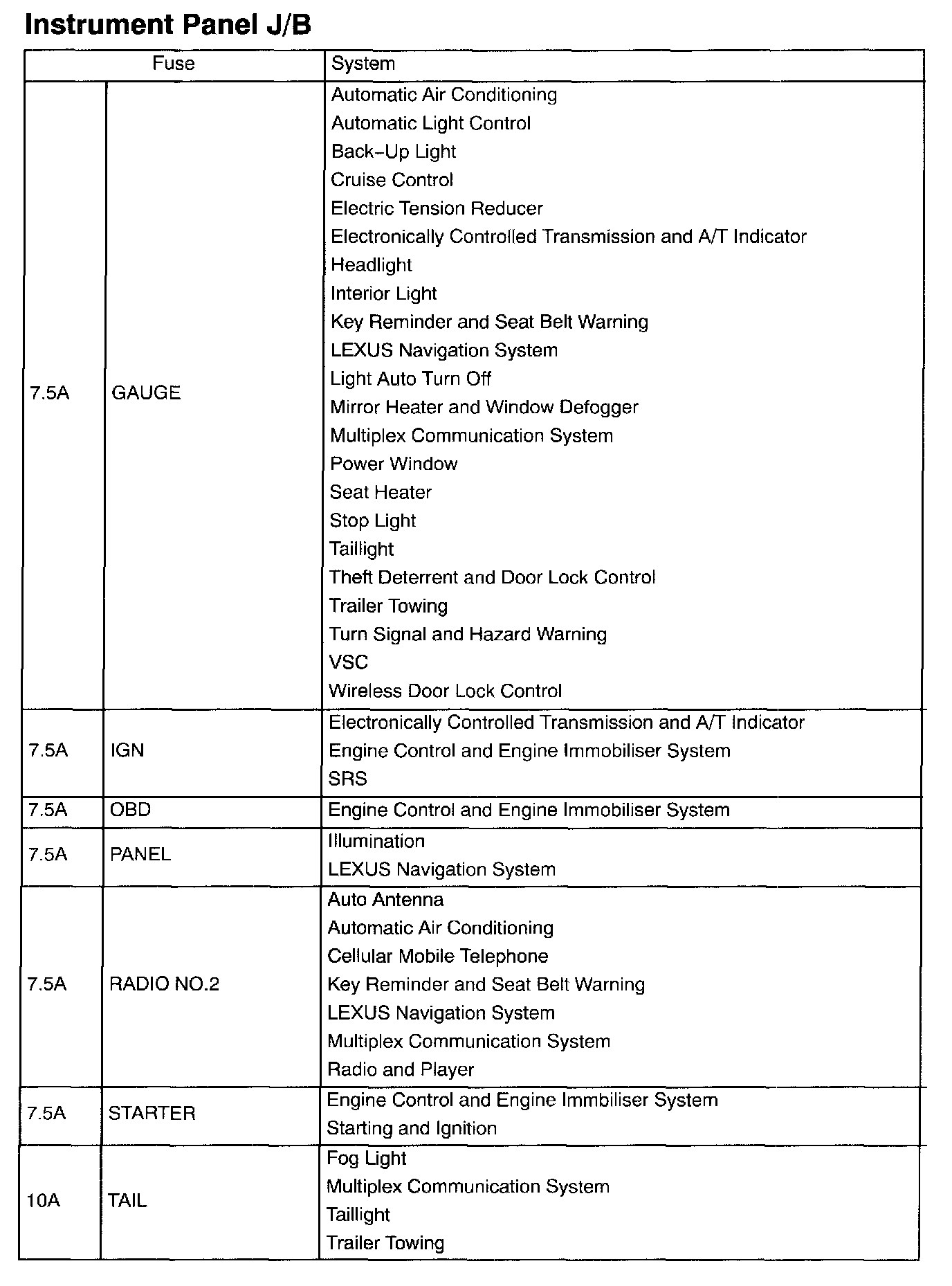

Instrument Panel J/B

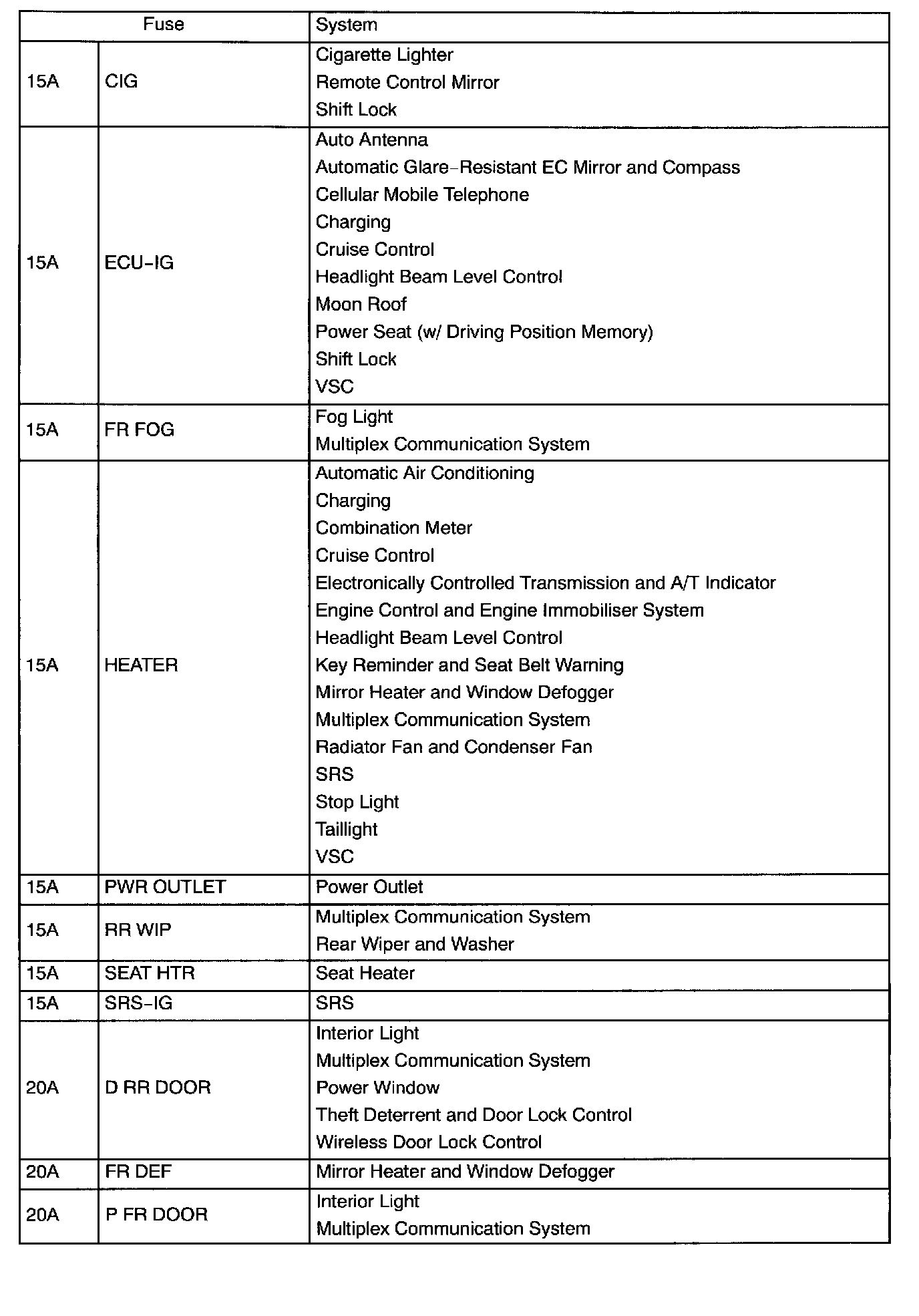

Instrument Panel J/B Part-1:
Instrument Panel J/B Part-2:
Instrument Panel J/B Part-3:
