Yaw Rate Sensor: Testing and Inspection

Yaw Rate Sensor Zero Point Calibration

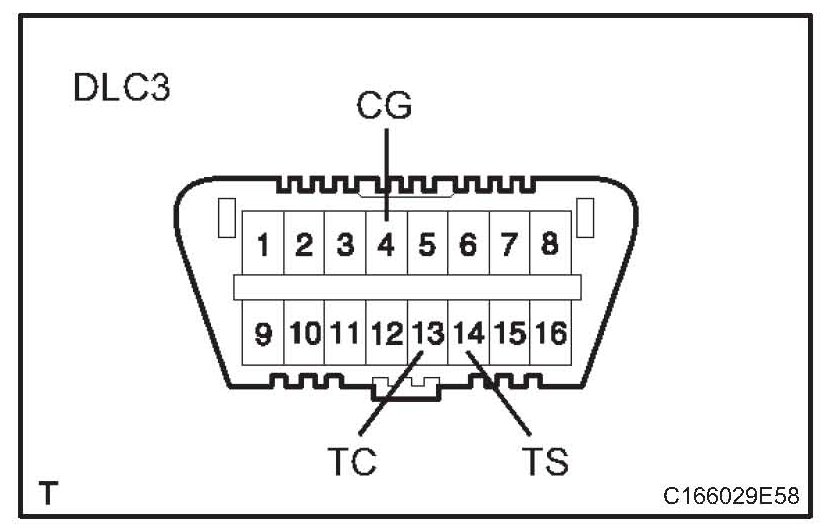

(1) Shift the shift lever into P position and turn the ignition switch ON, repeat connecting and releasing Ts and CG terminals of DLC3 4 times or more for 8 sec.

HINT:
When operation (1) is performed, the DTC is deleted.

(2) Do not move the vehicle for 15 sec. or more.

HINT:
At this time the VSC warning light is on for 15 sec. and goes off, and the zero point calibration for the yaw rate sensor is completed.
