Home >> Lexus Truck >> 2003 >> RX 300 AWD V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters



Terminals Of ECM/Pinouts

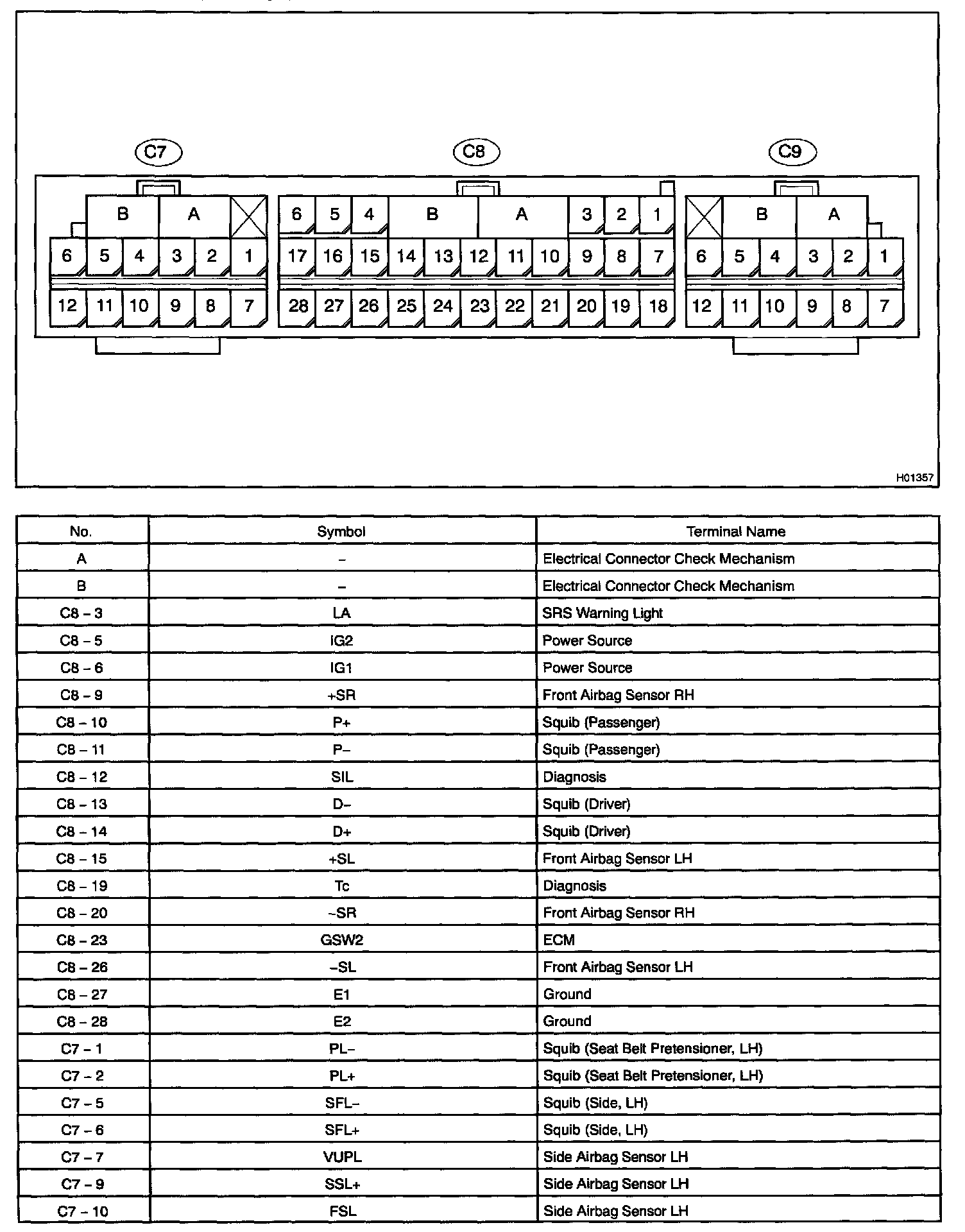

Terminals Of ECM/Pinouts Part 1:

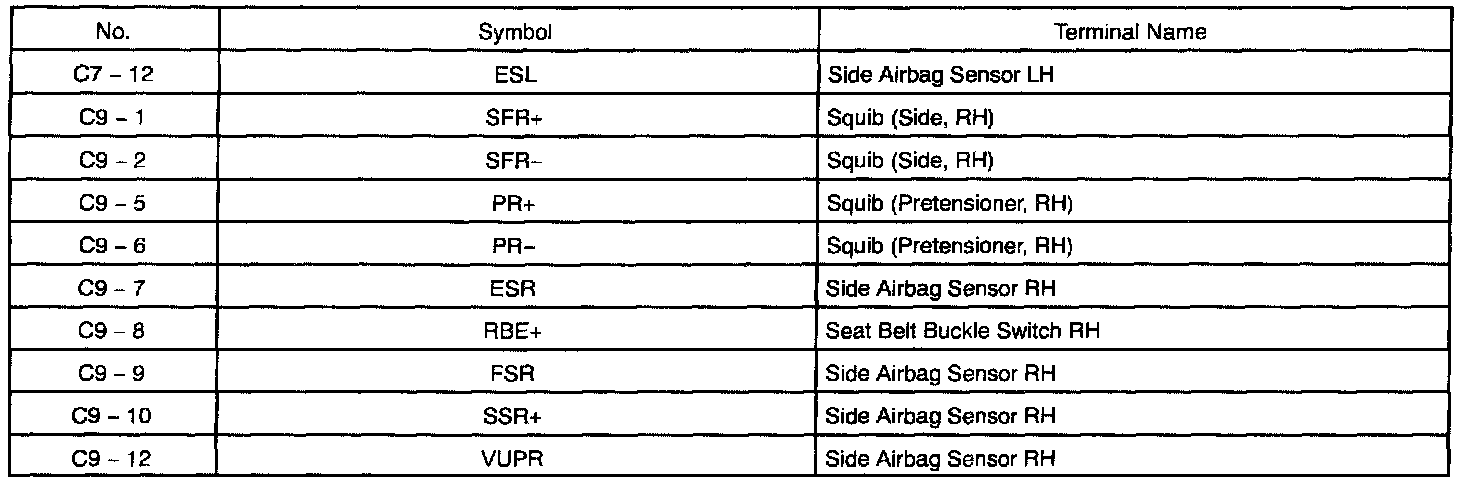

Terminals Of ECM/Pinouts Part 2:
