Catalytic Converter: Locations

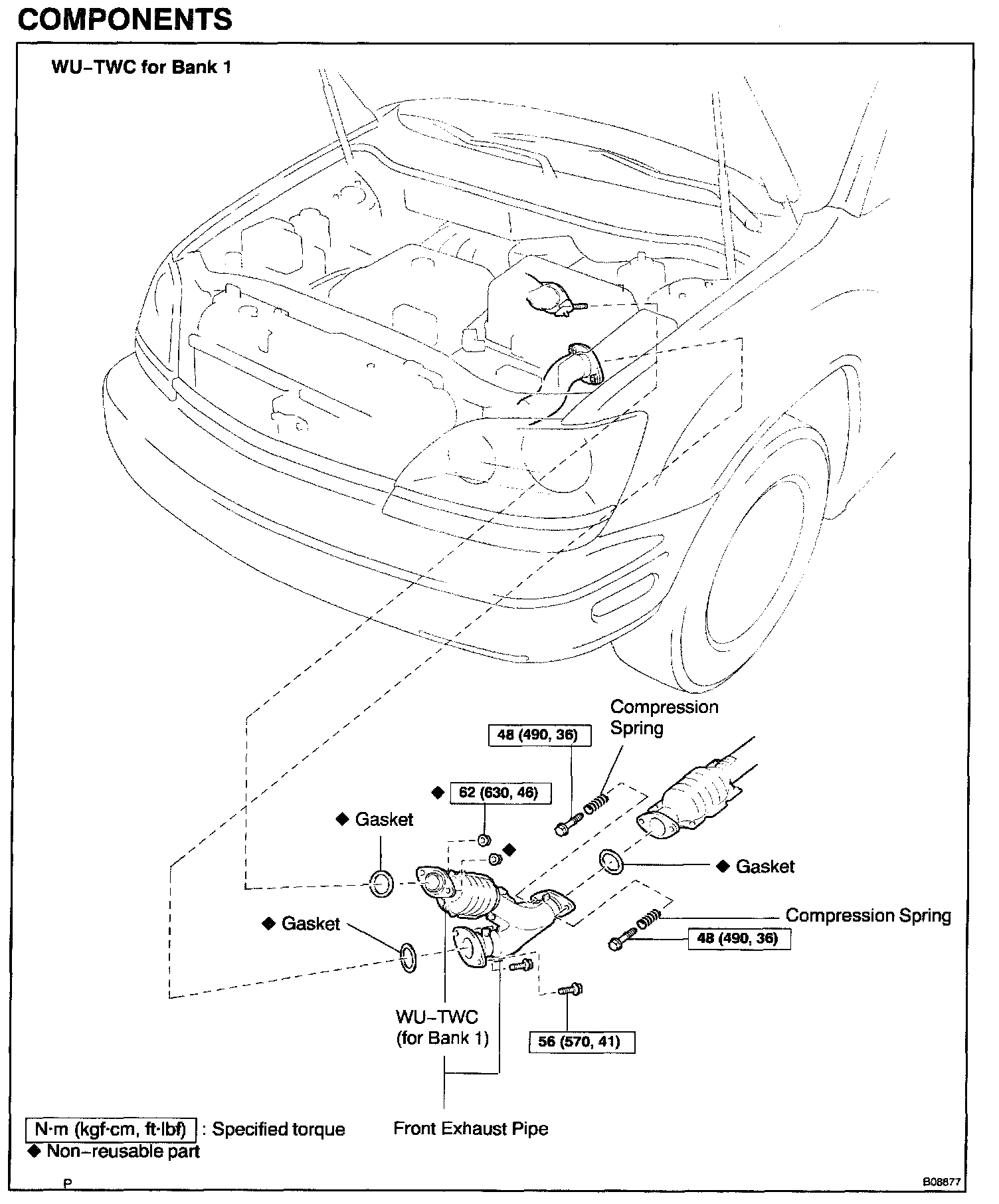

Warm Up Three-Way Catalytic Converter (WU-TWC) System:

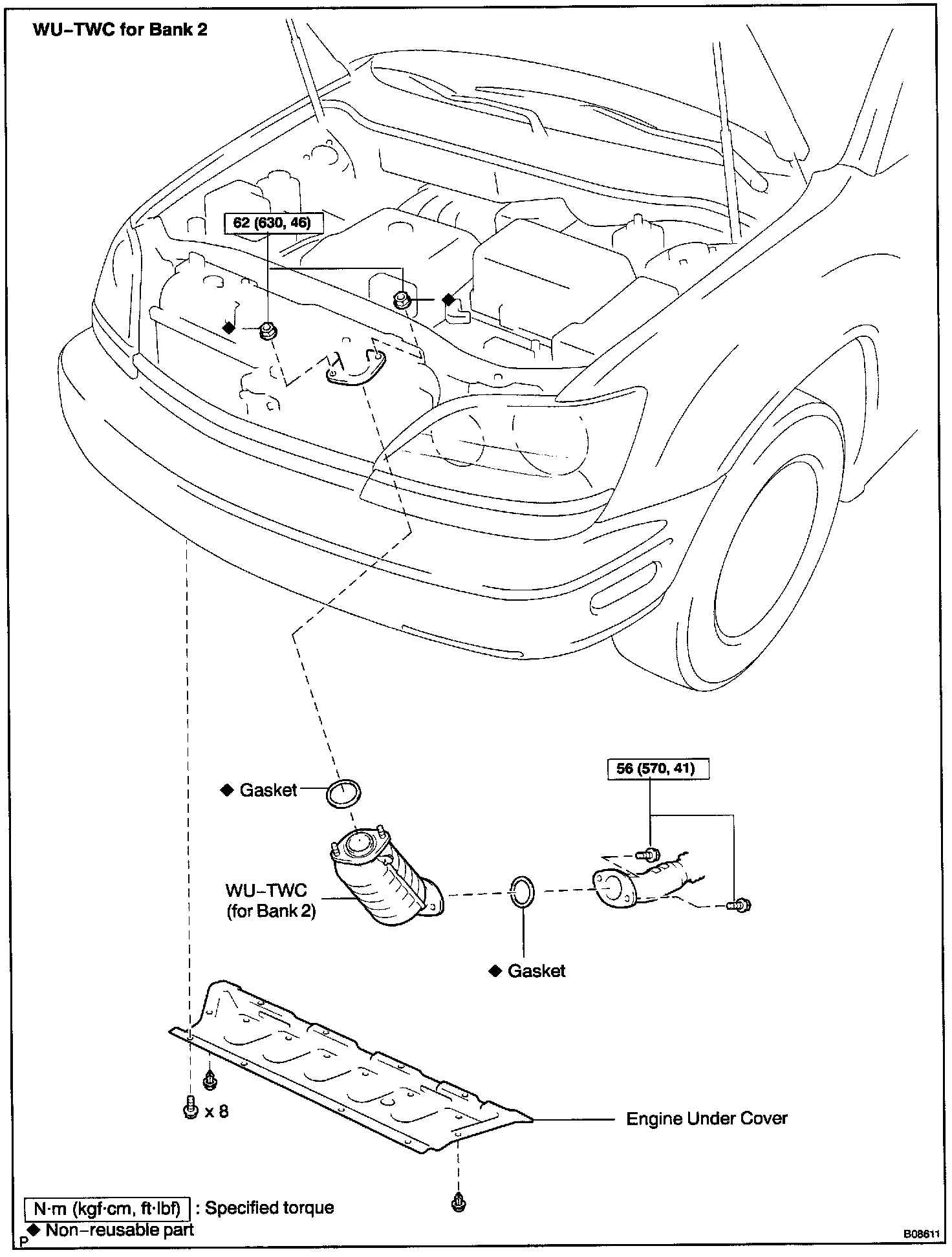

Warm Up Three-Way Catalytic Converter (WU-TWC) System:

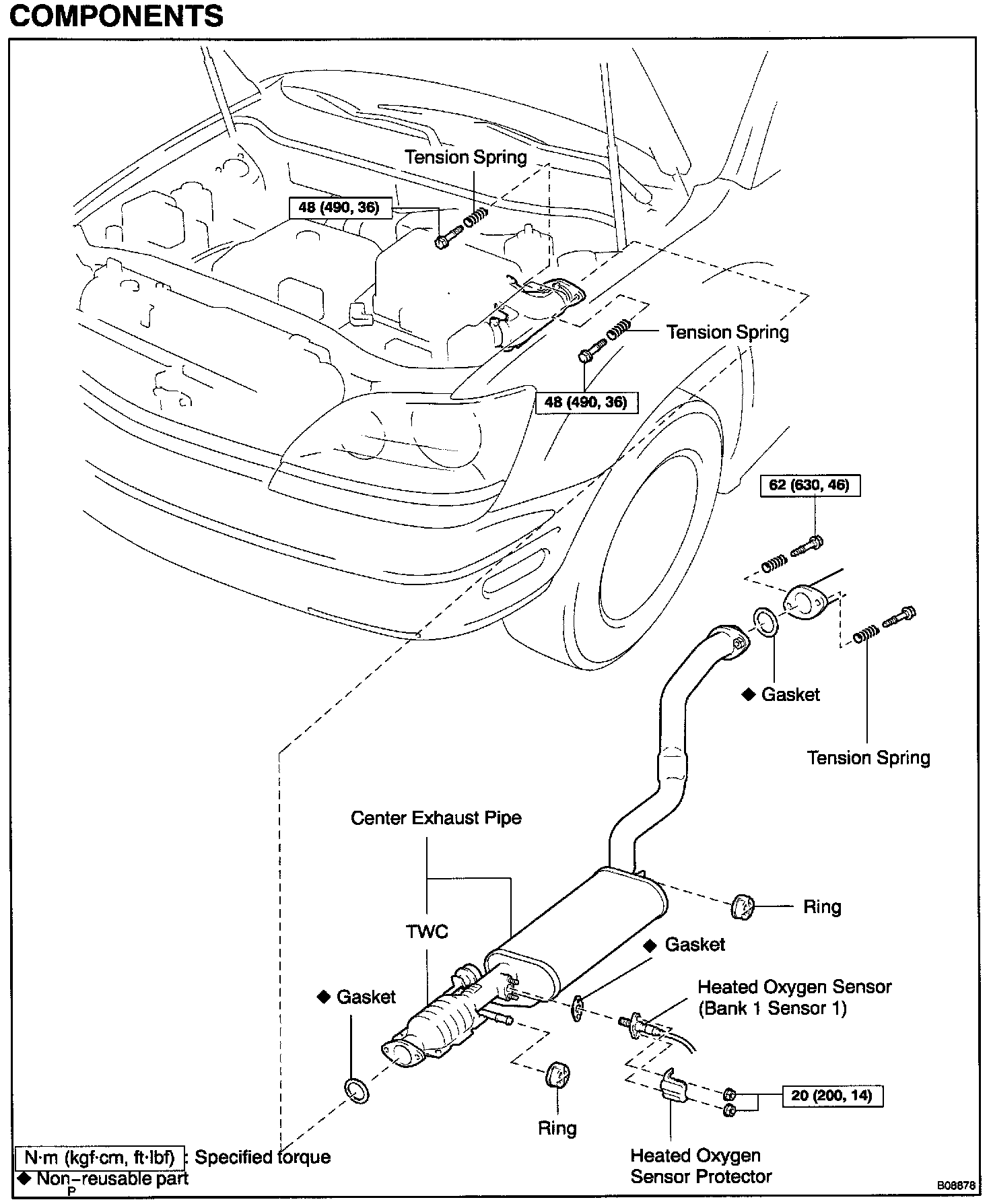

Three-Way Catalytic Converter (TWC) System:
