Air Door Actuator / Motor: Testing and Inspection

AIR OUTLET SERVOMOTOR

INSPECTION

1. REMOVE THESE PARTS:
a. Cowl side trim RH
b. Front door scuff plate RH
c. No.2 under cover
d. Lower No.2 panel

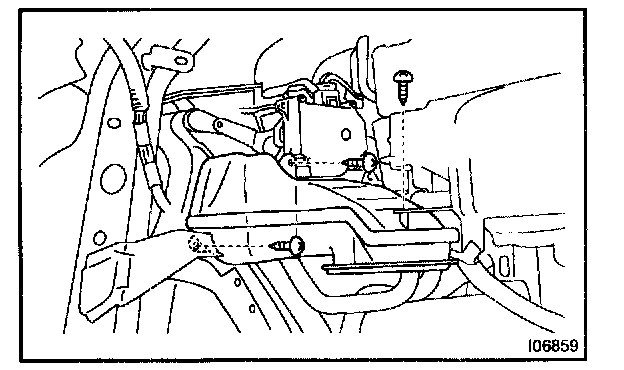

2. REMOVE AIR OUTLET SERVOMOTOR
a. Remove the 3 screws and air duct.




b. Remove the 2 screws and servomotor.

3. INSPECT AIR OUTLET SERVOMOTOR OPERATION
4. INSPECT AIR OUTLET DAMPER POSITION SENSOR
5. INSTALL AIR OUTLET SERVOMOTOR
6. INSTALL AIR DUCT

7. INSTALL THESE PARTS:
a. Lower No.2 panel
b. No.2 under cover
c. Front door scuff plate RH
d. Cowl side trim RH
