Lexus Truck
>>
2003
>>
RX 300 AWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
Splices

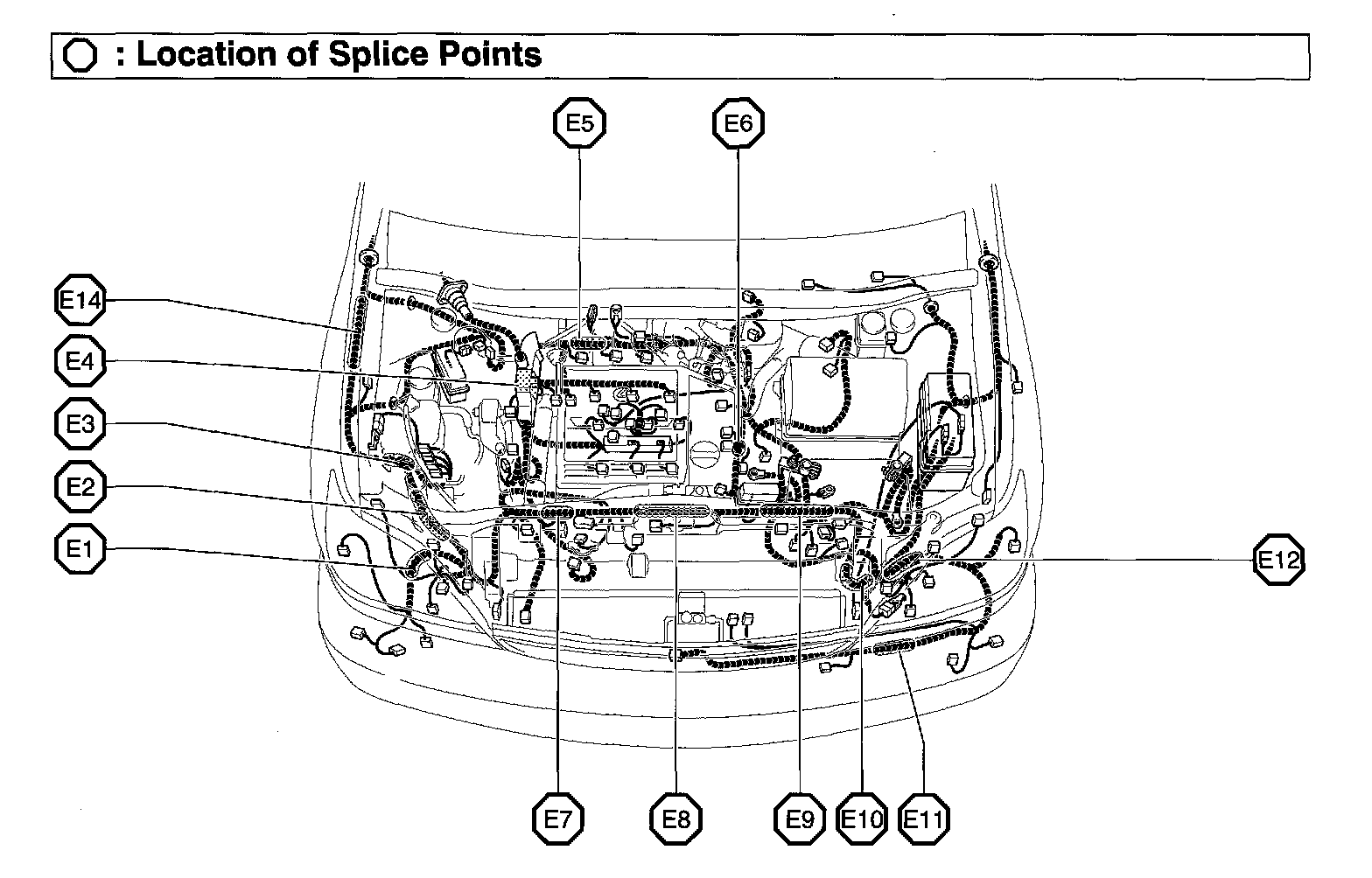

E1 - E14:

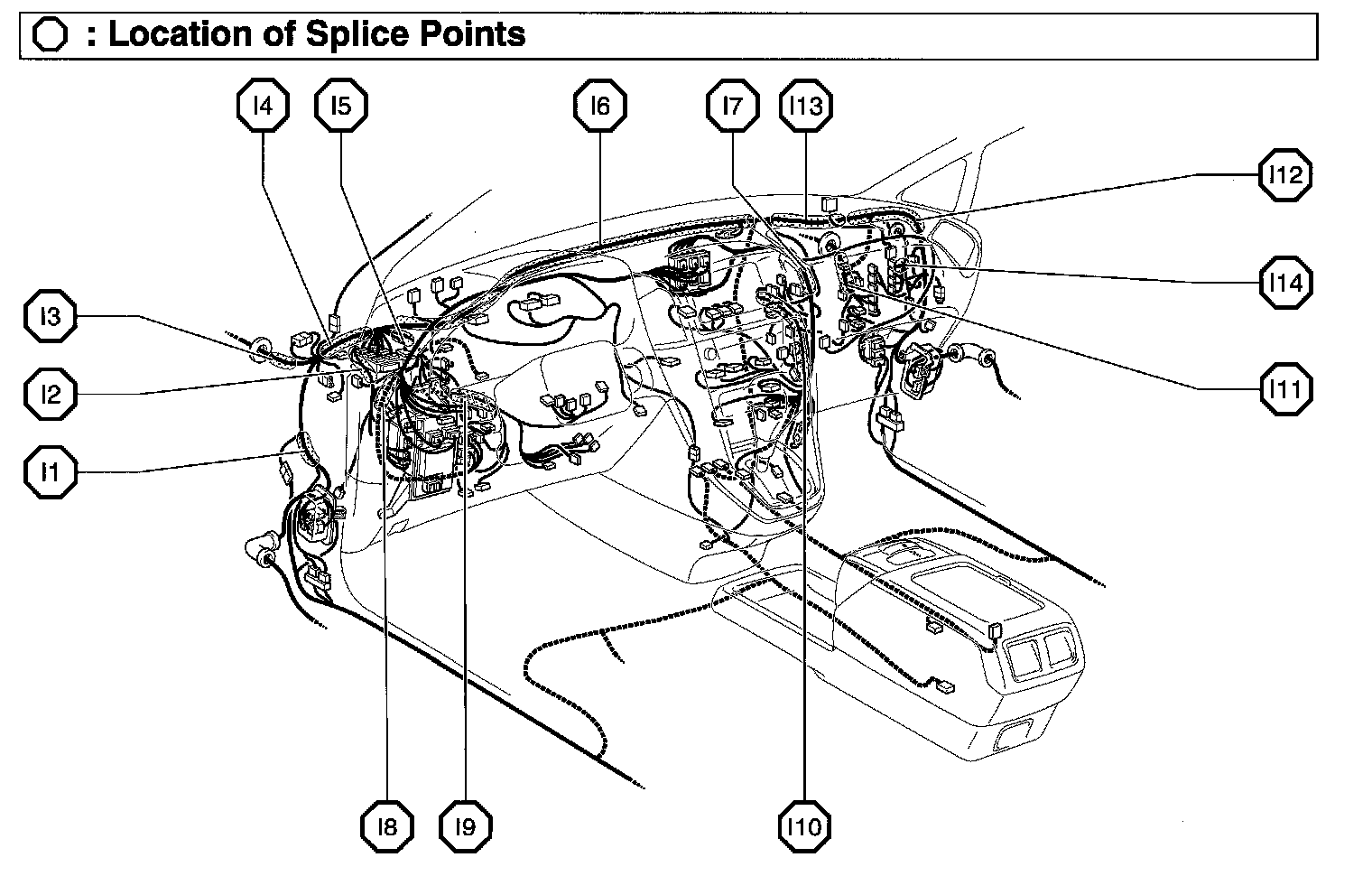

I1 - I14:

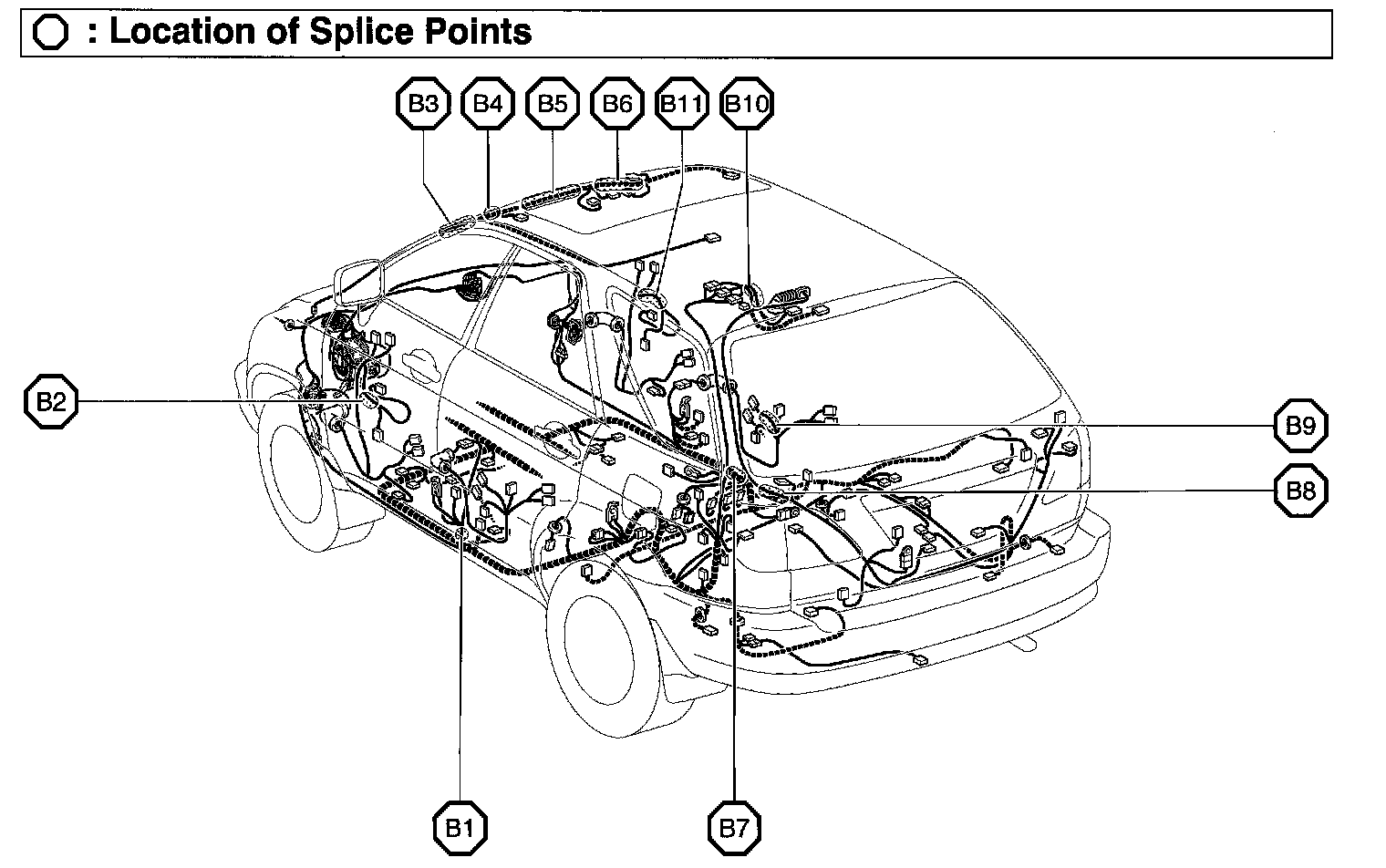

B1 - B11:
