Power Source Circuit

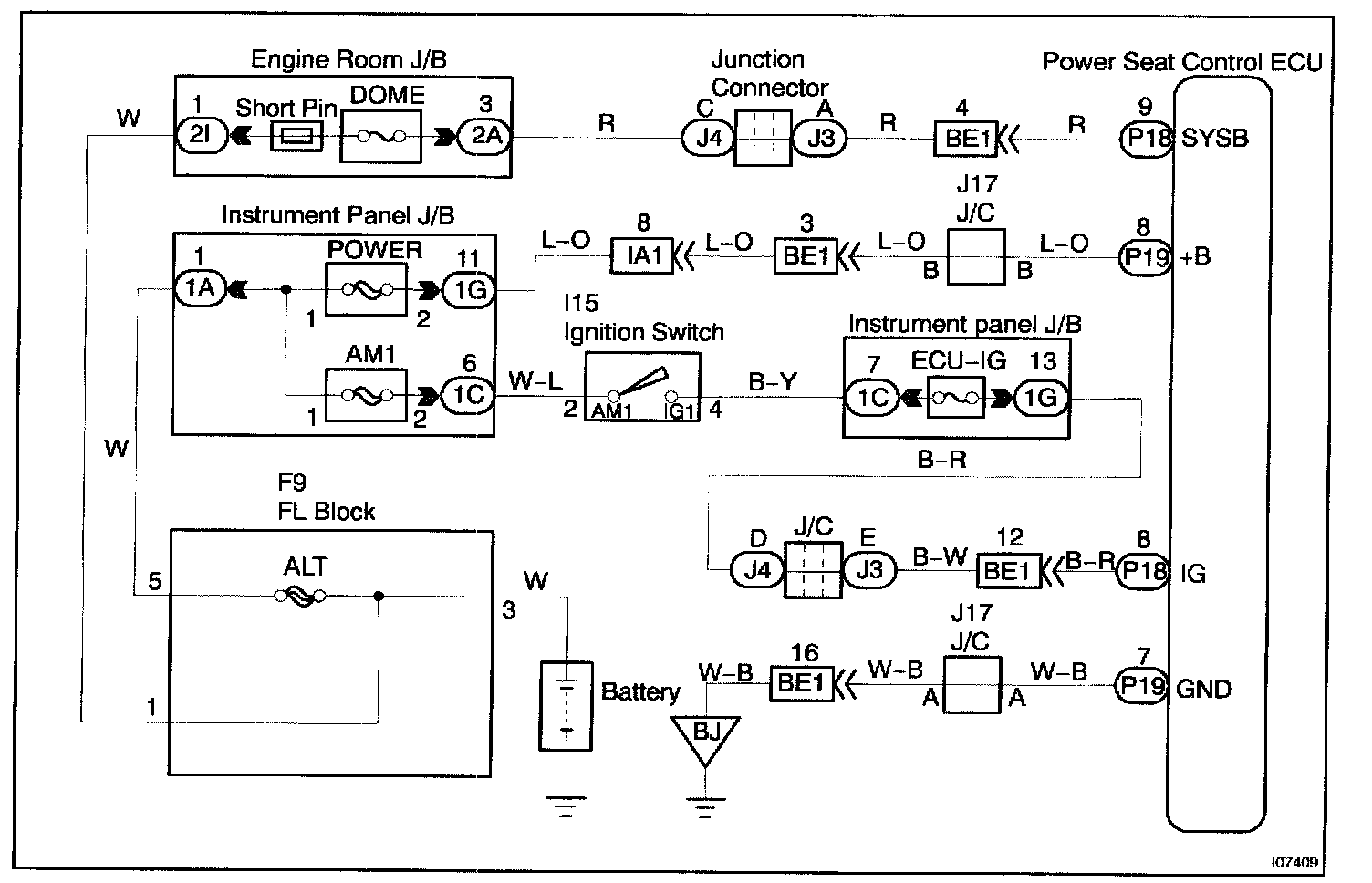

Wiring Diagram:

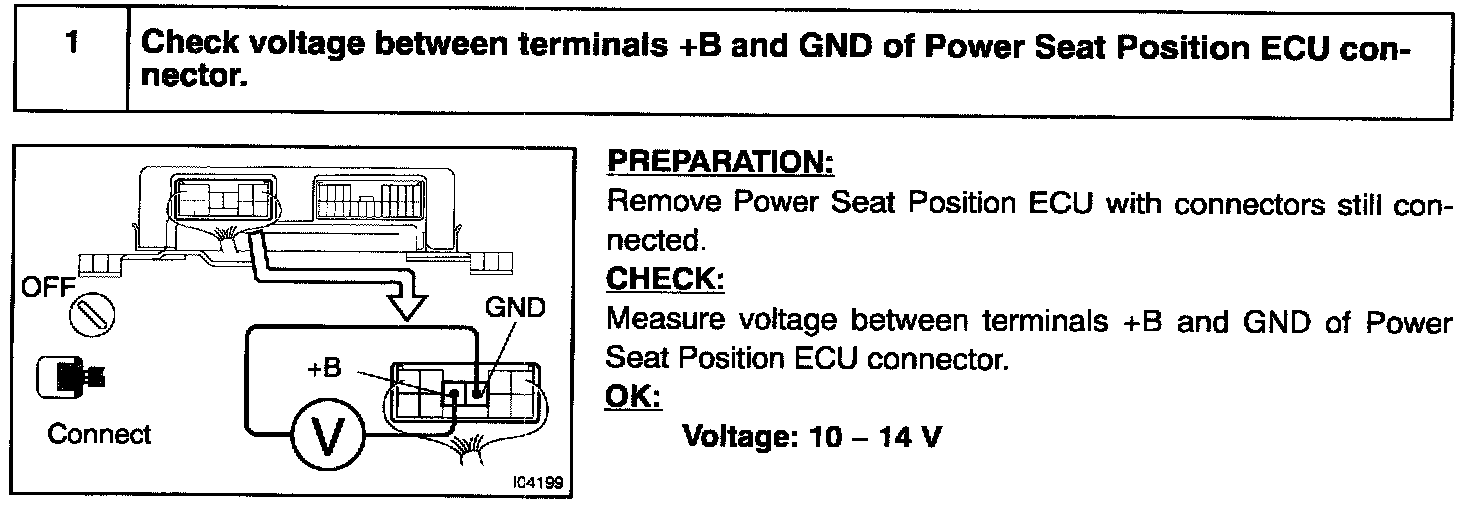

Step 1:

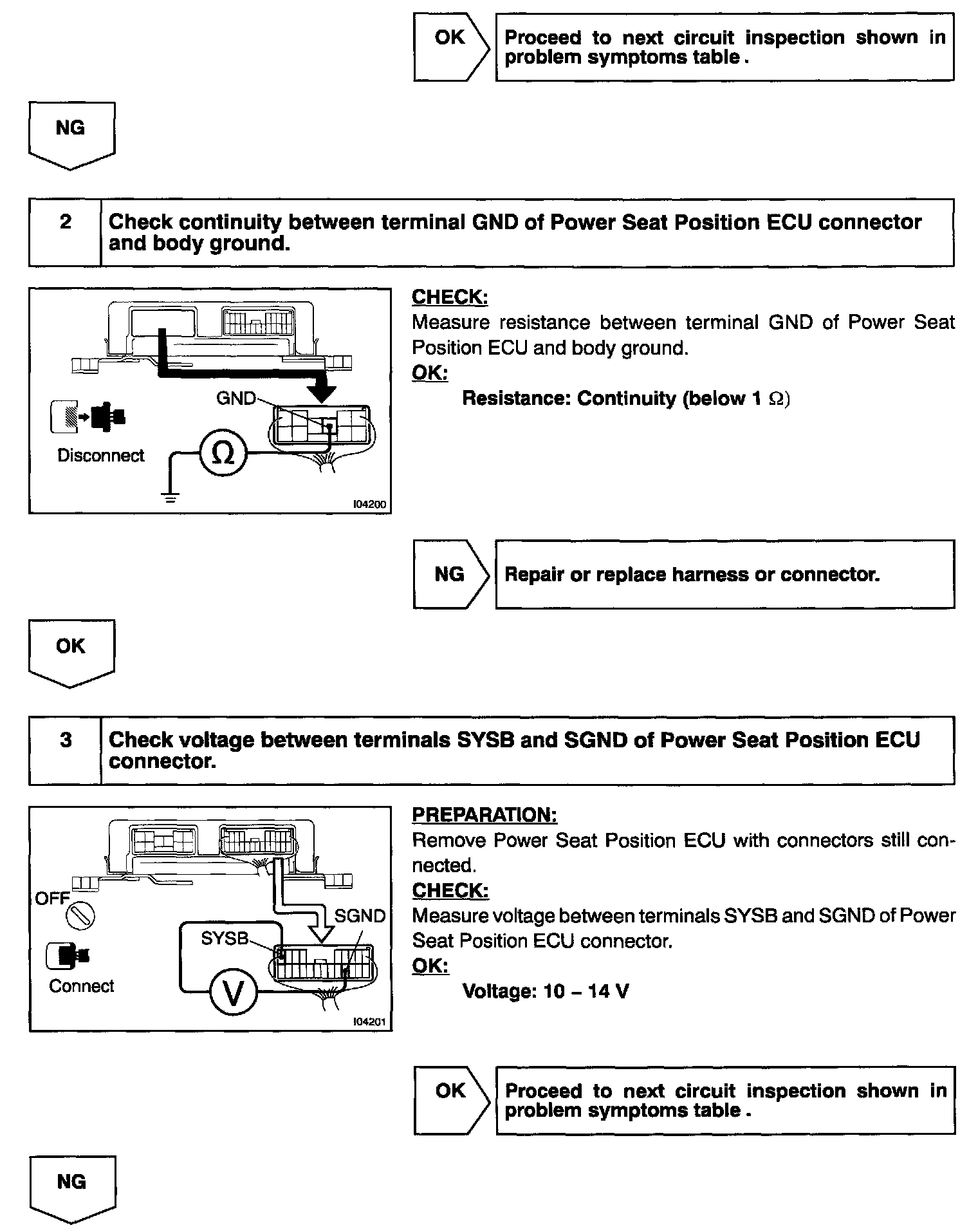

Step 1 (continued) - 3:

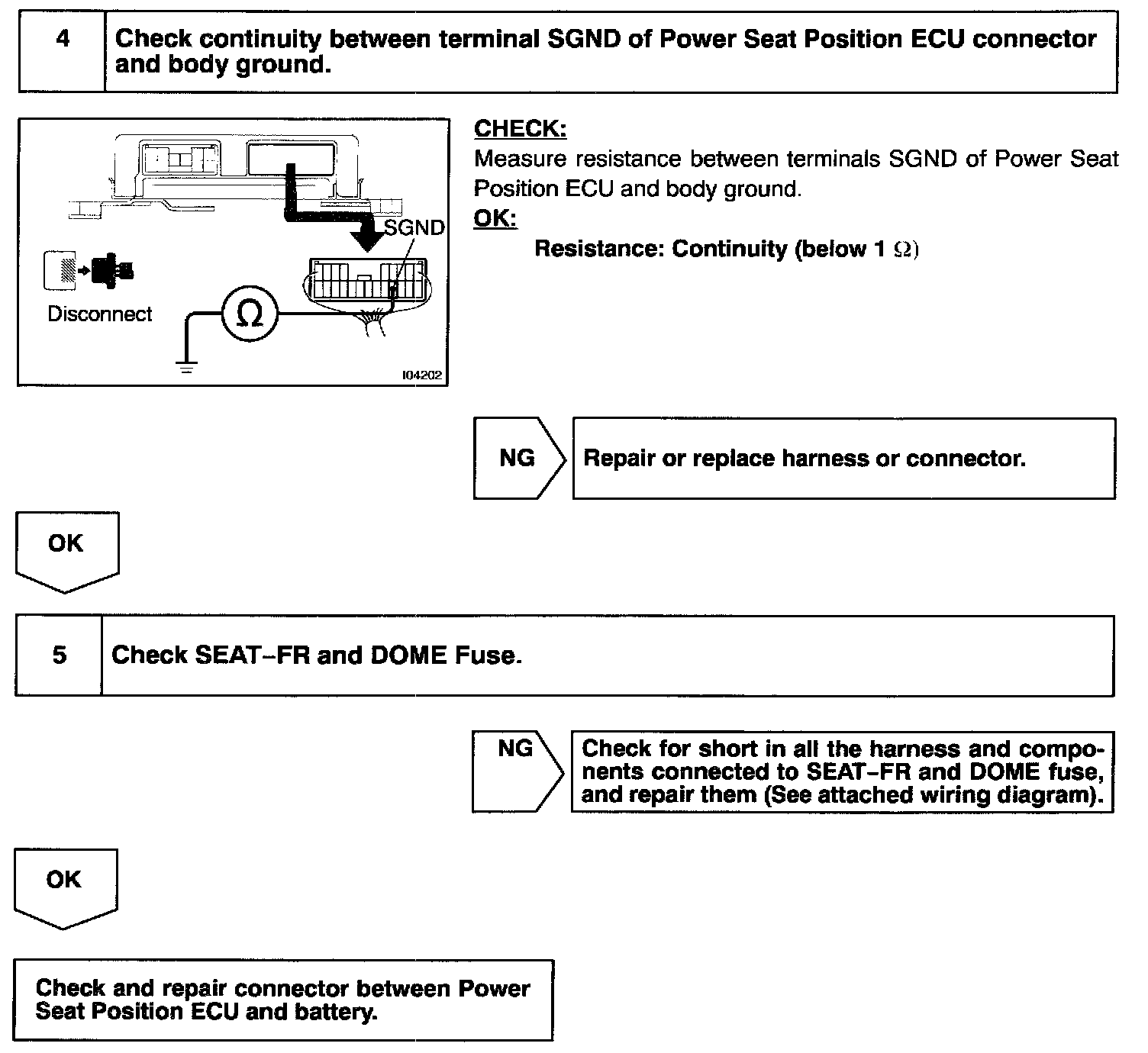

Step 4 - 5:

INSPECTION PROCEDURE
