No Sound With Power ON. ("Audio Off" on Audio Screen)
No Sound With Power ON. ("Audio Off" on Audio Screen)
No Sound With Power Switch Pressed. ("Audio Off" on Audio Screen)

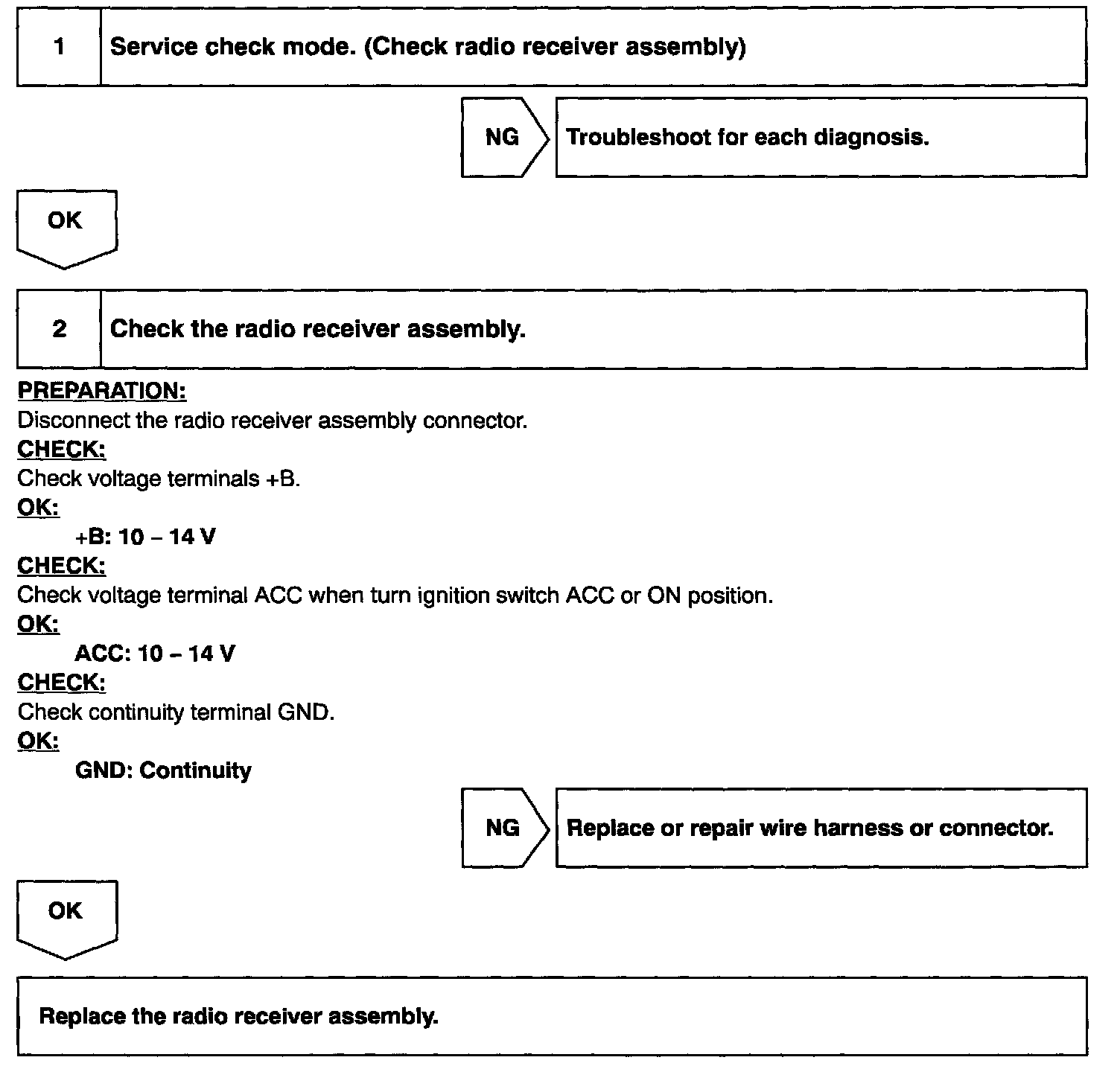

Step 1 - 2:
INSPECTION PROCEDURE
