DTC 77

DTC 77 Center cluster integration panel communication stop

CIRCUIT DESCRIPTION

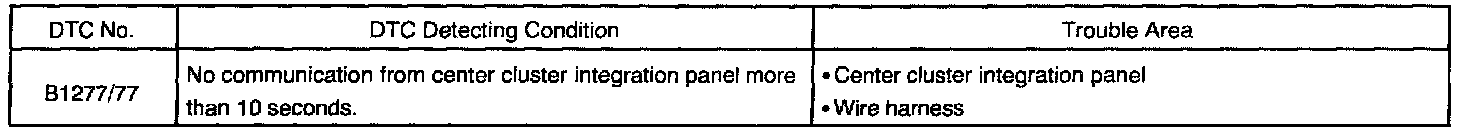

DTC Detecting Condition:

This DTC is output when communication stops between center cluster integration panel and Body ECU

Wiring Diagram:

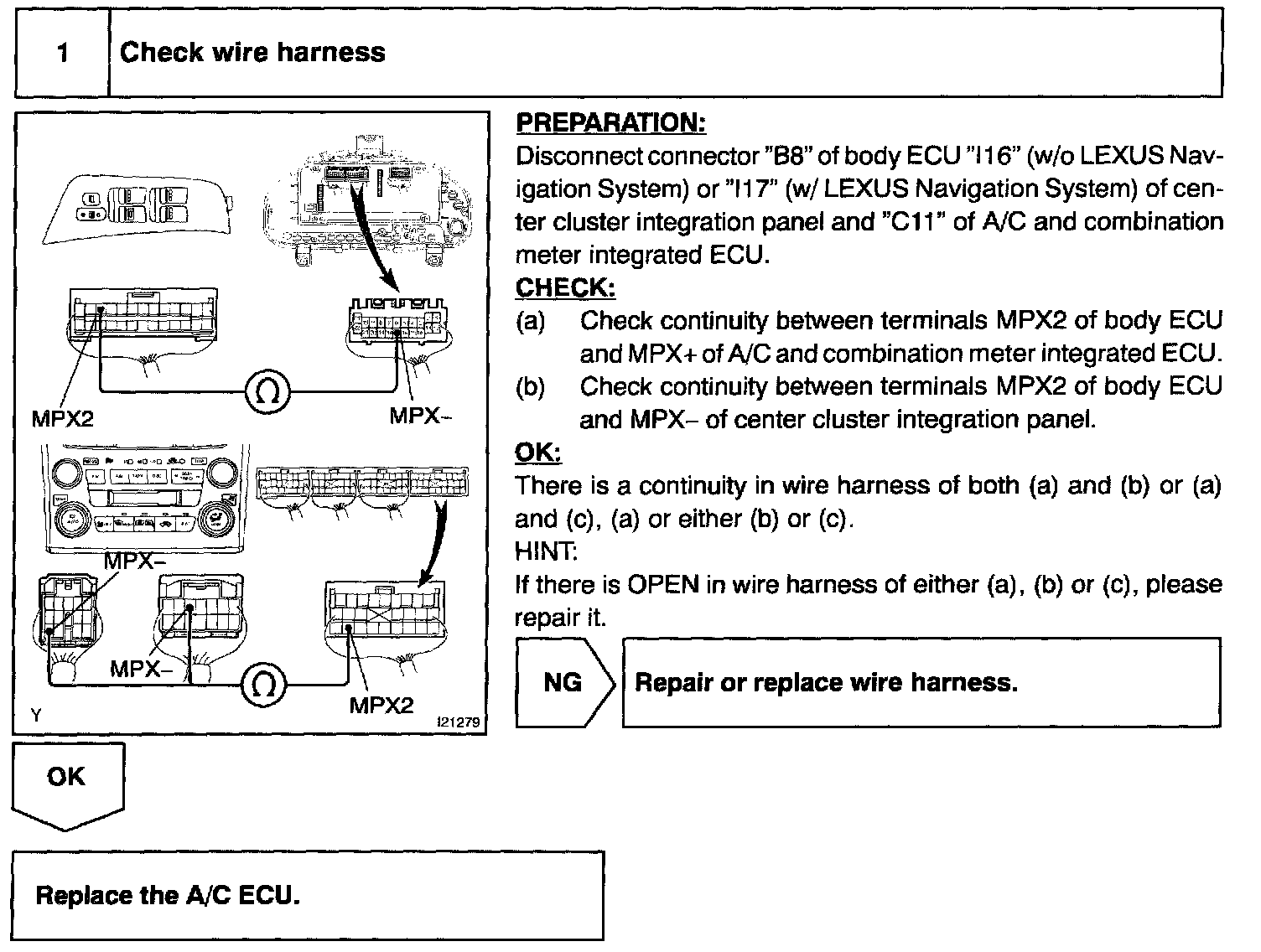

Step 1:

INSPECTION PROCEDURE
