DTC 76

DTC 76 A/C and combination meter integrated ECU communication stop

CIRCUIT DESCRIPTION

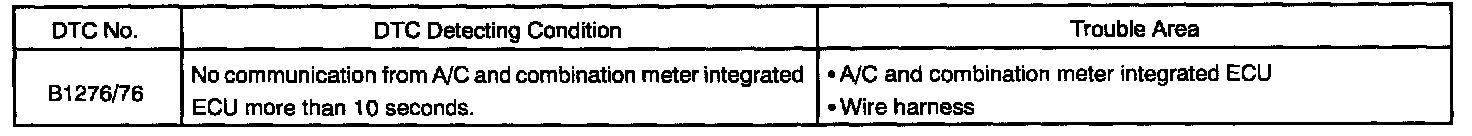

DTC Detecting Condition:

This DTC is output when communication stops between A/C and combination meter integrated ECU and Body ECU.

Wiring Diagram:

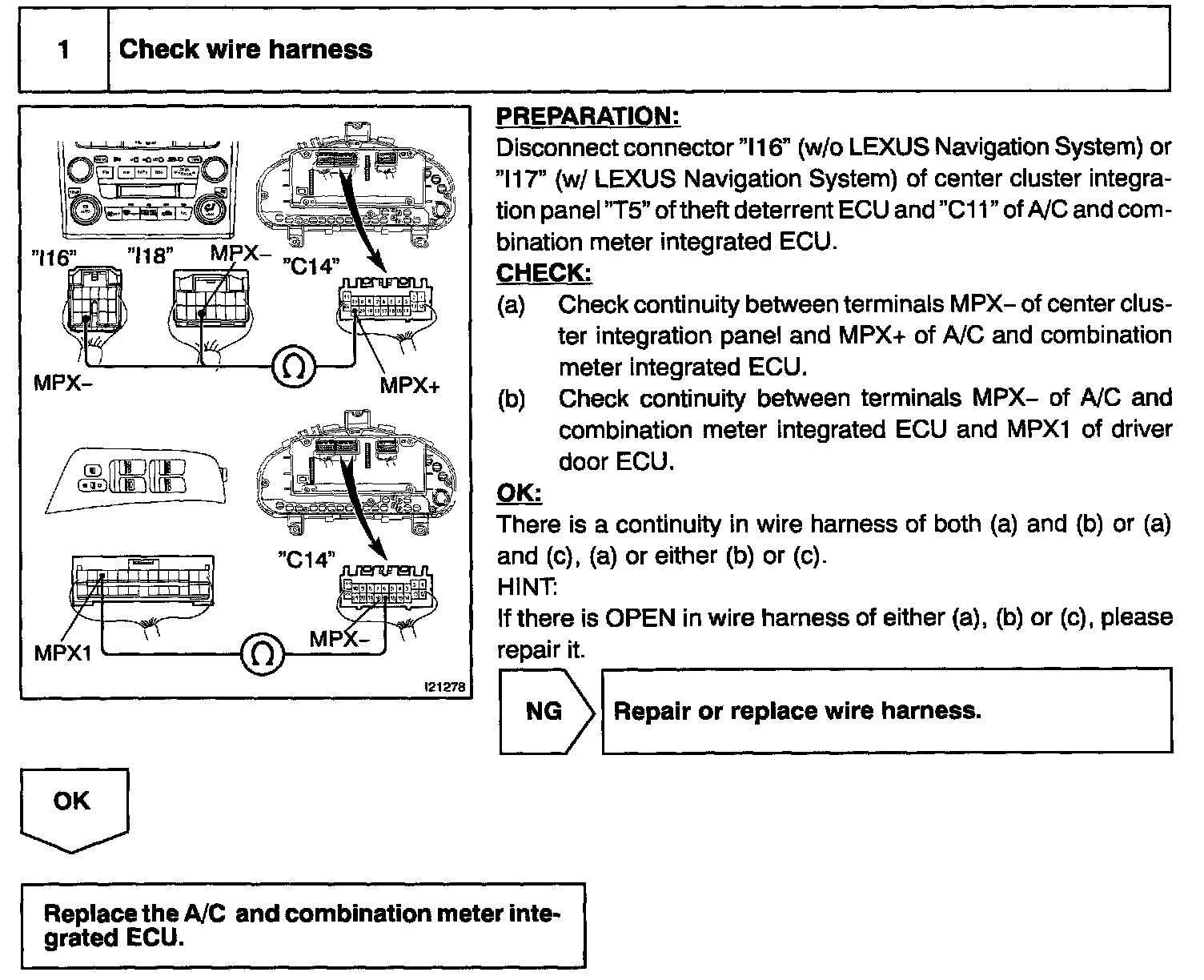

Step 1:

INSPECTION PROCEDURE
