DTC 11

DTC 11 Actuator Motor Circuit

CIRCUIT DESCRIPTION

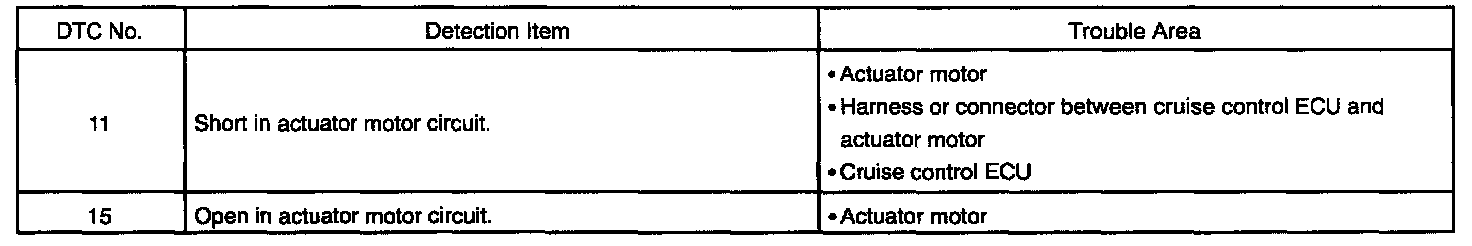

Detection Item:

The actuator motor is operated by signals from the ECU. Acceleration and deceleration signals are transmitted according to changes in the Duty Ratio.

Duty Ratio

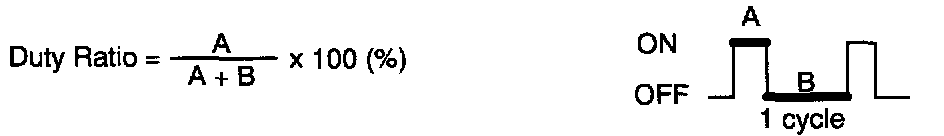

The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity.

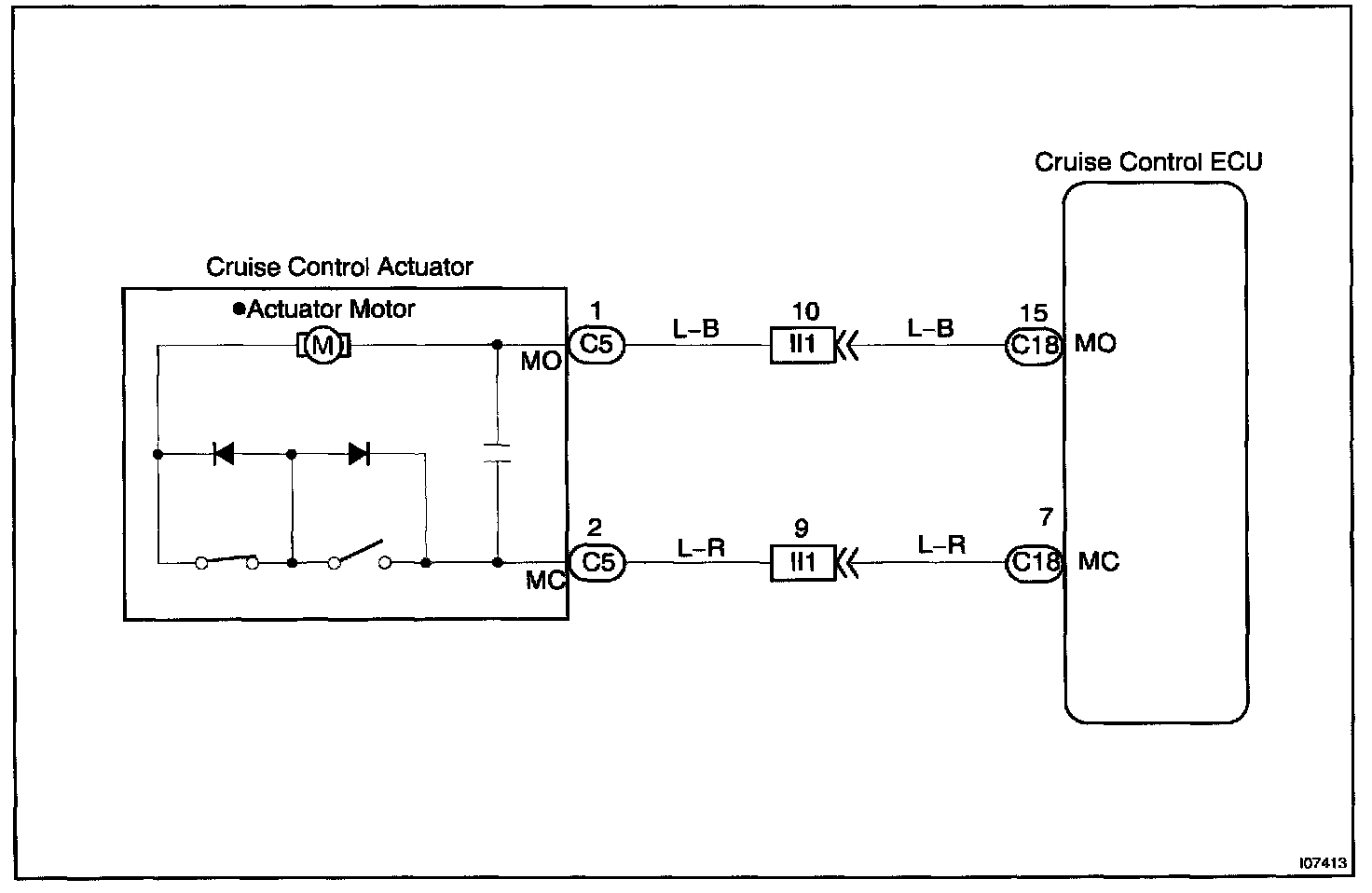

Wiring Diagram:

Step 1 - 2:

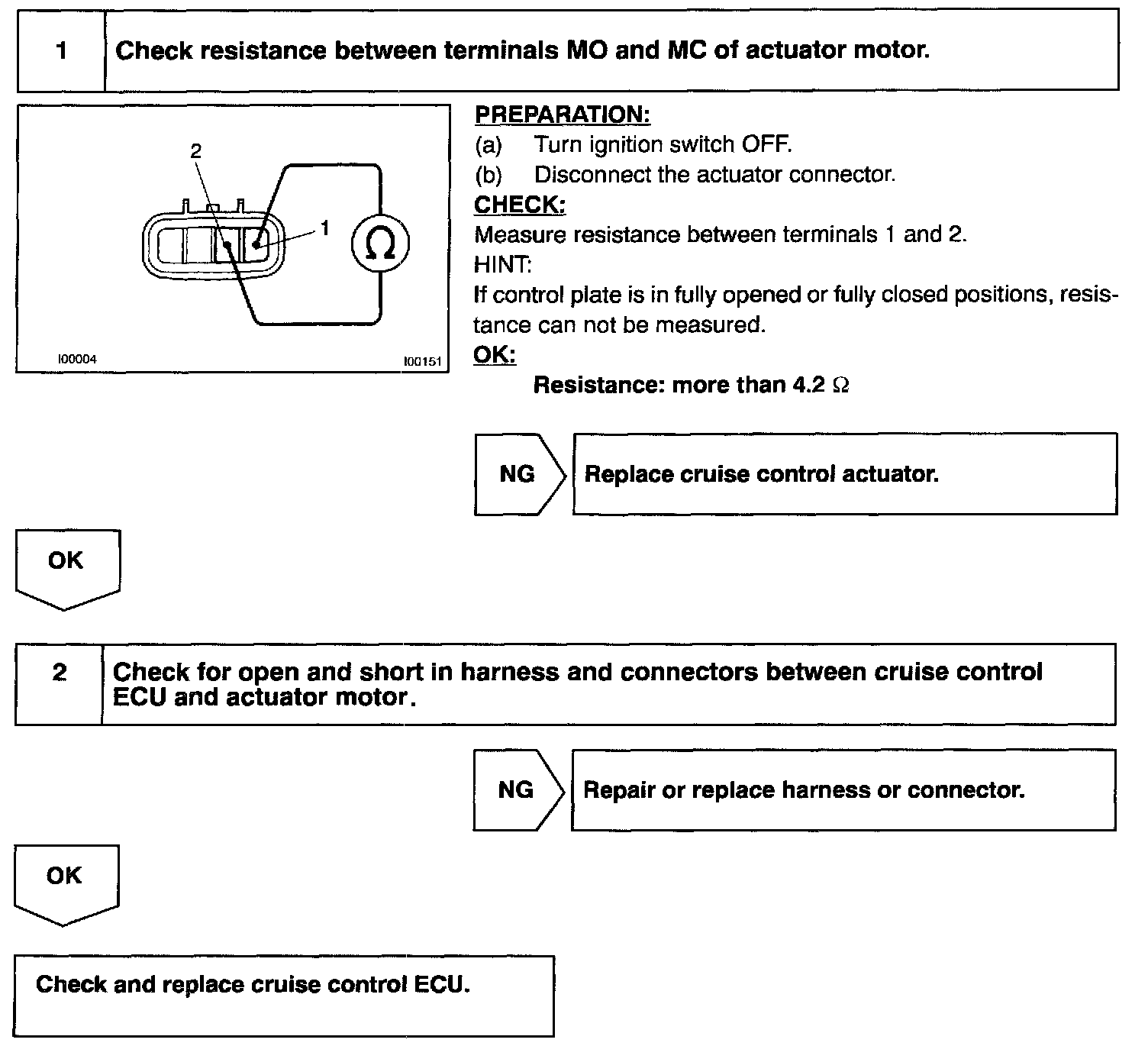

INSPECTION PROCEDURE
