ABS W/EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

NOTE: Before replacing or removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18040, connect the terminals Tc and CG of DLC3.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the respective "DTC No." in the DTC chart.

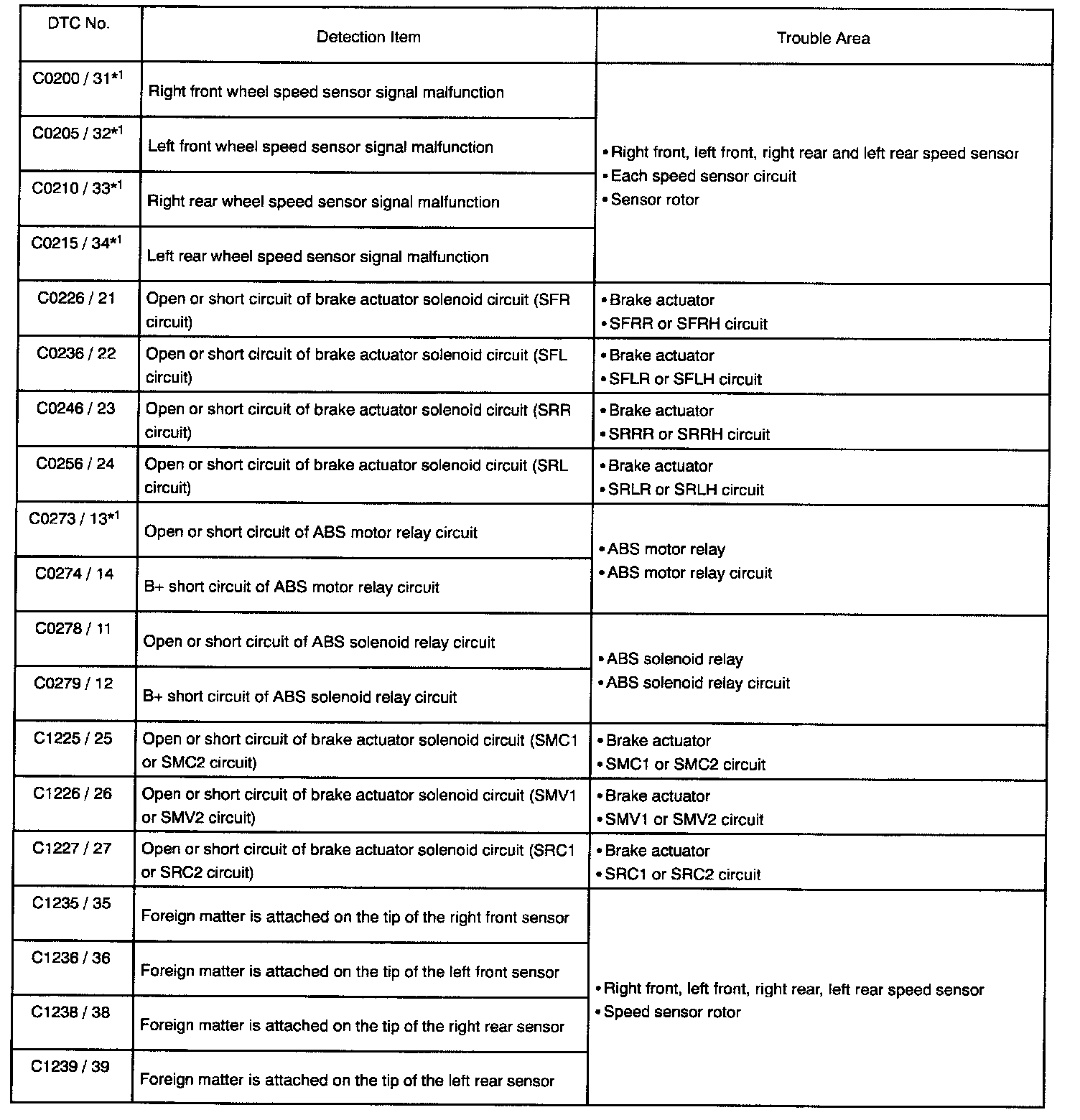

C0200/31 - C1239/39:

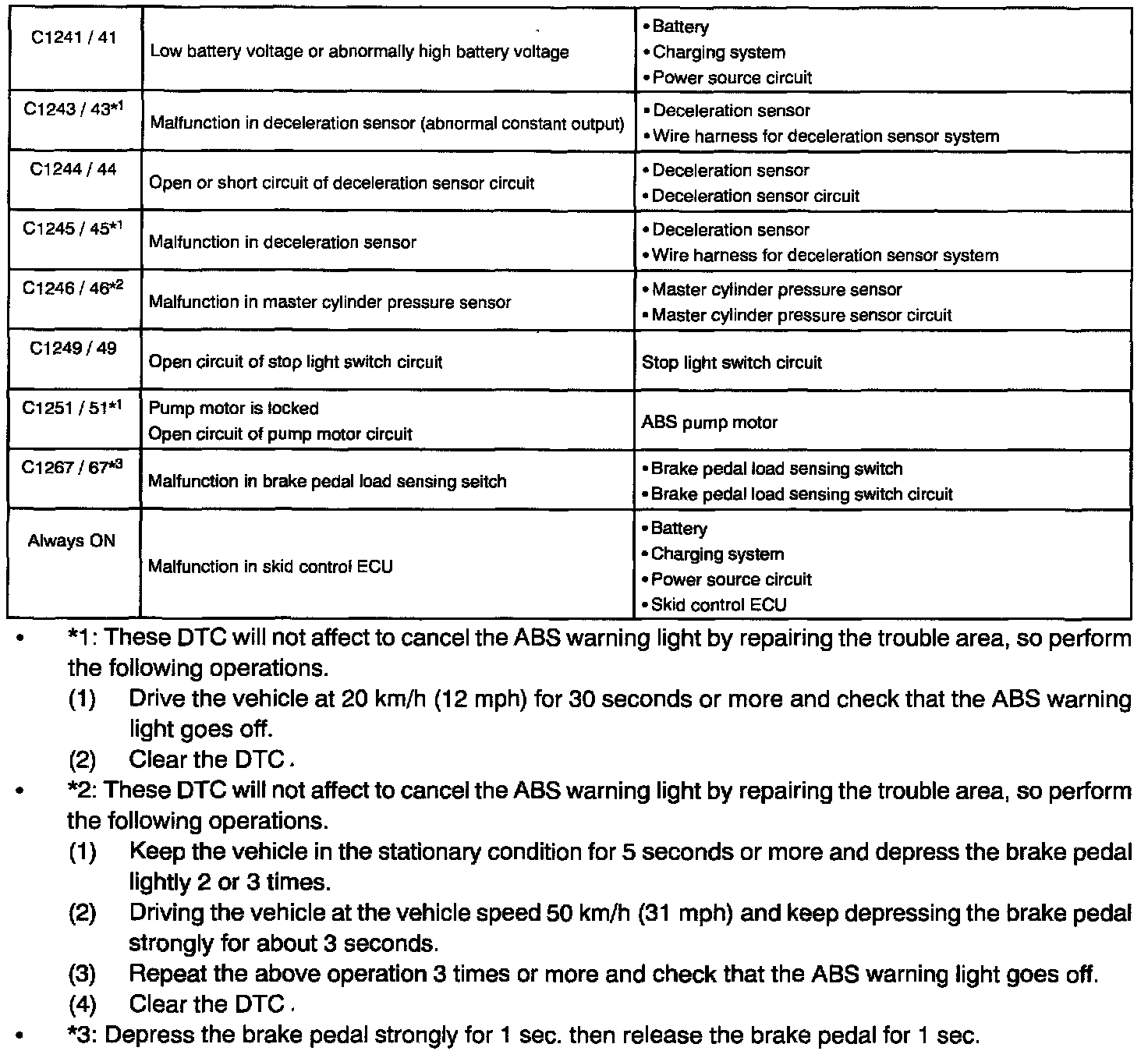

C1241/41 - Always ON:

DTC chart of ABS


HINT: There is a case that LEXUS hand-held tester cannot be used when ABS warning light is always on.

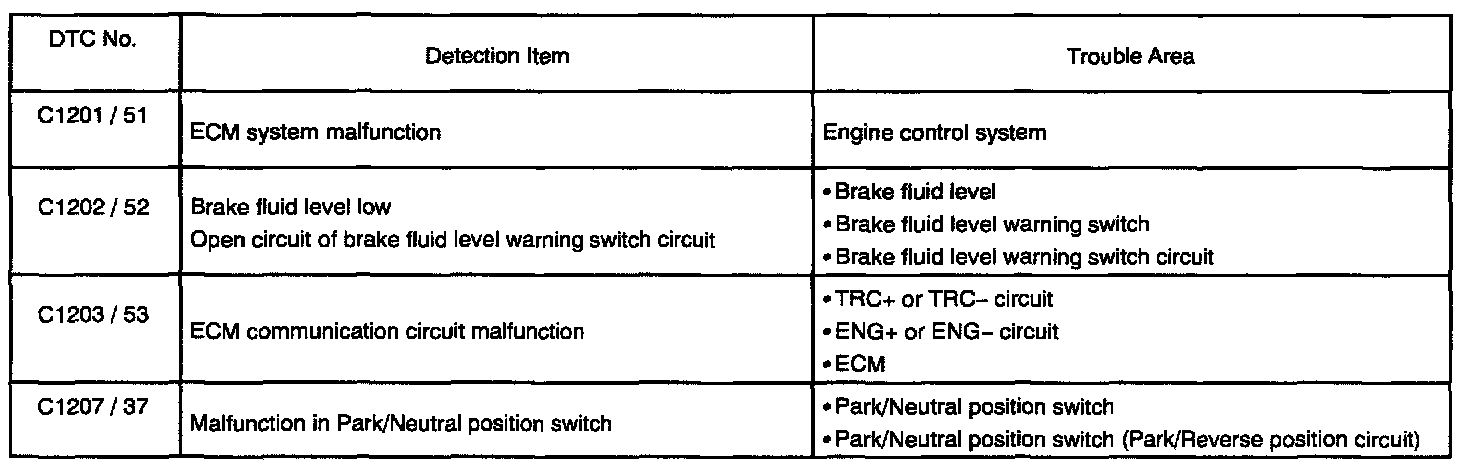

C1201/51 - C1207/37:

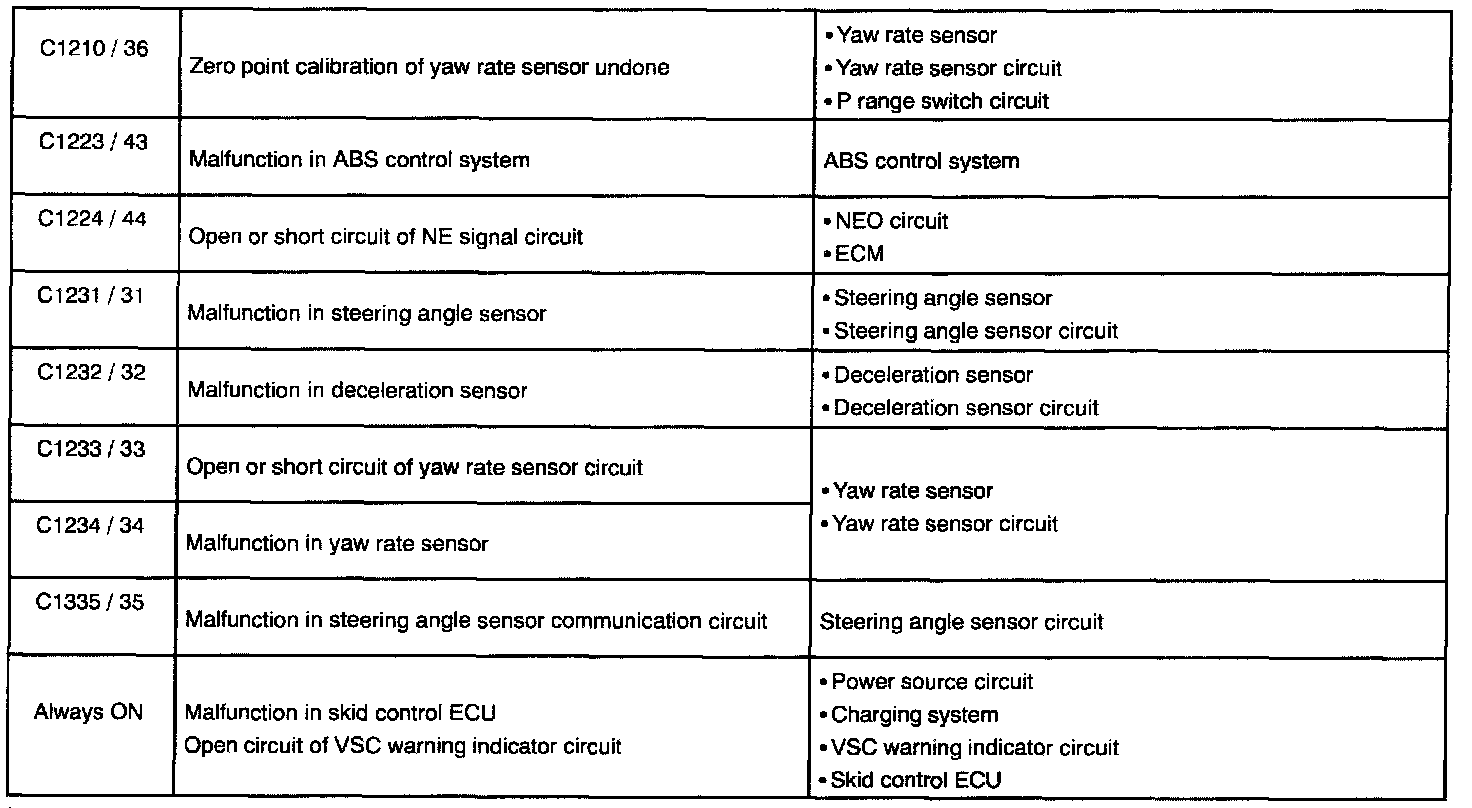

C1210/36 - Always ON:

DTC chart of VSC


HINT: There is a case that LEXUS hand-held tester cannot be used when VSC warning indicator is always on.

C1271/71 - C1281/81:

DTC of ABS sensor check function

C0371/71 - C1208/72:

DTC of VSC sensor check function
