DTC C1207 Park/Neutral Position Switch (Park/Reverse Position Circuit)

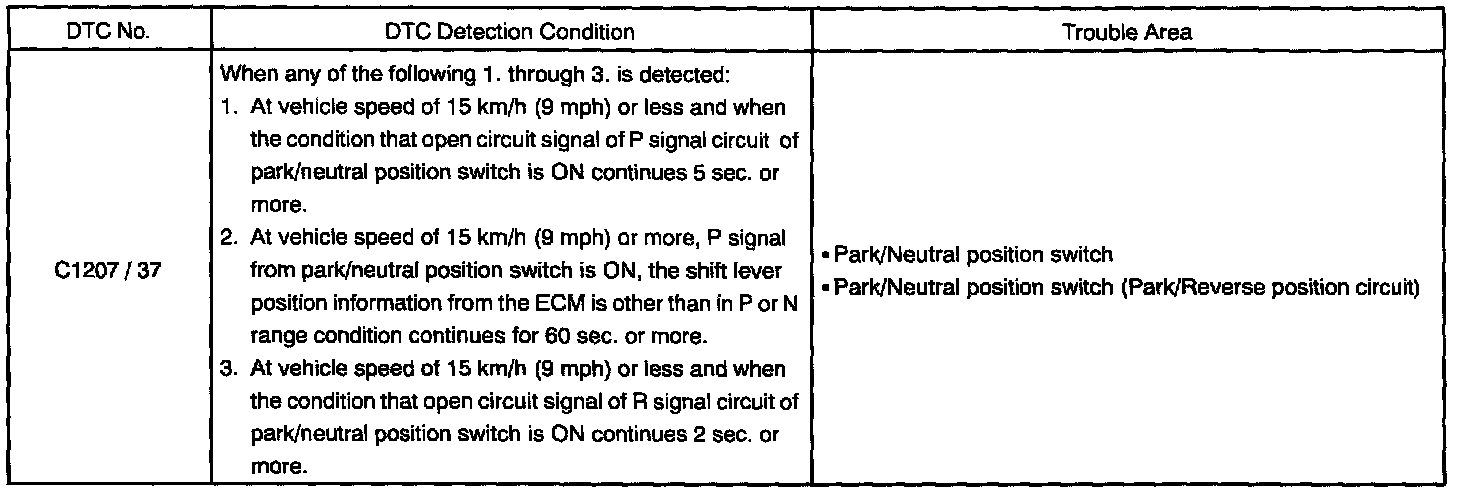

DTC Detection Condition:
CIRCUIT DESCRIPTION

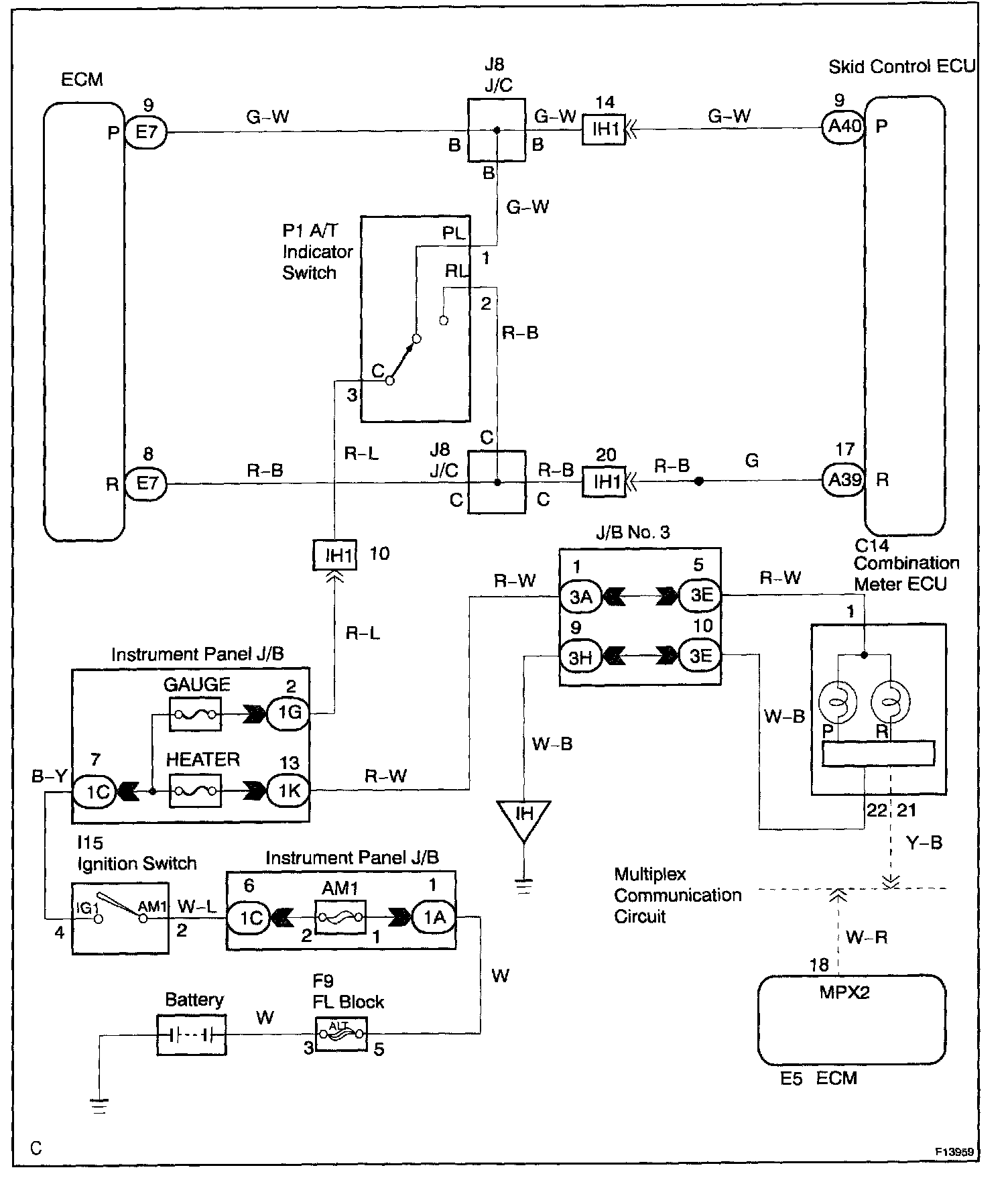

Wiring Diagram:

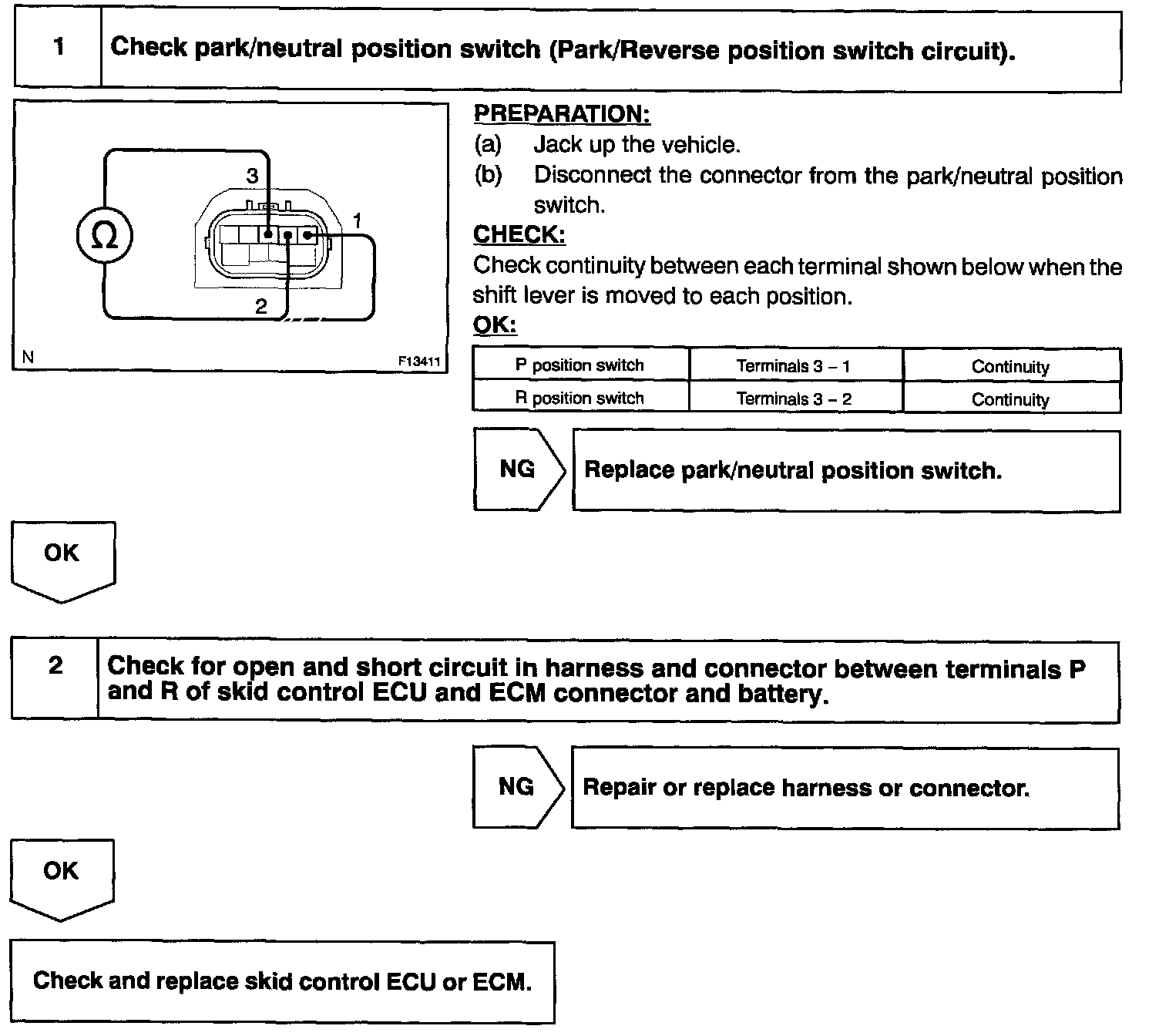

Step 1 - 2:
INSPECTION PROCEDURE
