C1202

DTC C1202 Brake Fluid Level Warning Switch Circuit

CIRCUIT DESCRIPTION

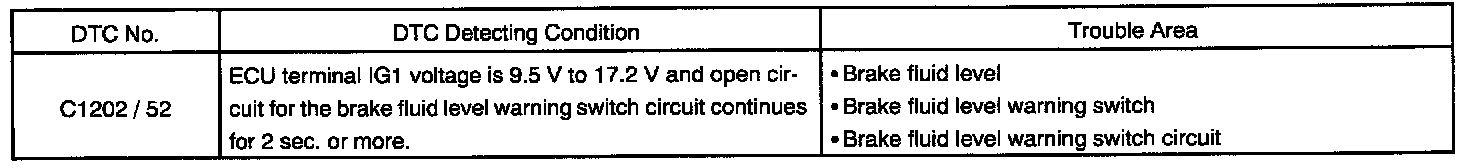

DTC Detecting Condition:

The brake fluid level warning switch sends the appropriate signal to the ECU when the brake fluid level drops.

HINT: Depress the parking brake pedal and also turns on the brake warning light but does not diagnose DTC No. C1202/52.

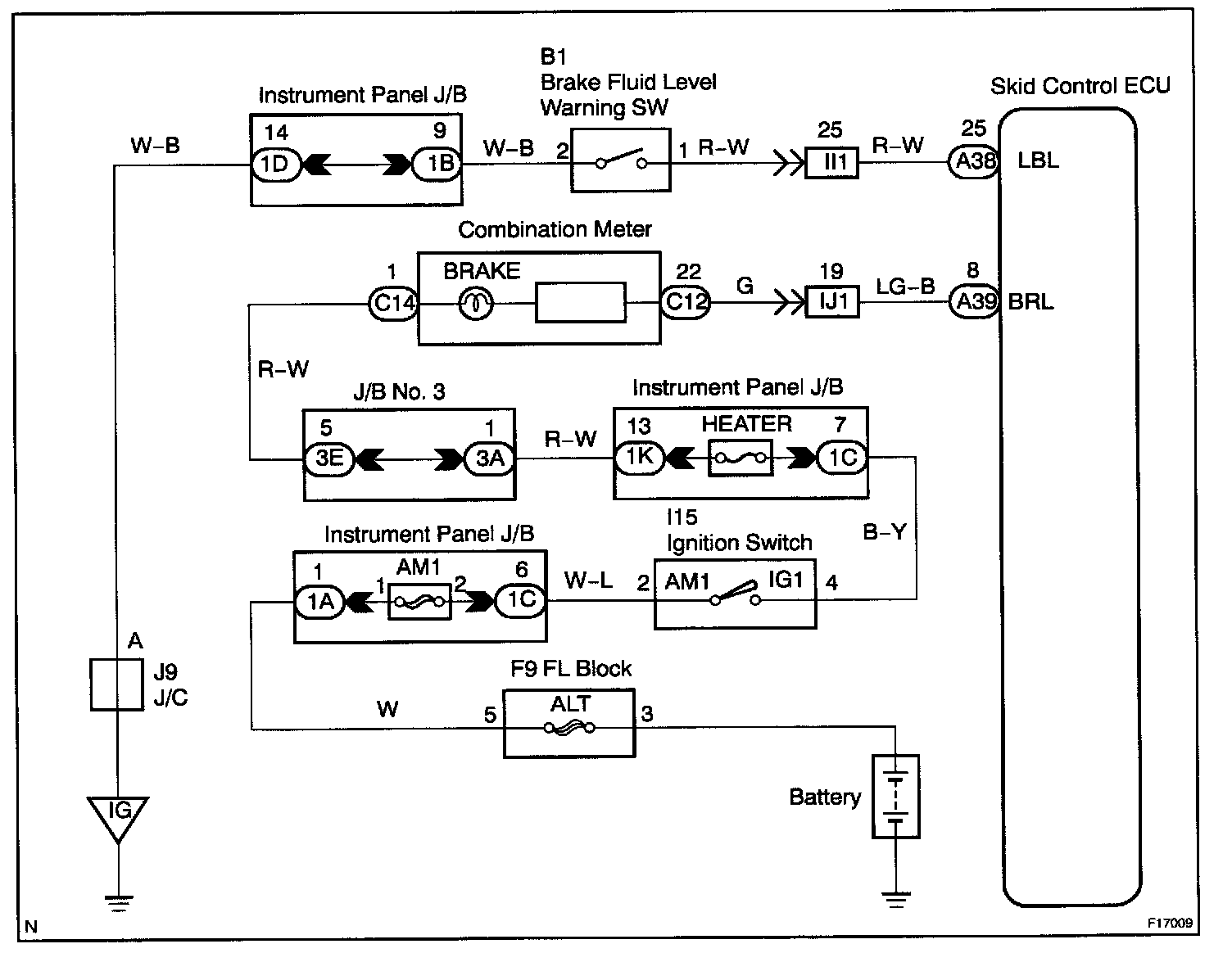

Wiring Diagram:

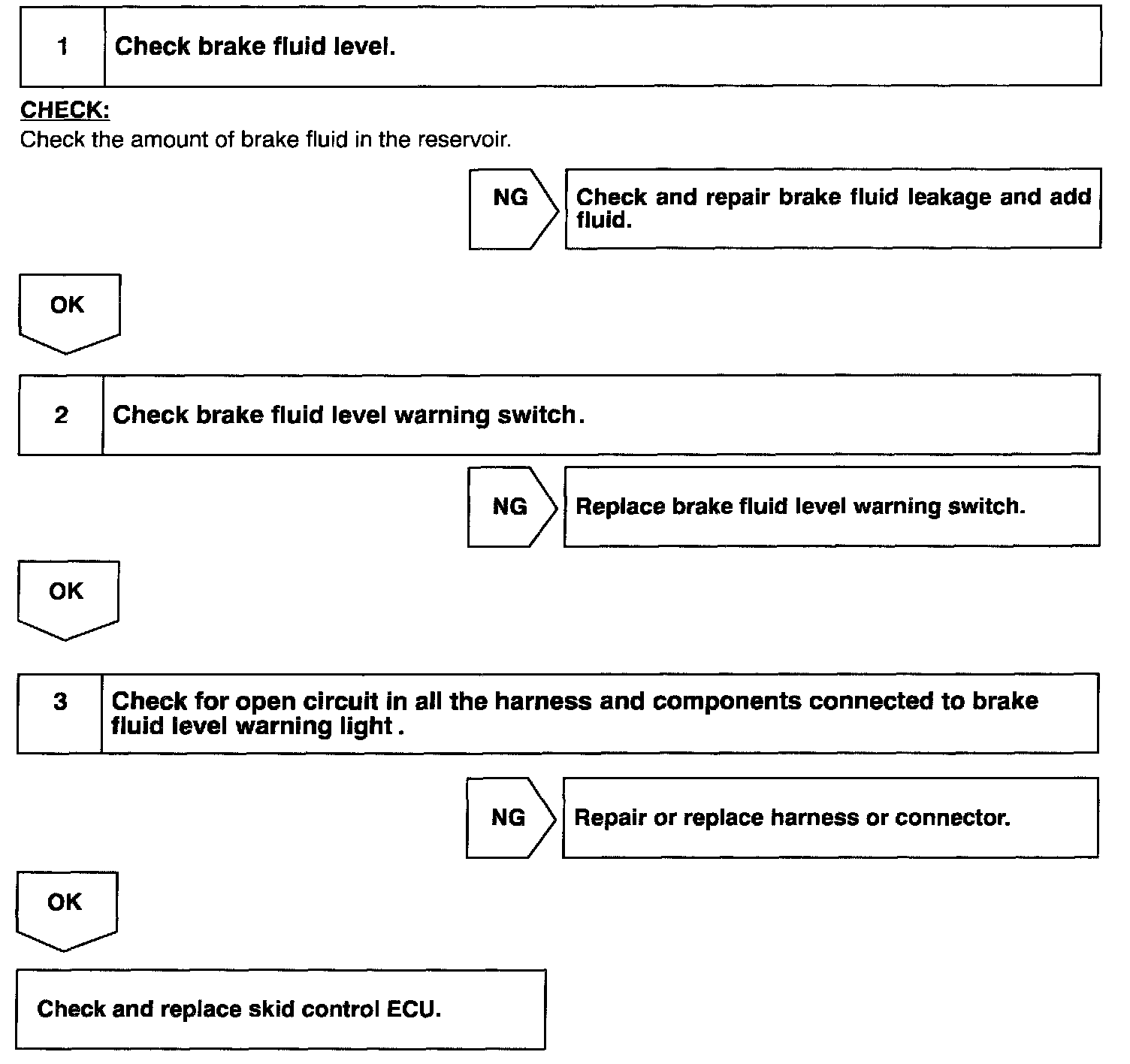

Step 1 - 3:

INSPECTION PROCEDURE
