On-Vehicle Inspection

ON-VEHICLE INSPECTION

NOTE: "Cold" and "Hot" in these sentences express the temperature of the coils themselves. "Cold" is from -10 °C (14 °F) to 50 °C (122 °F) and "Hot" is from 50 °C (122 °F) to 100 °C (212 °F).

INSPECT CRANKSHAFT POSITION SENSOR

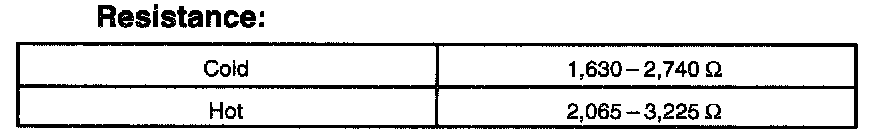

Resistance:

Using an ohmmeter, measure the resistance between terminals.
If the resistance is not as specified, replace the crankshaft position sensor.
