TC Terminal Circuit

Tc Terminal Circuit

CIRCUIT DESCRIPTION
By connecting terminals Tc and CG of the DLC3 the airbag sensor assembly is set in the DTC output mode.
The DTCs are displayed by blinking the SRS warning light.

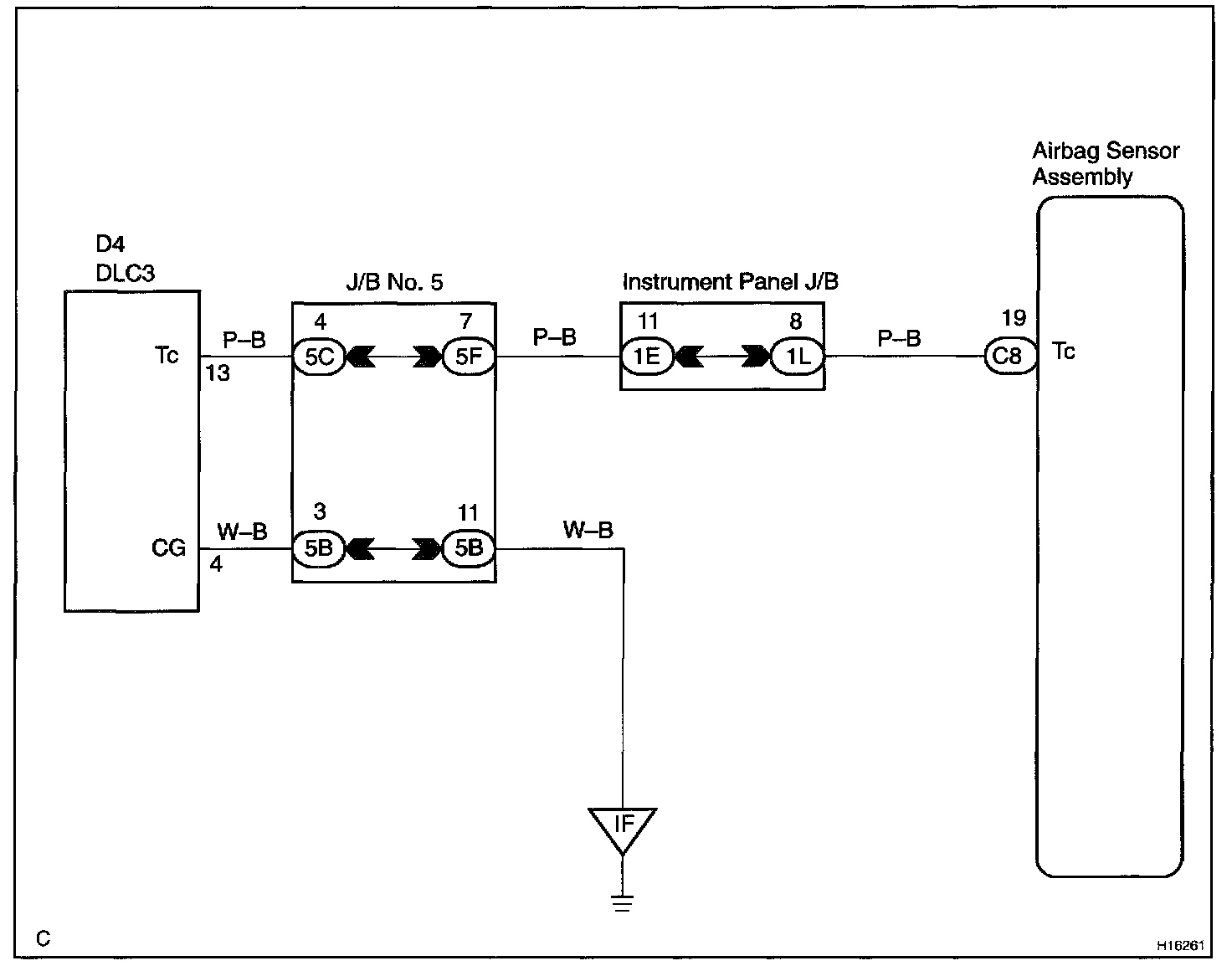

Wiring Diagram:

Step 1 - 2:

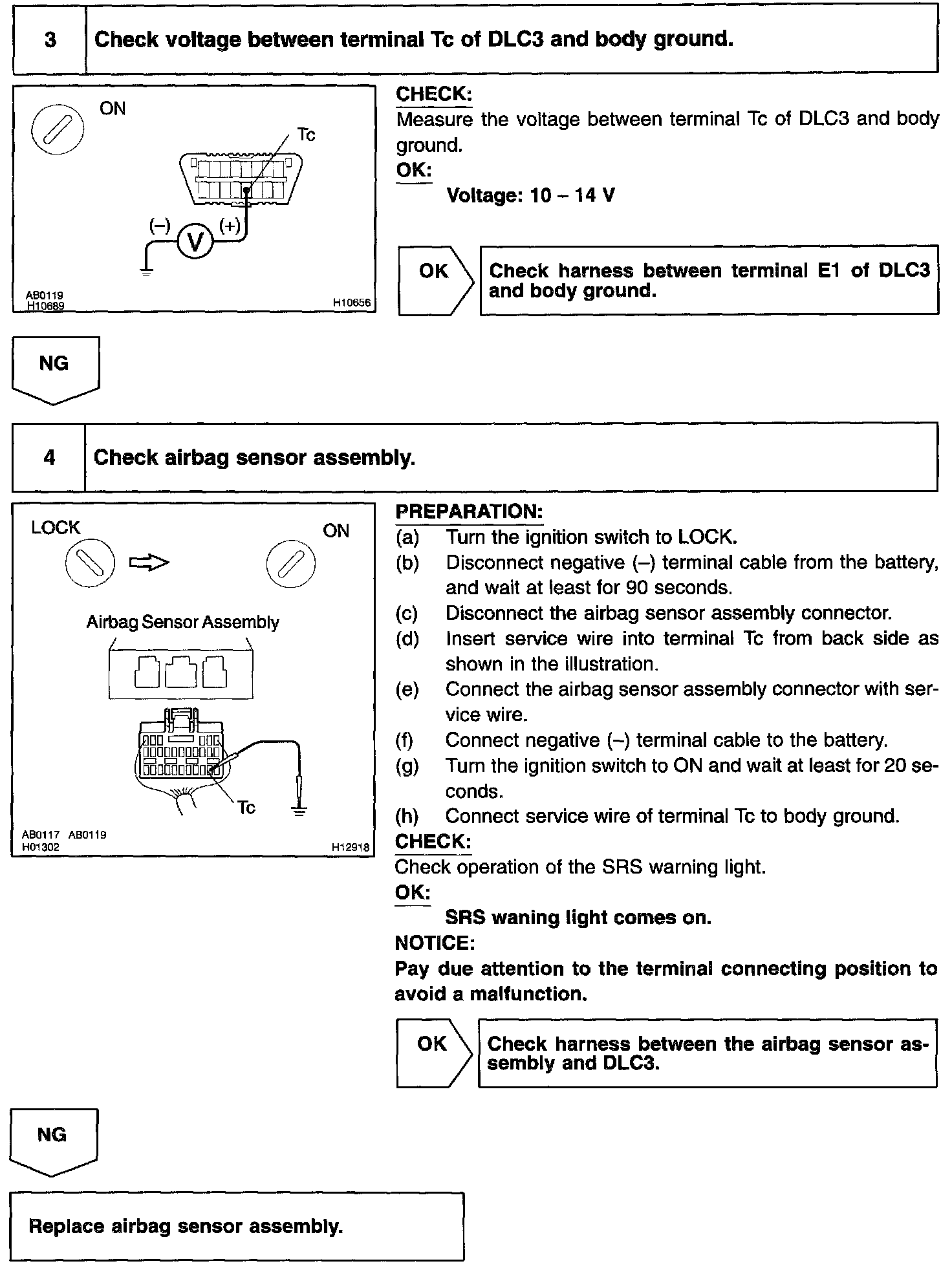

Step 3 - 4:

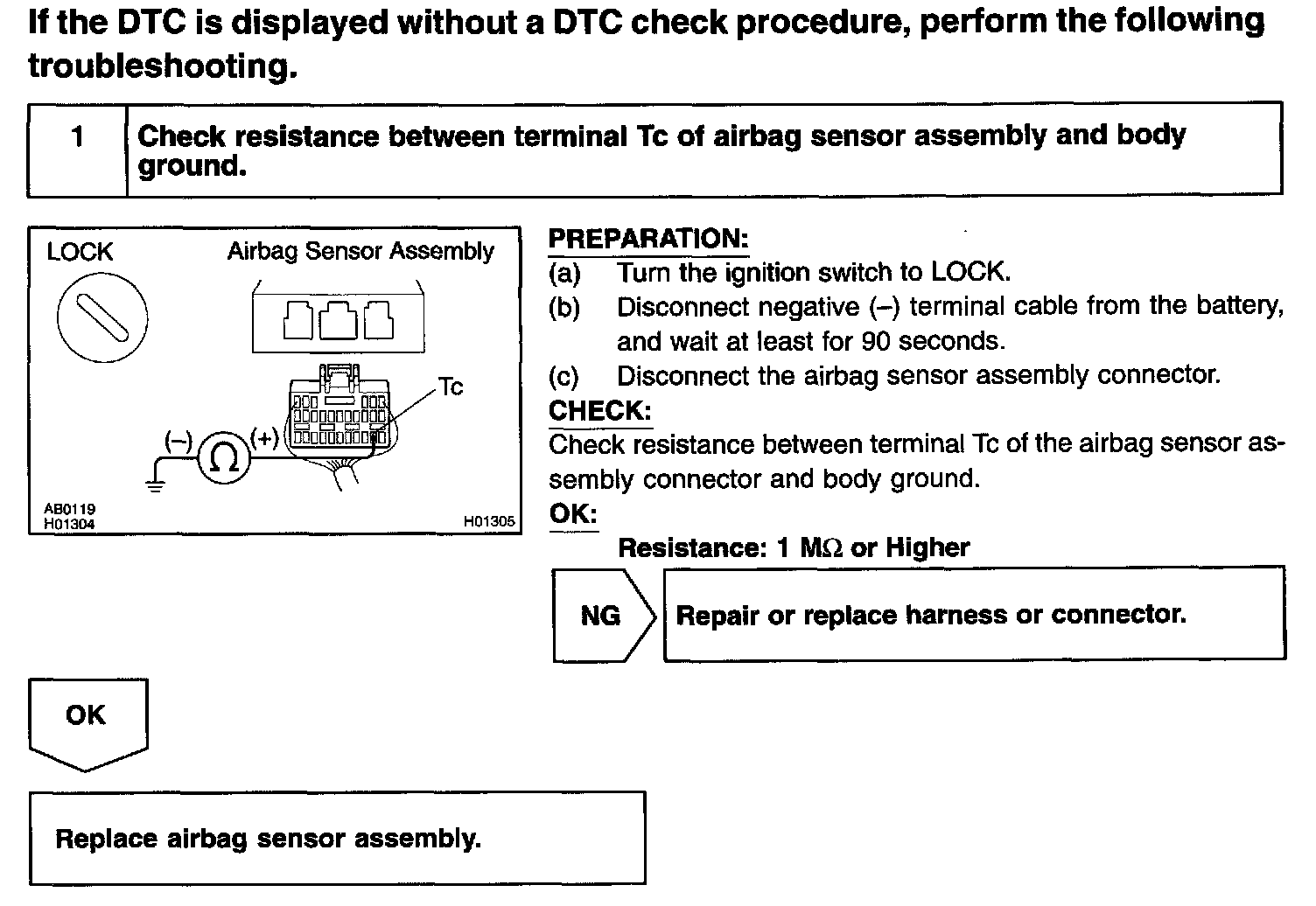

Step 1:

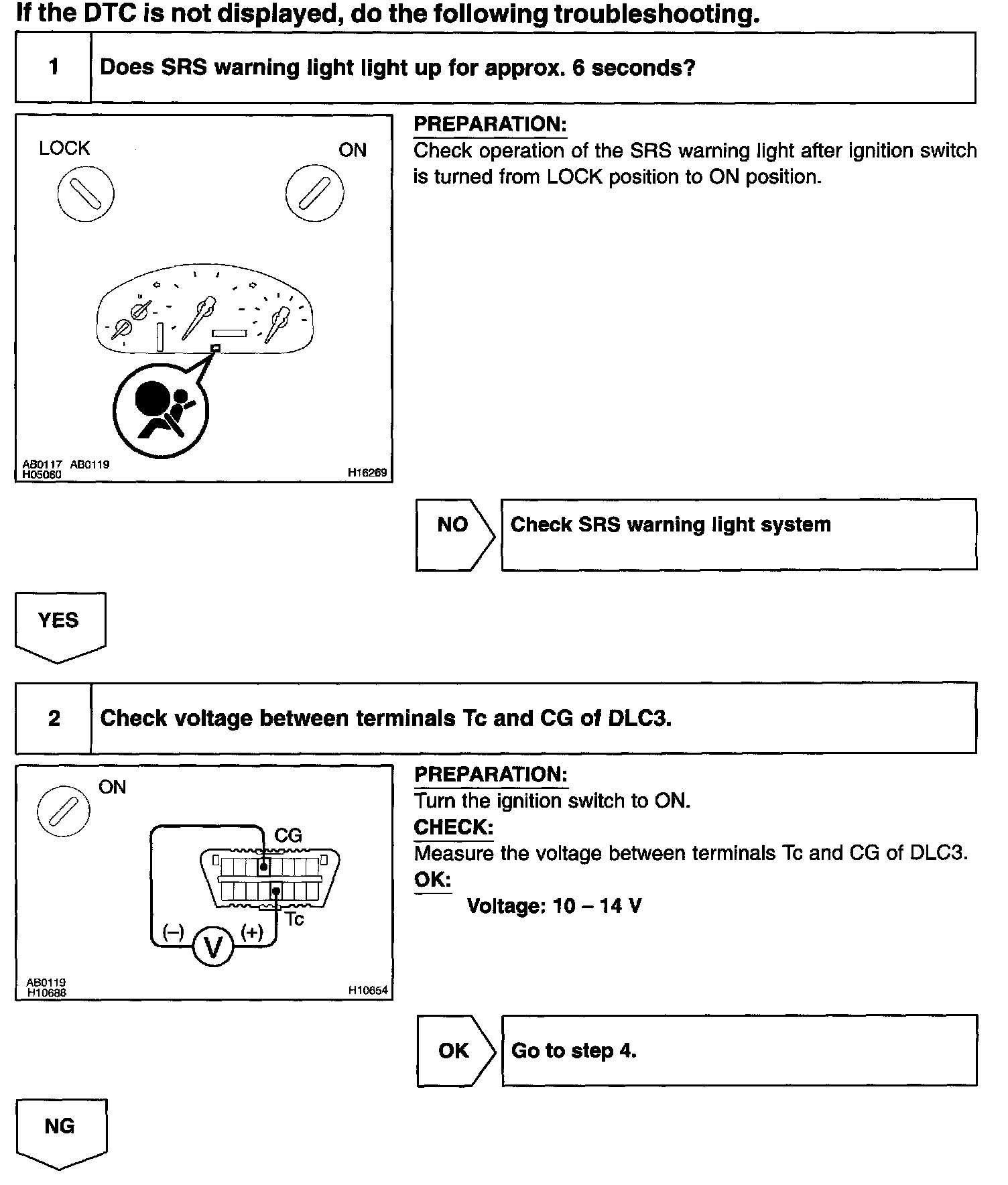

INSPECTION PROCEDURE
