Circuit Opening Relay

CIRCUIT OPENING RELAY

INSPECTION

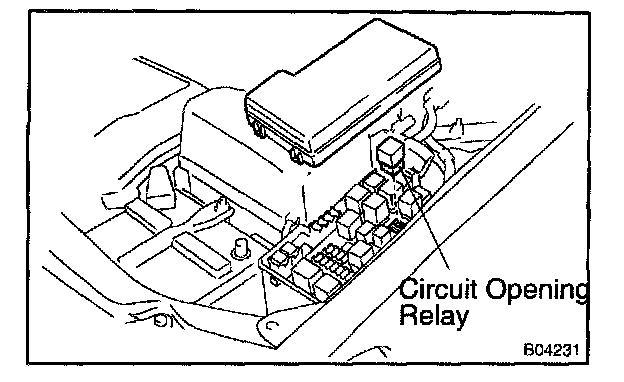

1. REMOVE CIRCUIT OPENING RELAY (Marking: CIR OPN)

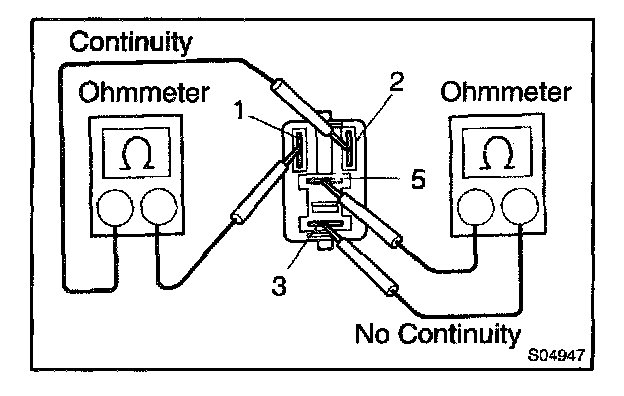

2. INSPECT CIRCUIT OPENING RELAY CONTINUITY




a. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
b. Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.

3. INSPECT CIRCUIT OPENING RELAY OPERATION




a. Apply battery voltage across terminals 1 and 2.
b. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.

4. REINSTALL CIRCUIT OPENING RELAY
