Igniter Signal Circuit
Igniter Signal Circuit
INSPECTION PROCEDURE

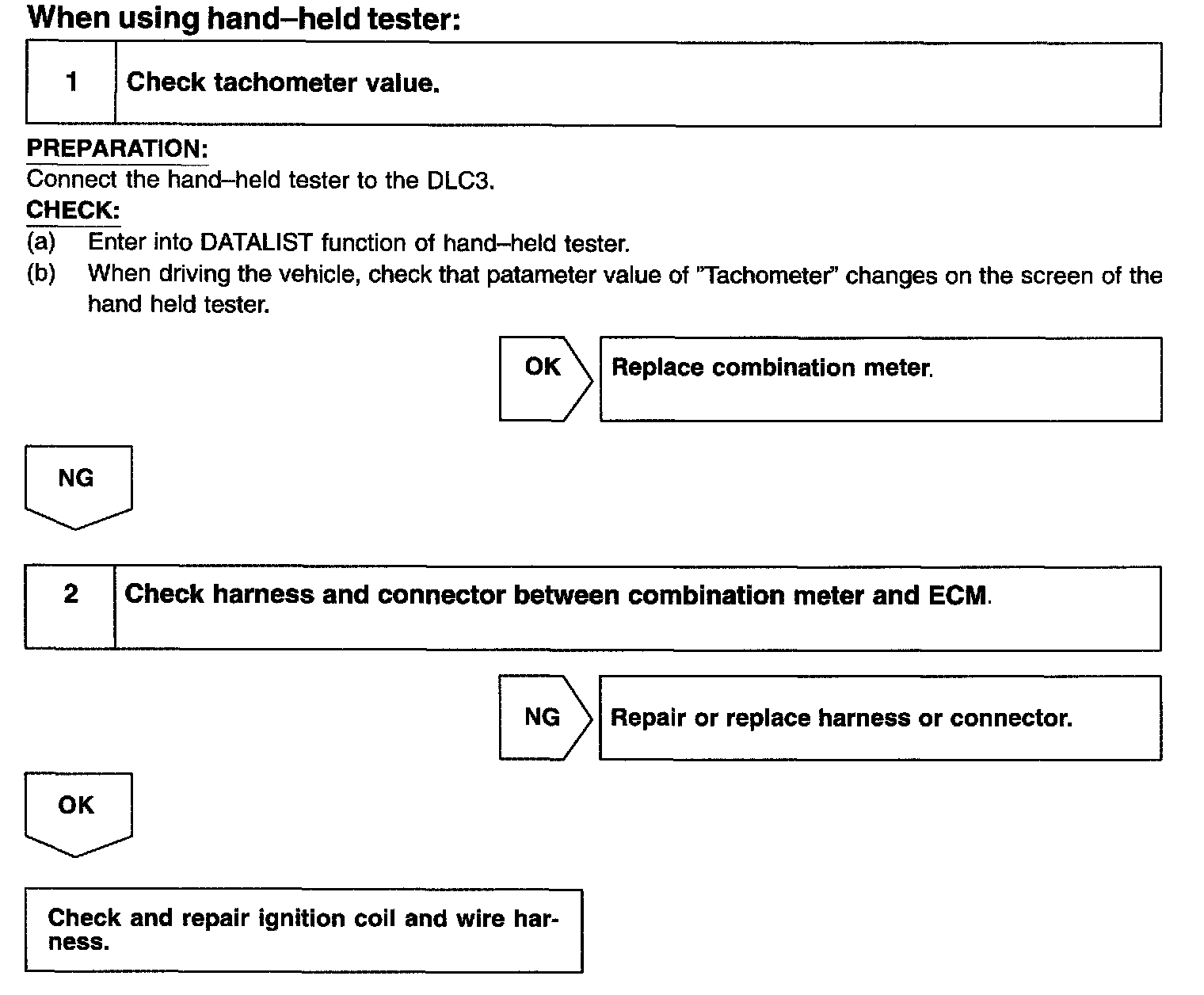

Step 1 - 2:
When Using Hand-held Tester

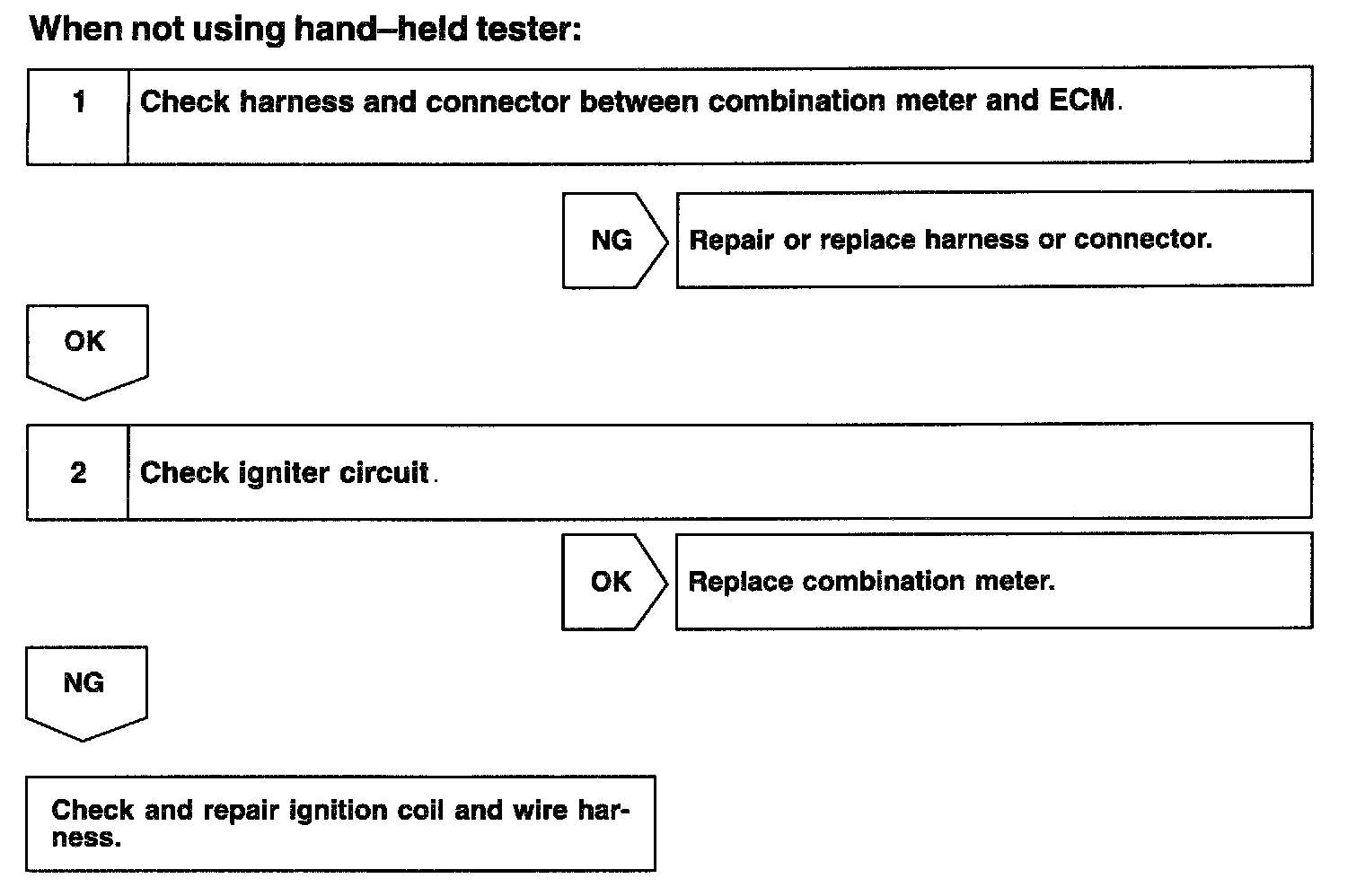

Step 1 - 2:
When Not Using Hand-held Tester
