Connector Code Lists

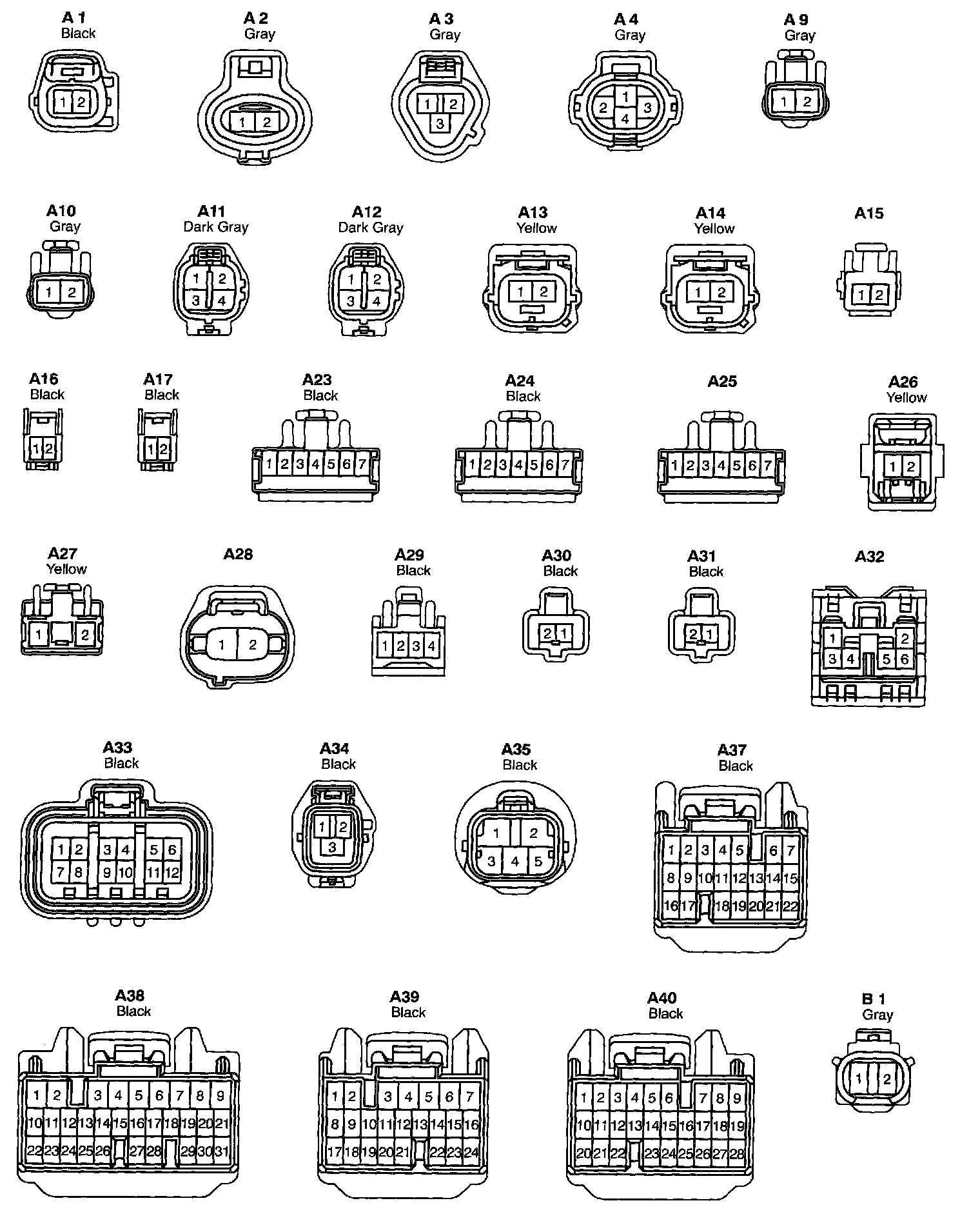

Connector View A1 - B1:

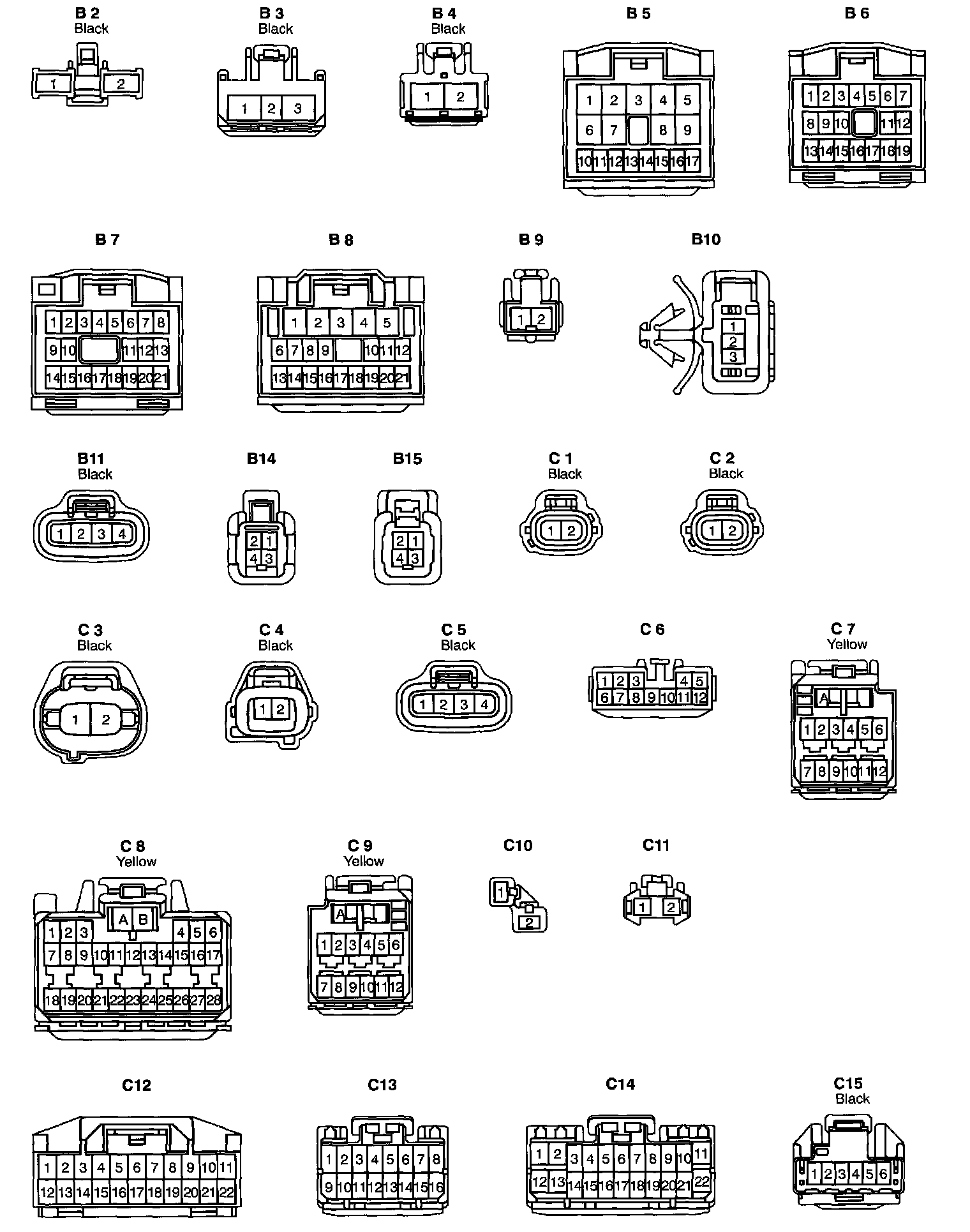

Connector View B2 - C15:

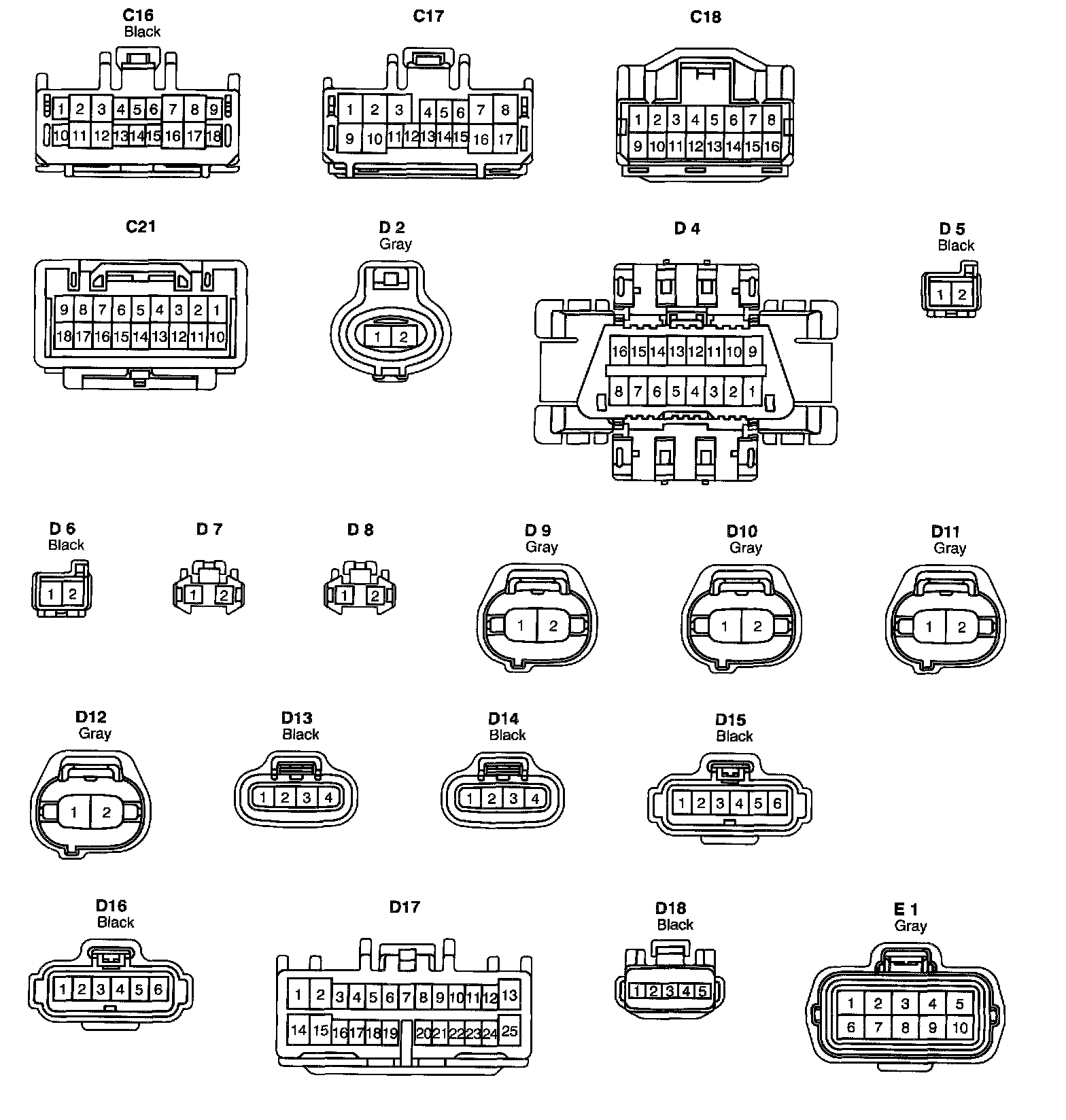

Connector View C16 - E1:

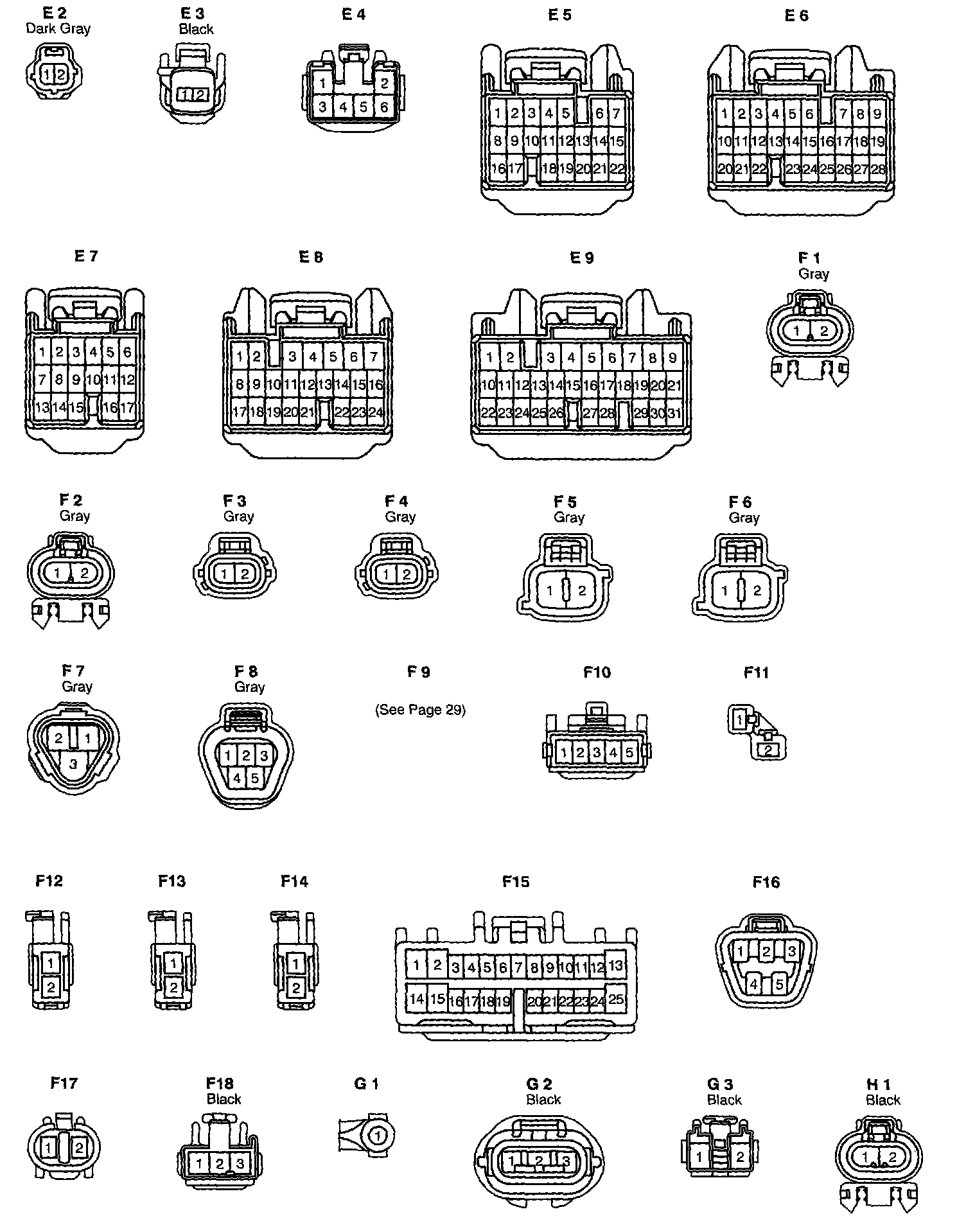

Connector View E2 - H1:

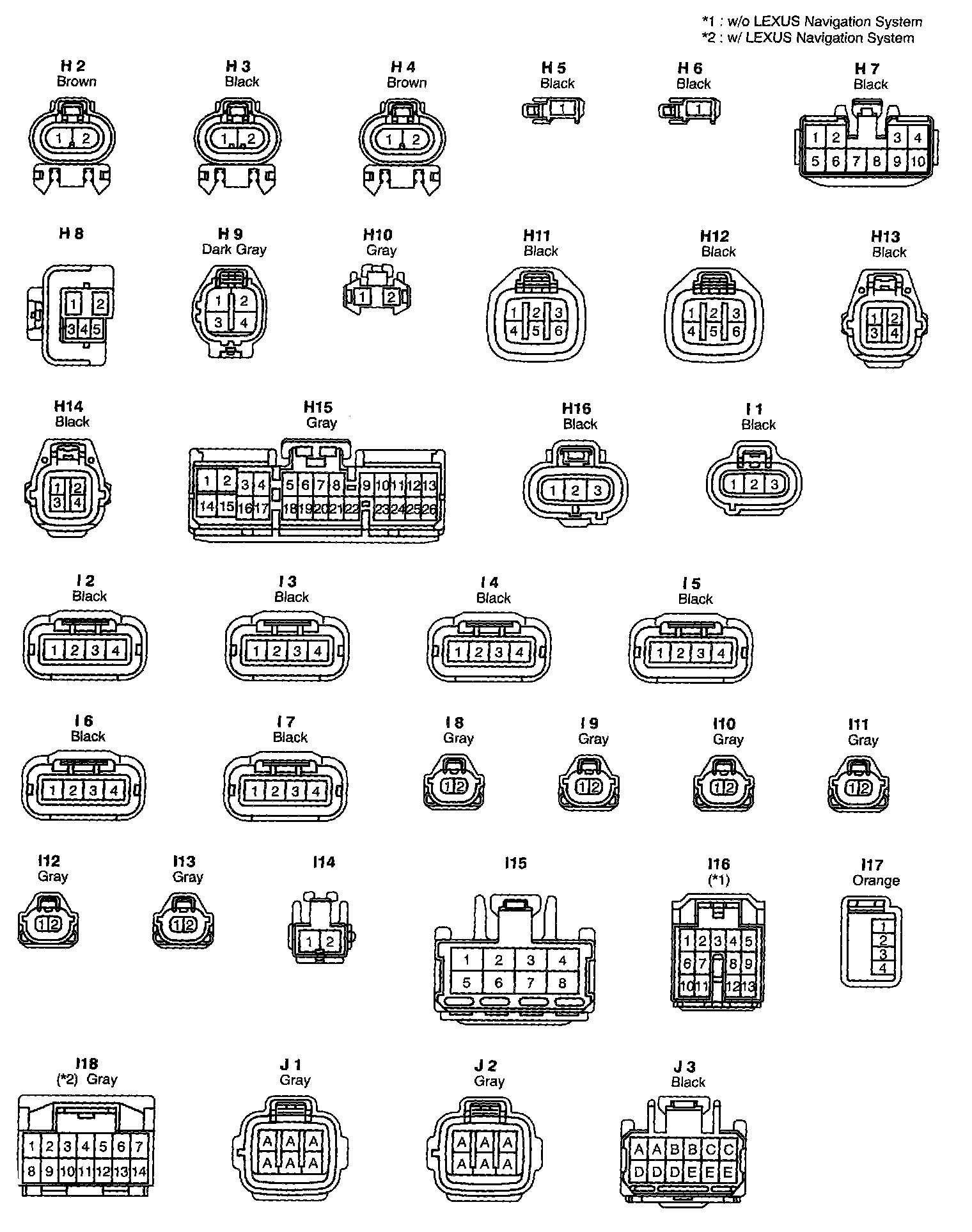

Connector View H2 - J3:

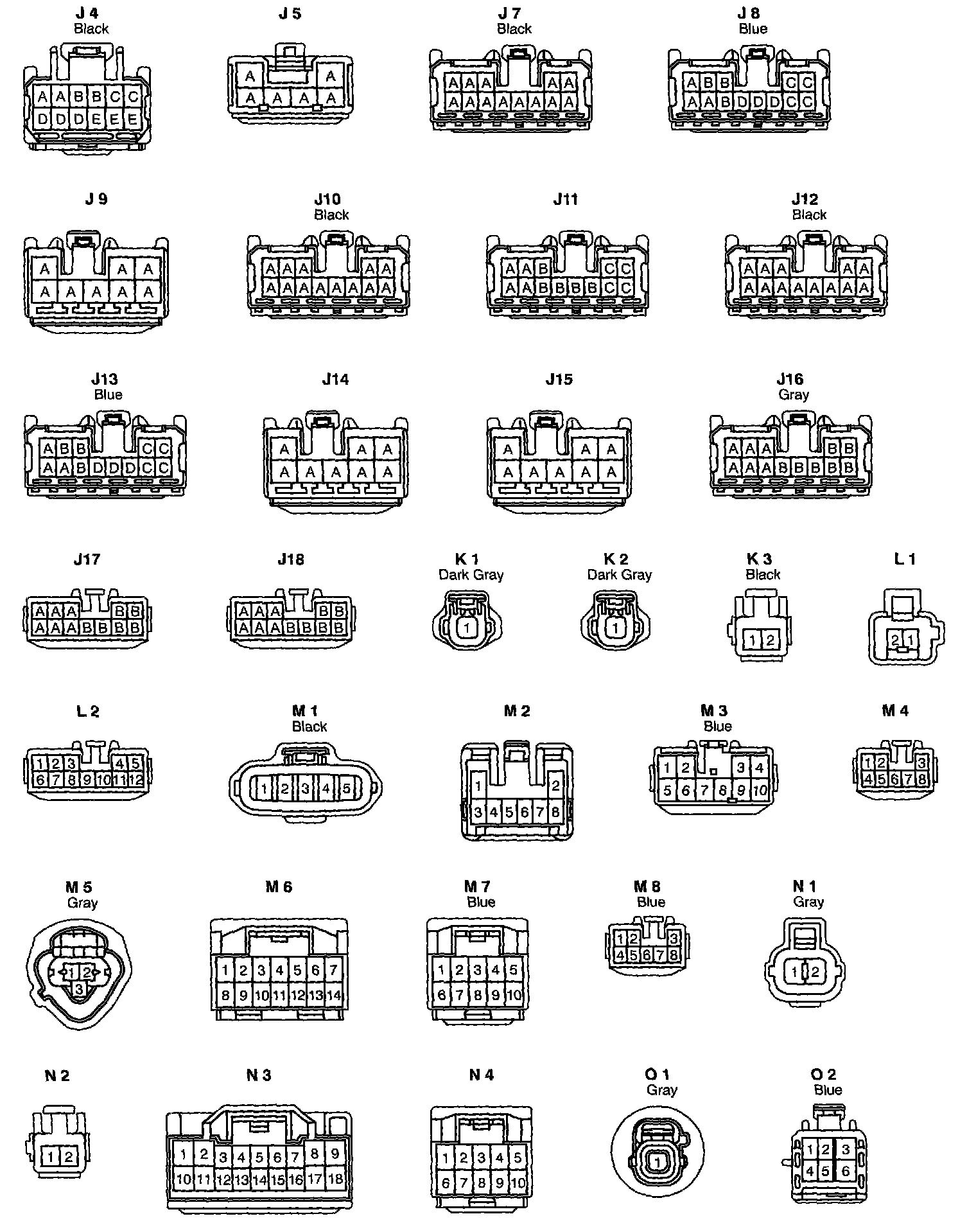

Connector View J4 - O2:

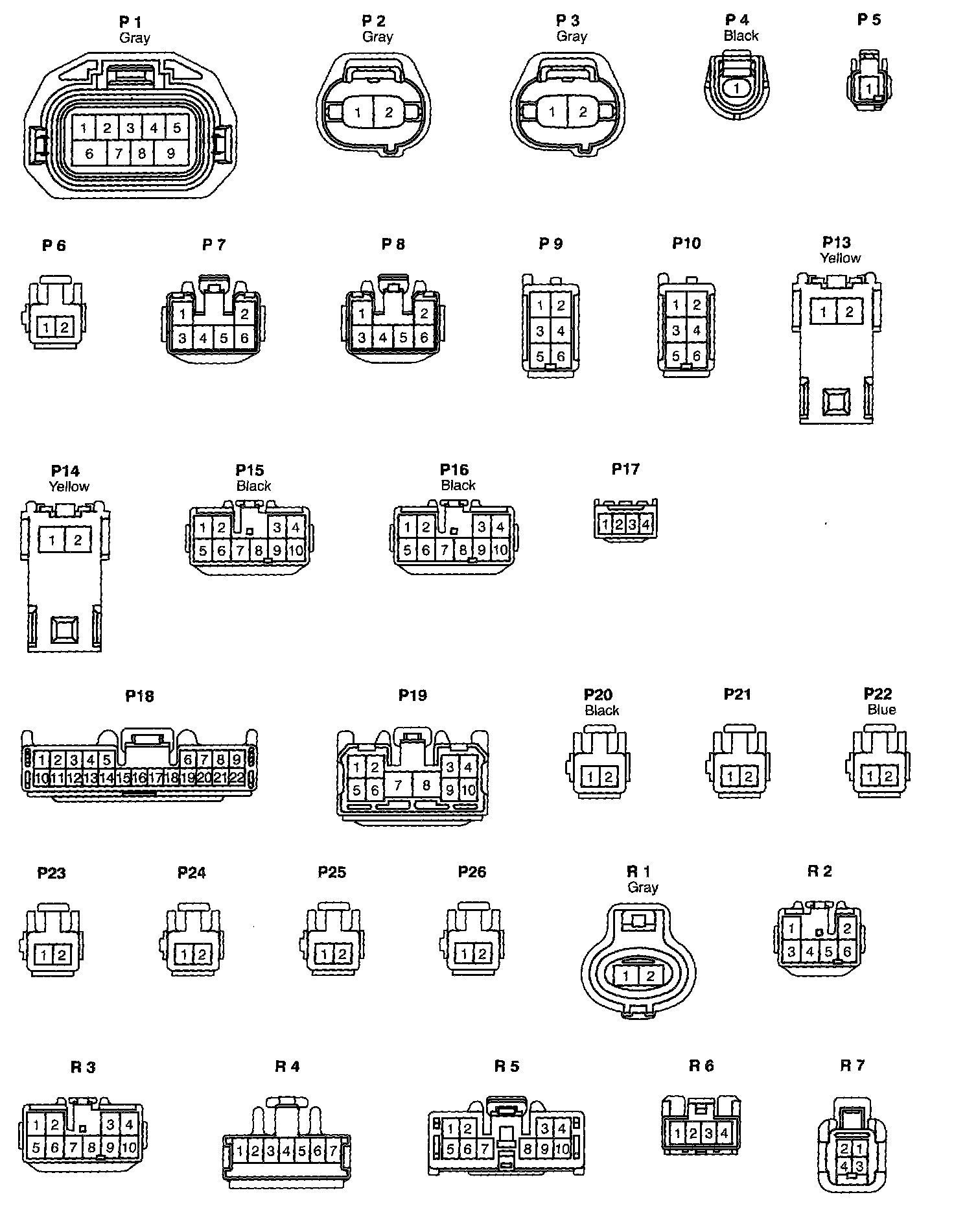

Connector View P1 - R7:

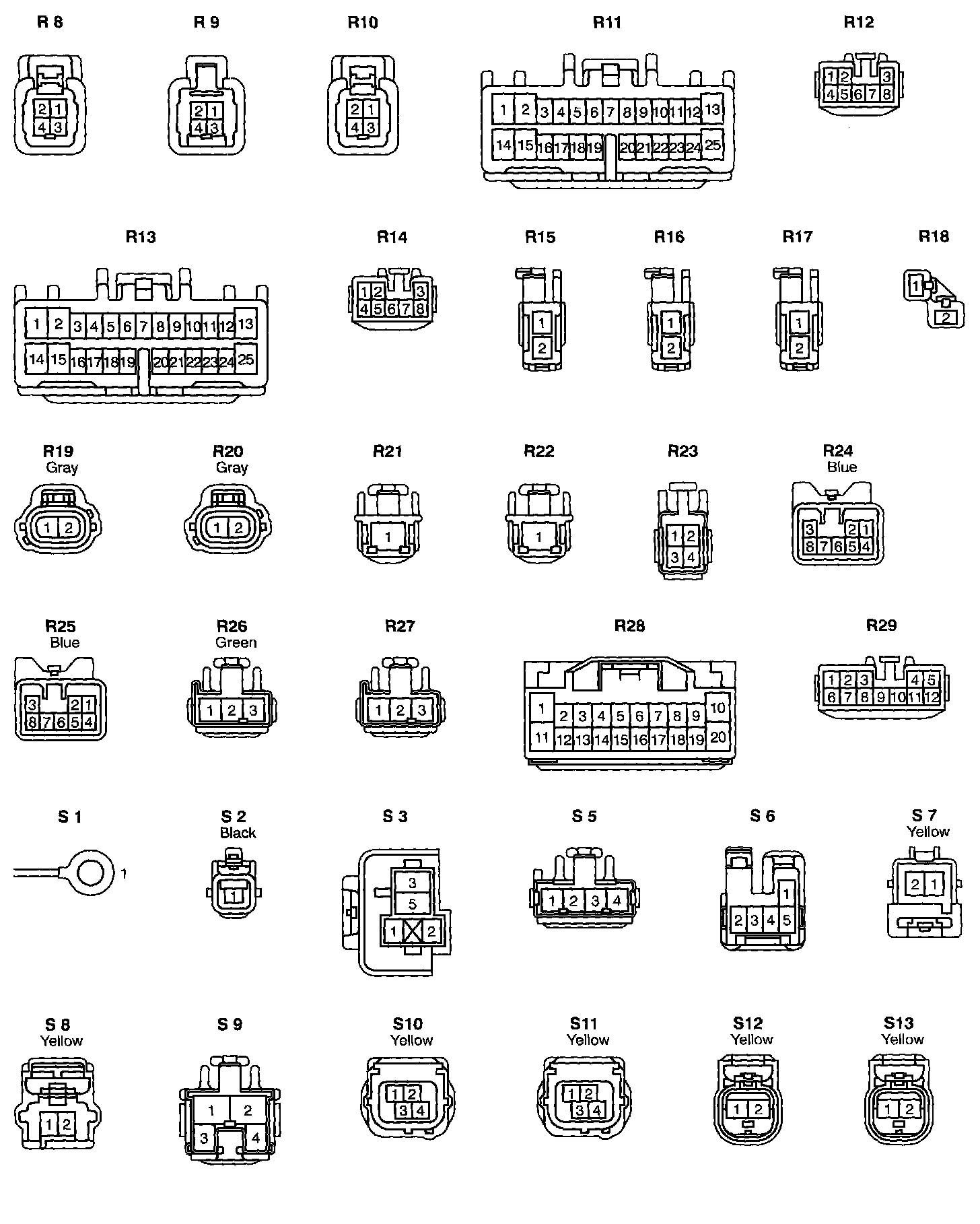

Connector View R8 - S13:

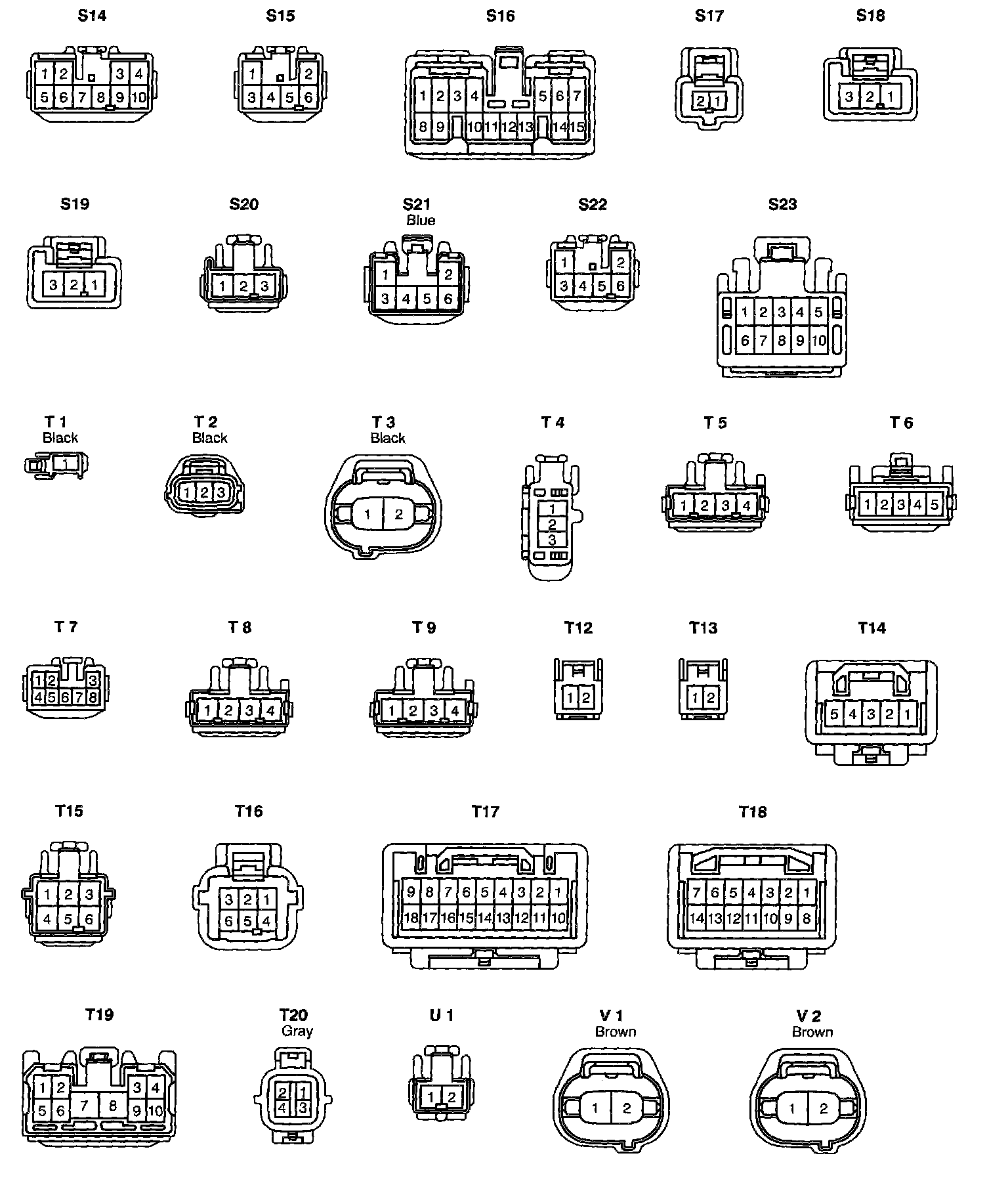

Connector View S14 - V2:

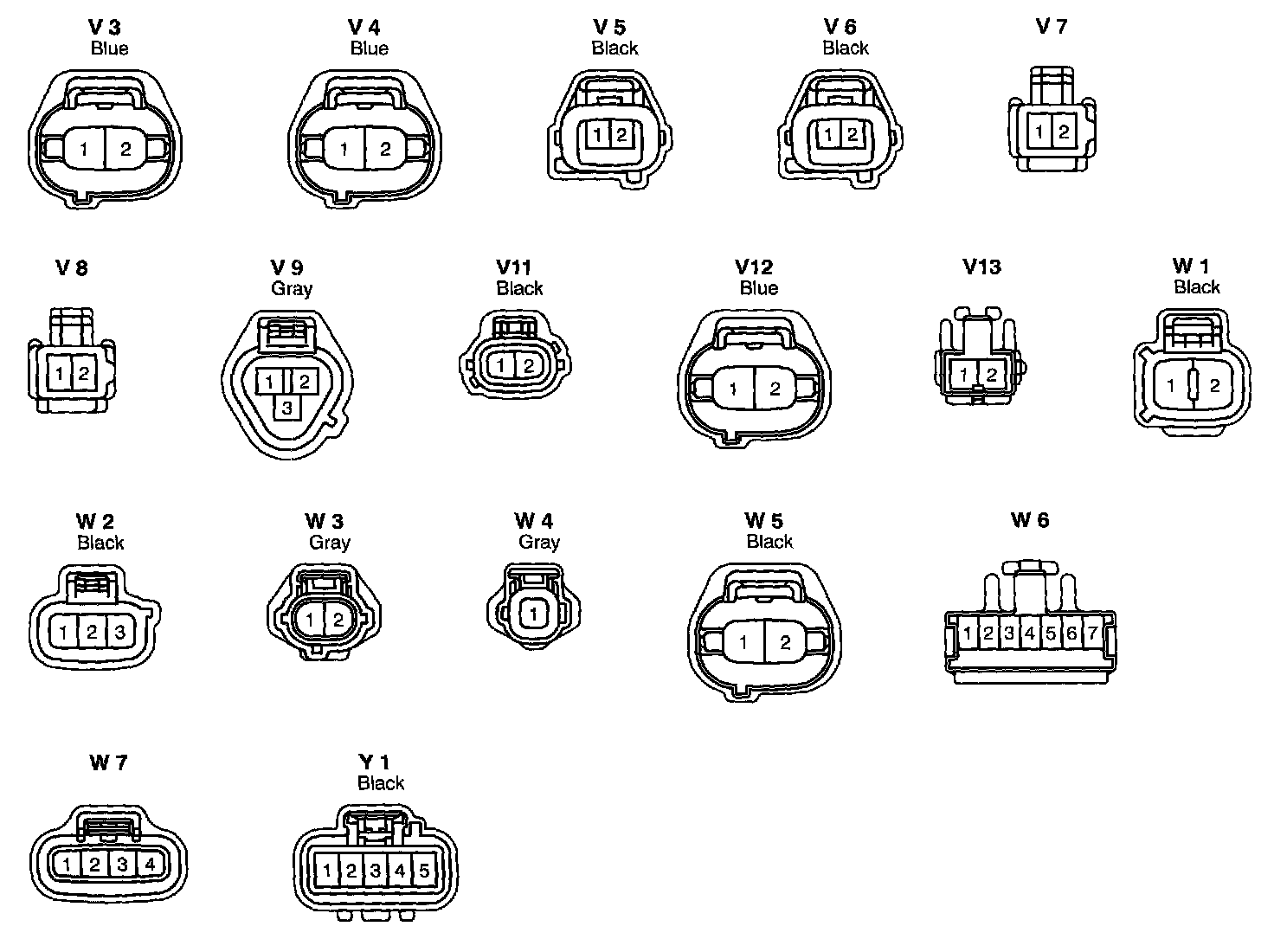

Connector View V3 - Y1:
