ECU Power Source Circuit

CIRCUIT DESCRIPTION

The ECU power source supplies power to the actuator and sensors, etc., when terminal GND and the cruise control ECU case are grounded.

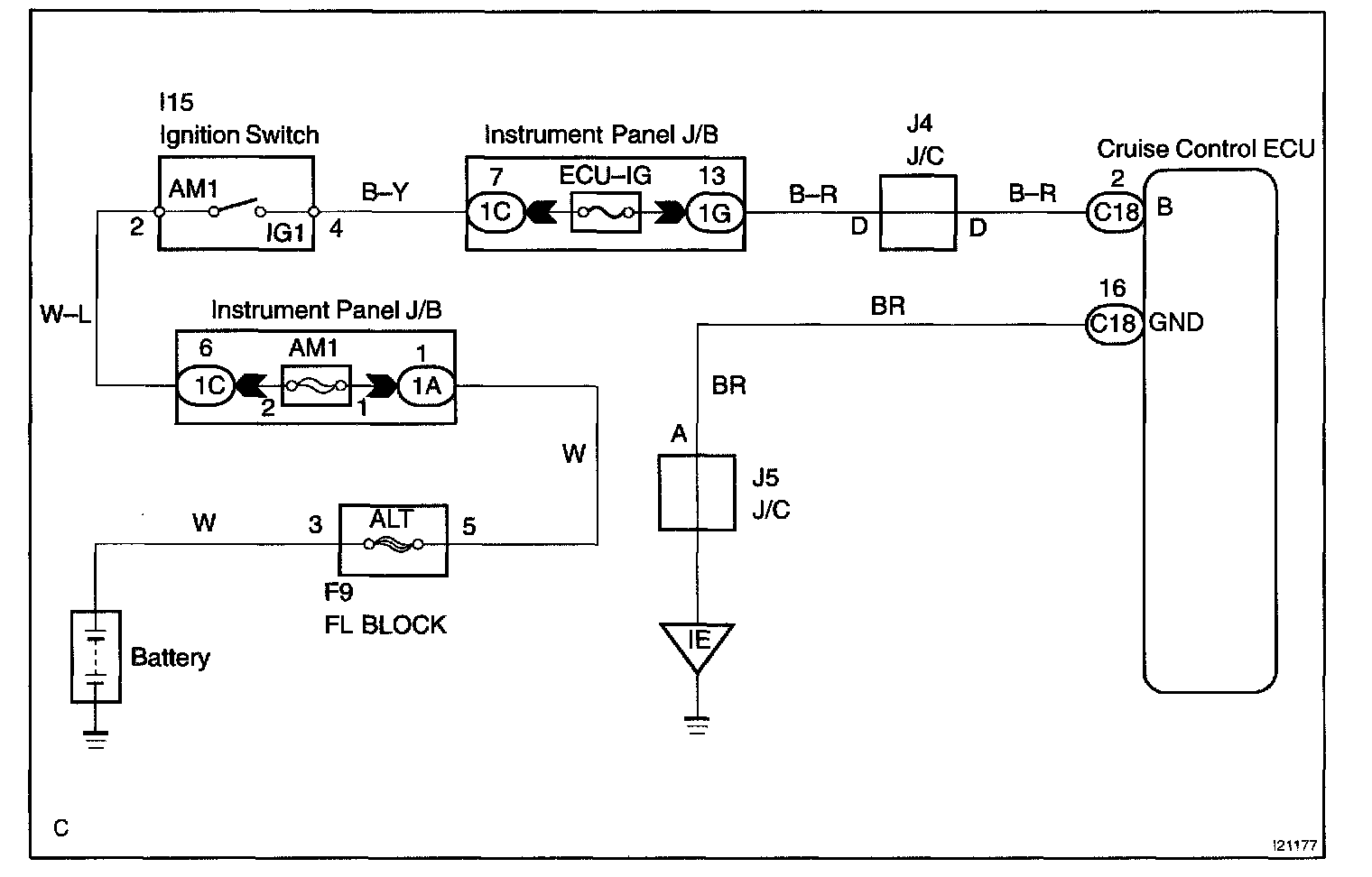

Wiring Diagram:

Step 1 - 2:

Step 2 (Continued) - 3:

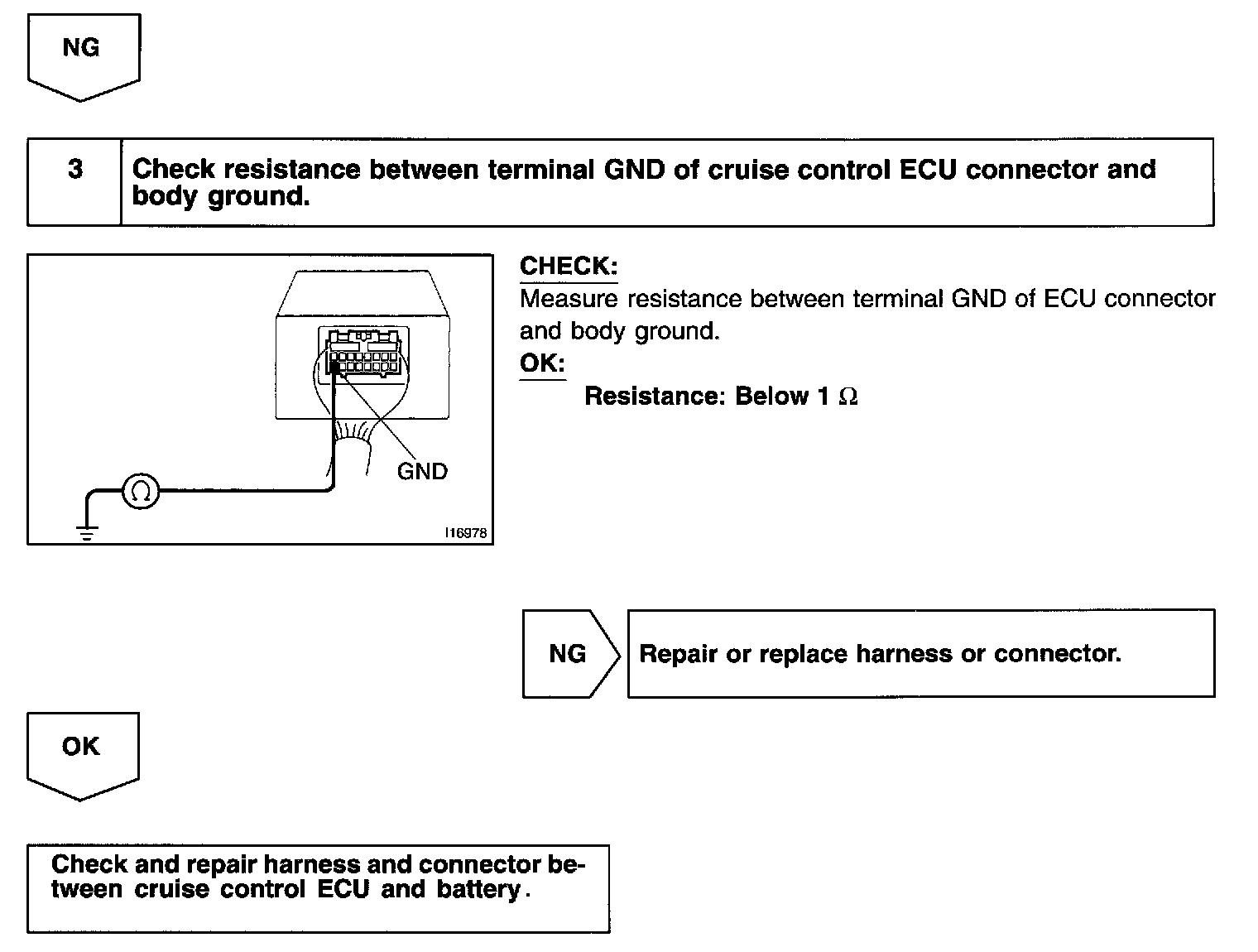

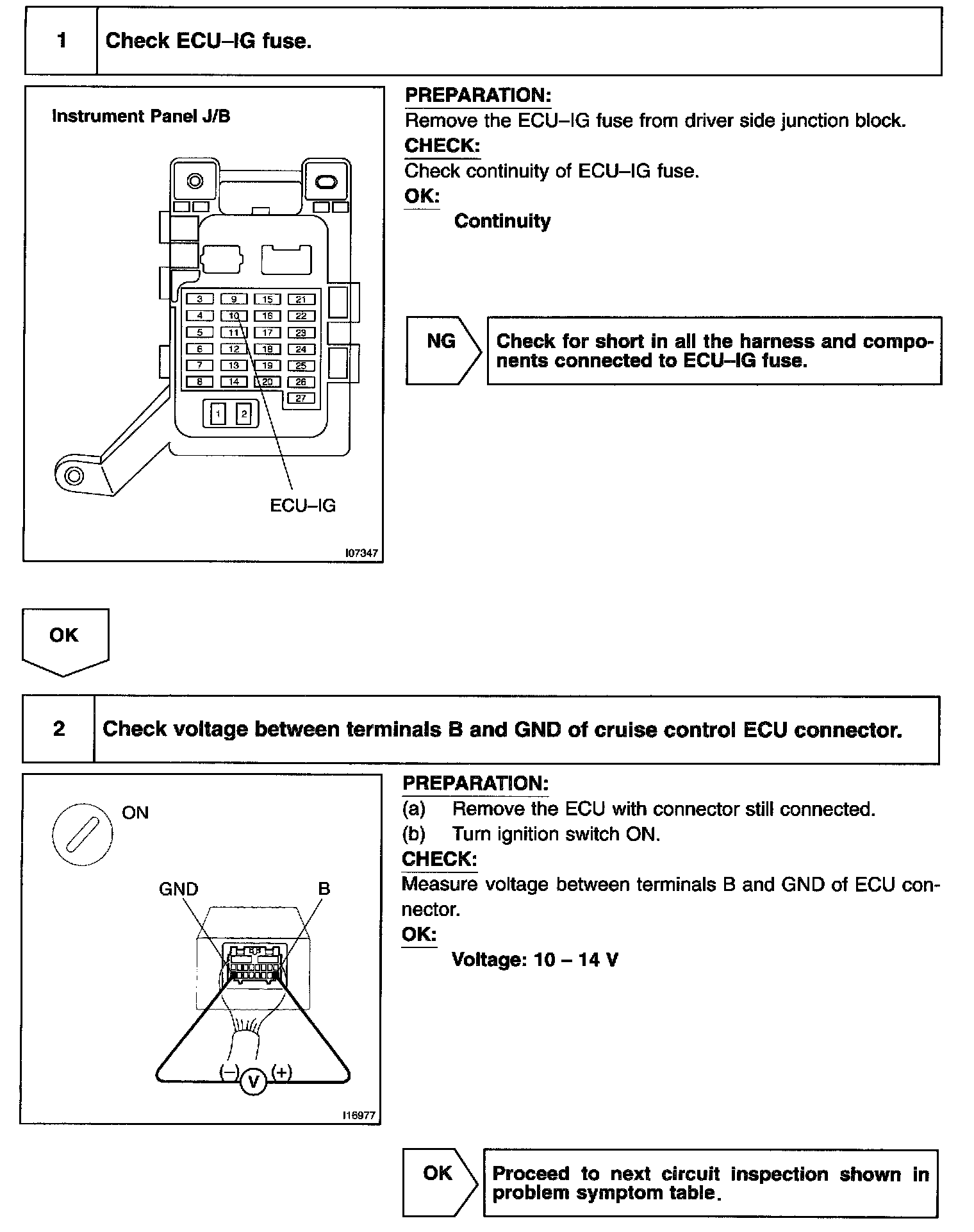

INSPECTION PROCEDURE
