VSC Buzzer Circuit
VSC Buzzer Circuit
CIRCUIT DESCRIPTION
The VSC buzzer sounds during VSC operation.

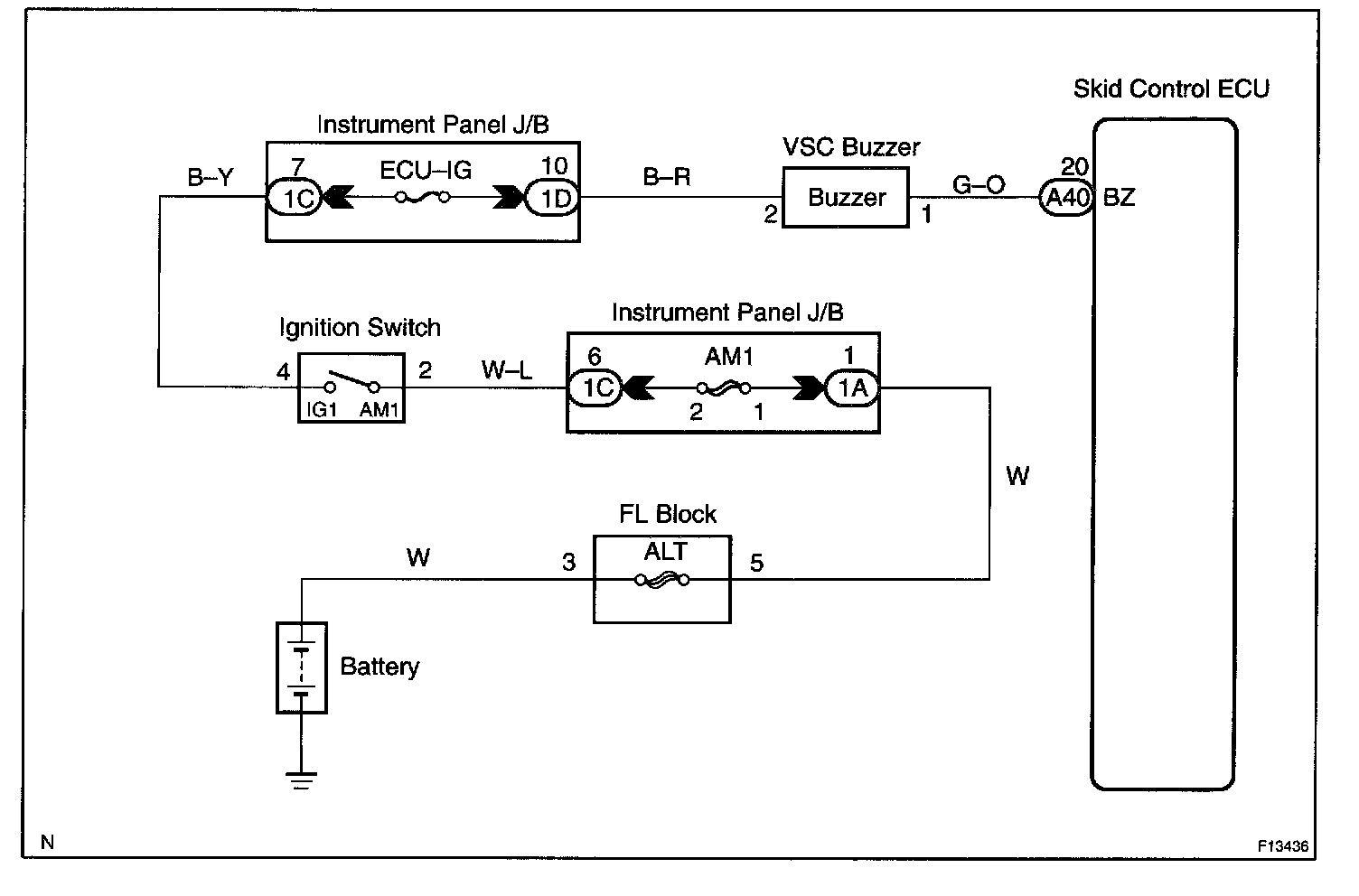

Wiring Diagram:

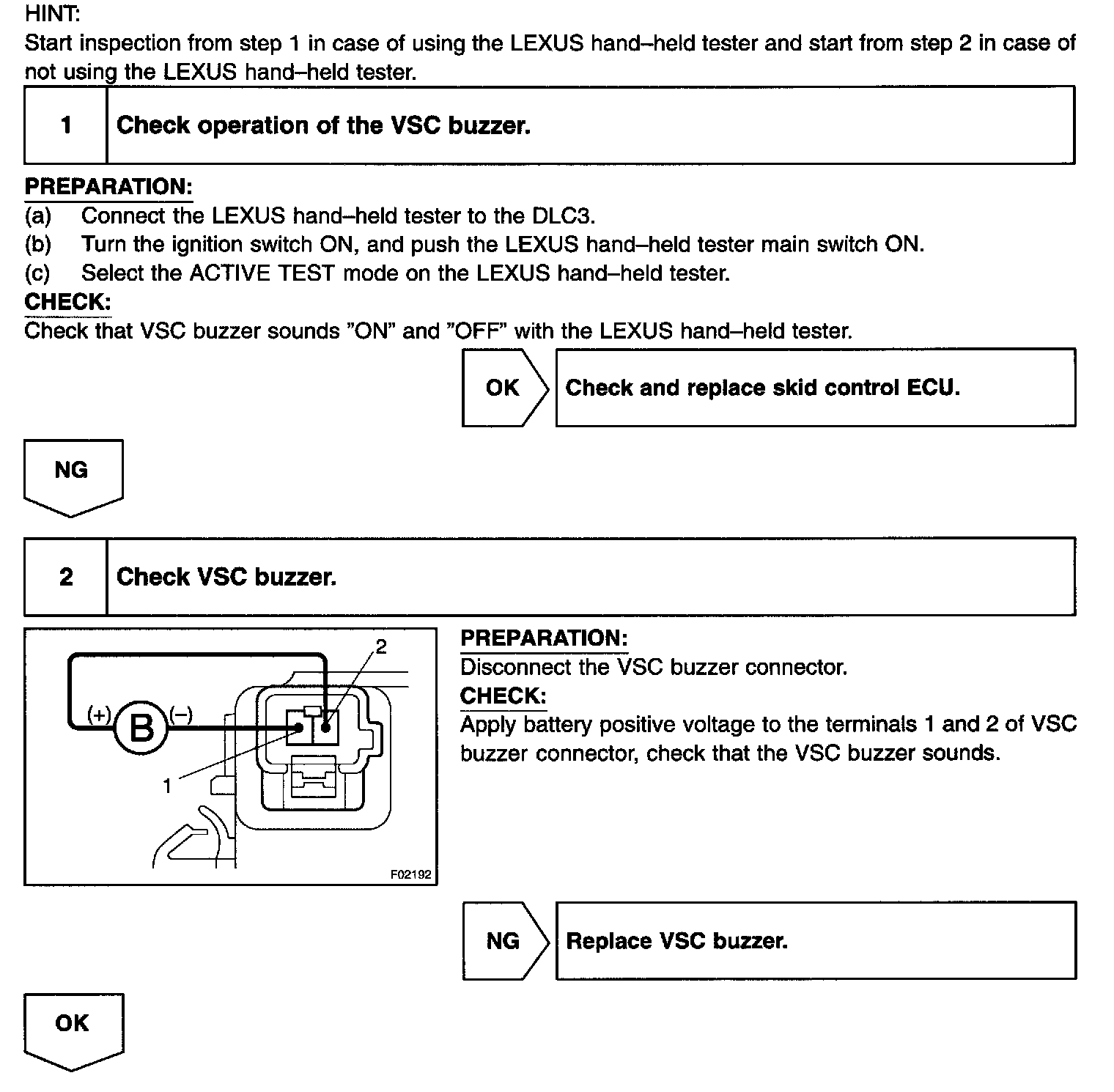

Step 1 - 2:

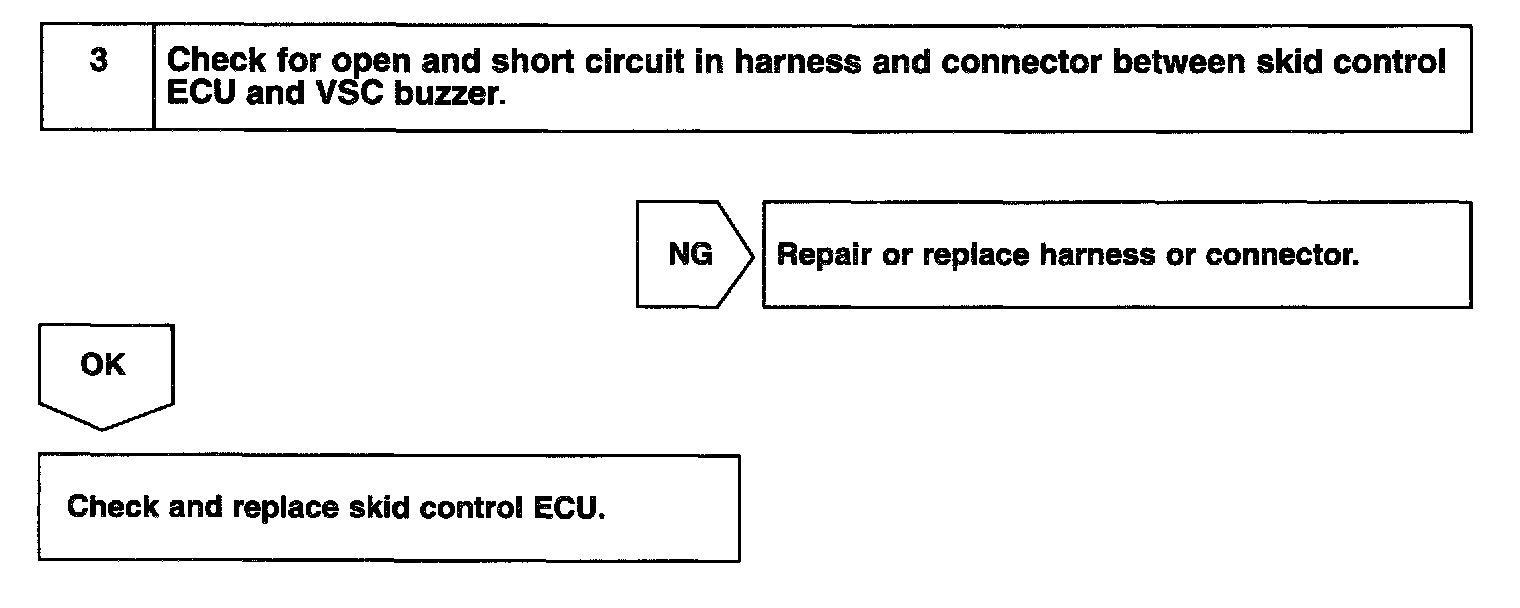

Step 3:
INSPECTION PROCEDURE
