Slip Indicator Light Circuit
Slip Indicator Light Circuit
CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC & VSC operation.

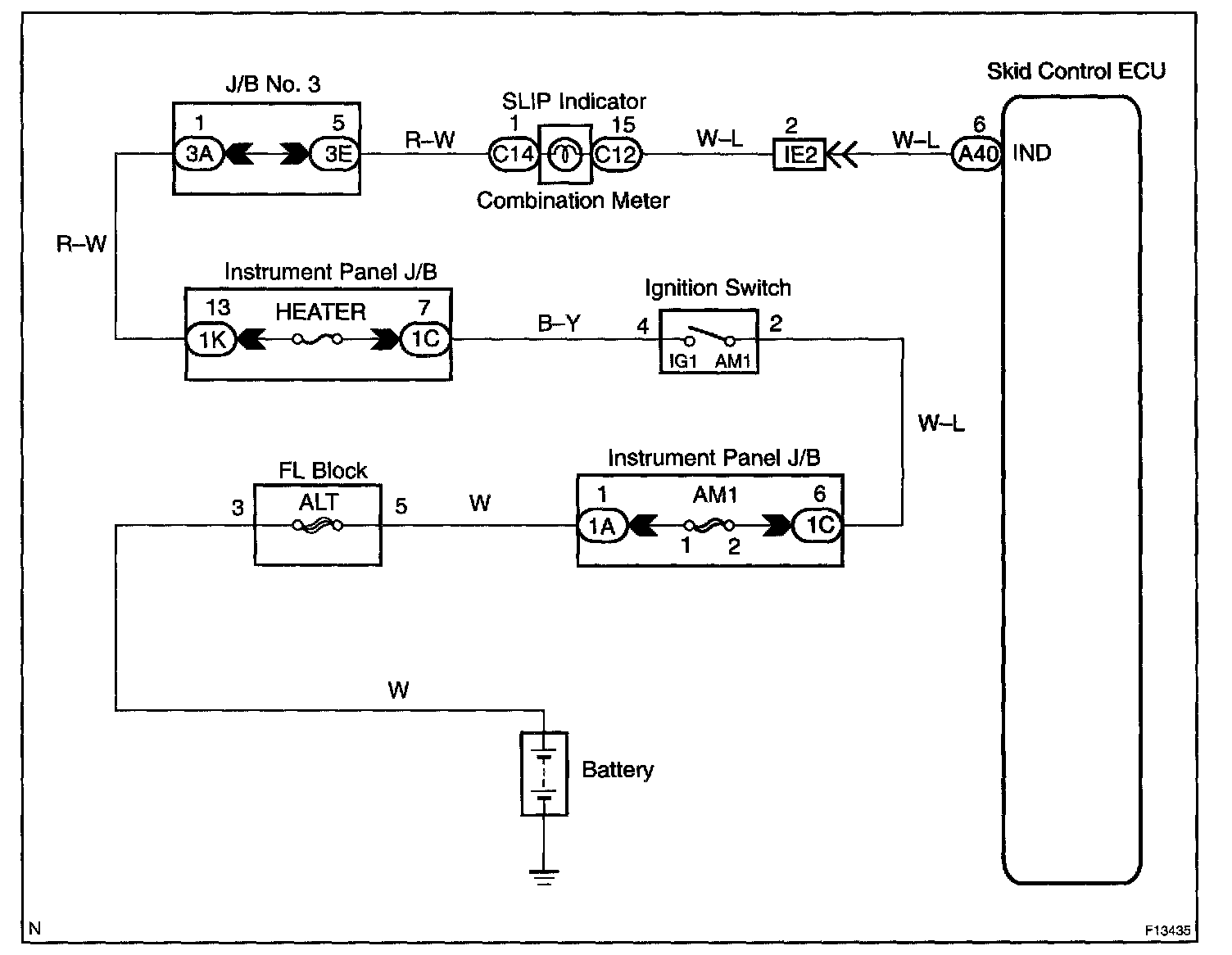

Wiring Diagram:
Step 1 - 3:

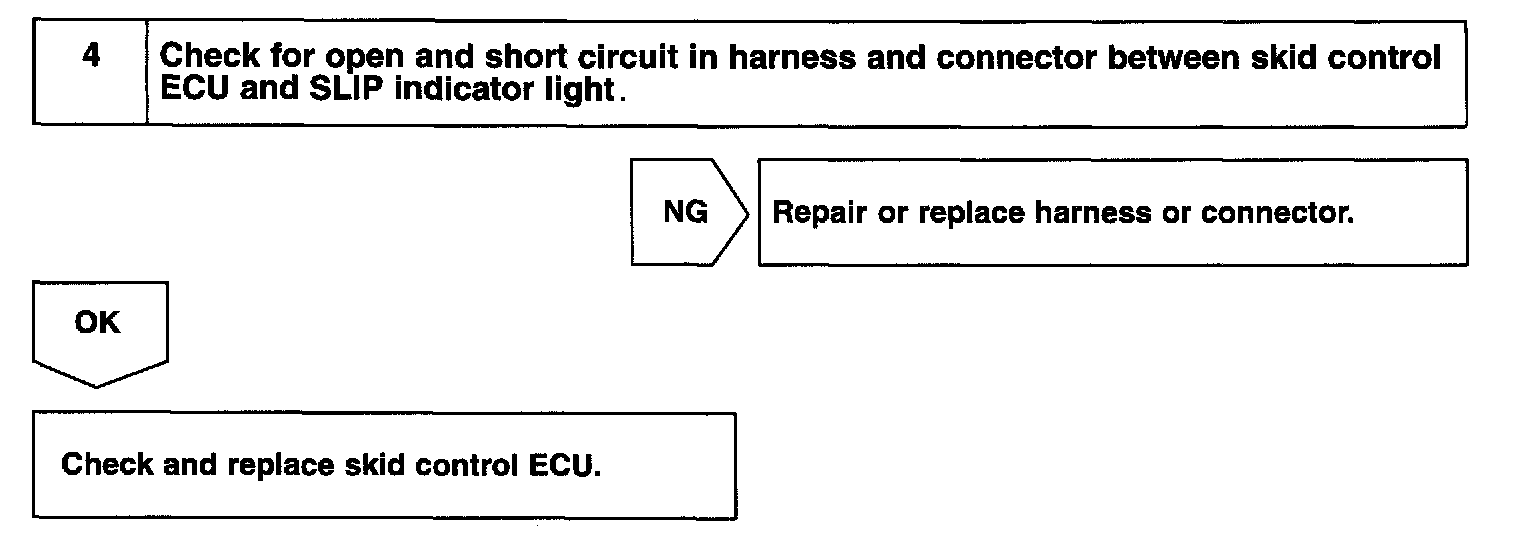

Step 4:

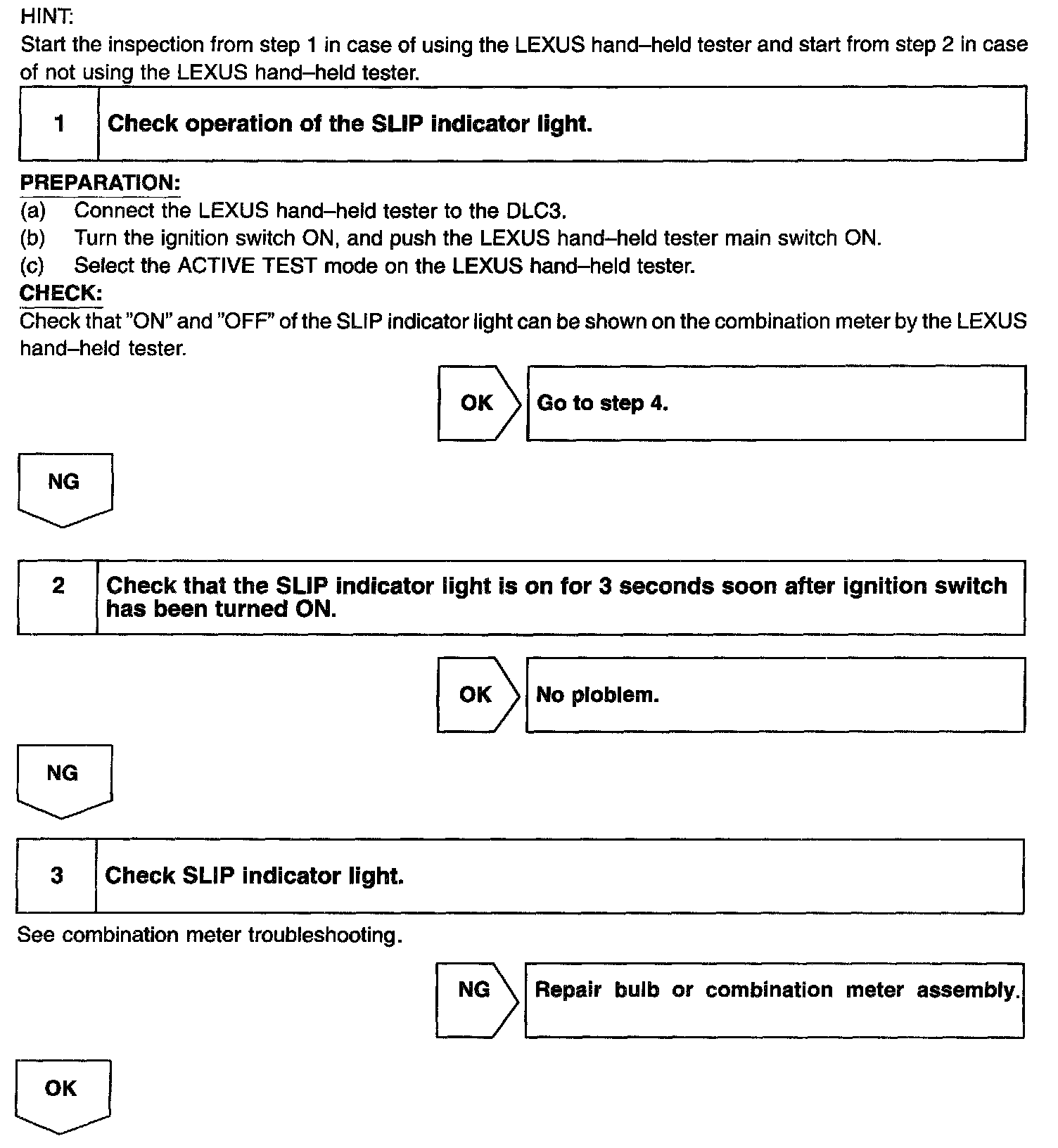

INSPECTION PROCEDURE
