M1, M2 Set Switch Circuit

Wiring Diagram:

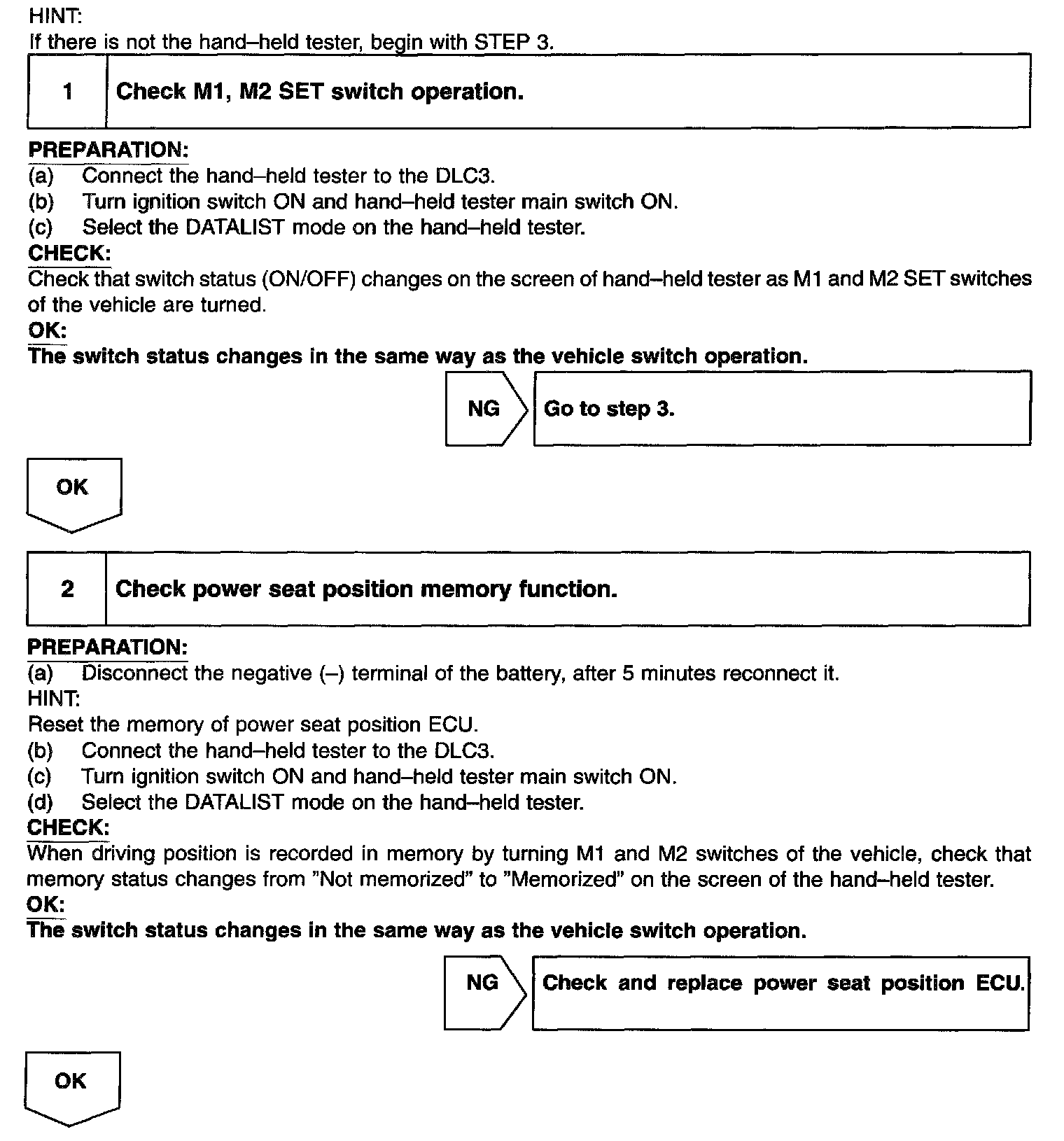

Step 1 - 2:

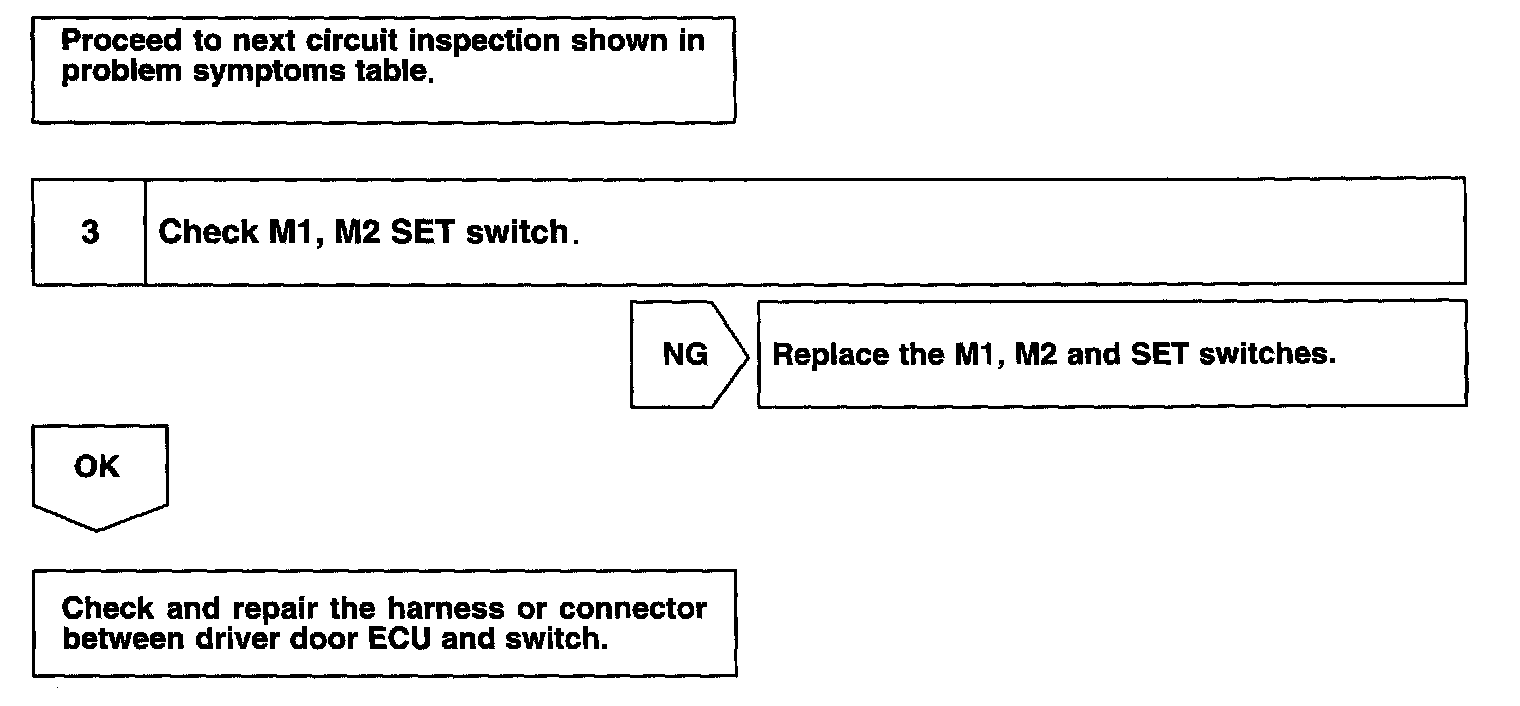

Step 2 (Continued) - 3:




INSPECTION PROCEDURE
