Frame: Application and ID

FRAME NUMBER

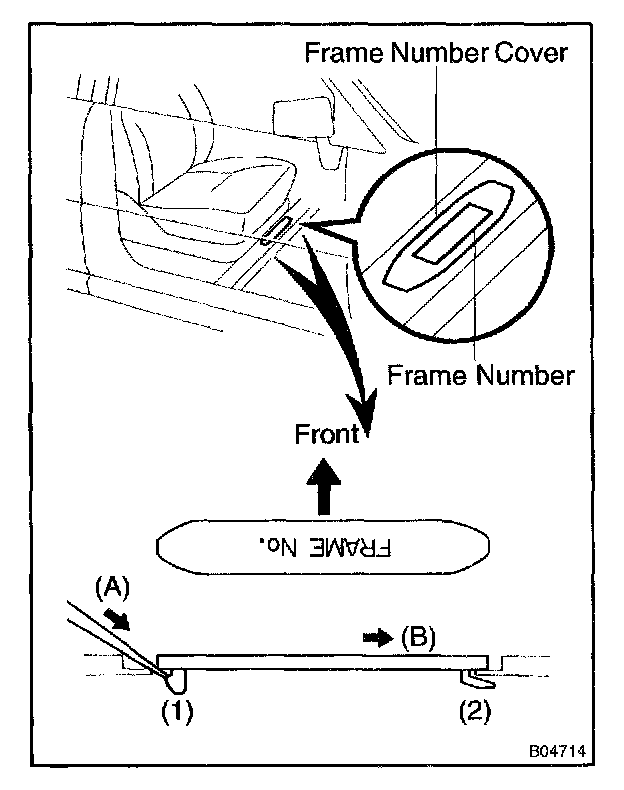

The frame number is stamped on the front floor pan under the frame number cover.

Remove the frame number cover.
Insert a screwdriver between the frame number cover and the carpet to push the claw (A) and disen gage the claw on the side of (1), then slide the frame number cover to (B) direction to disengage the claw on the side of (2).
